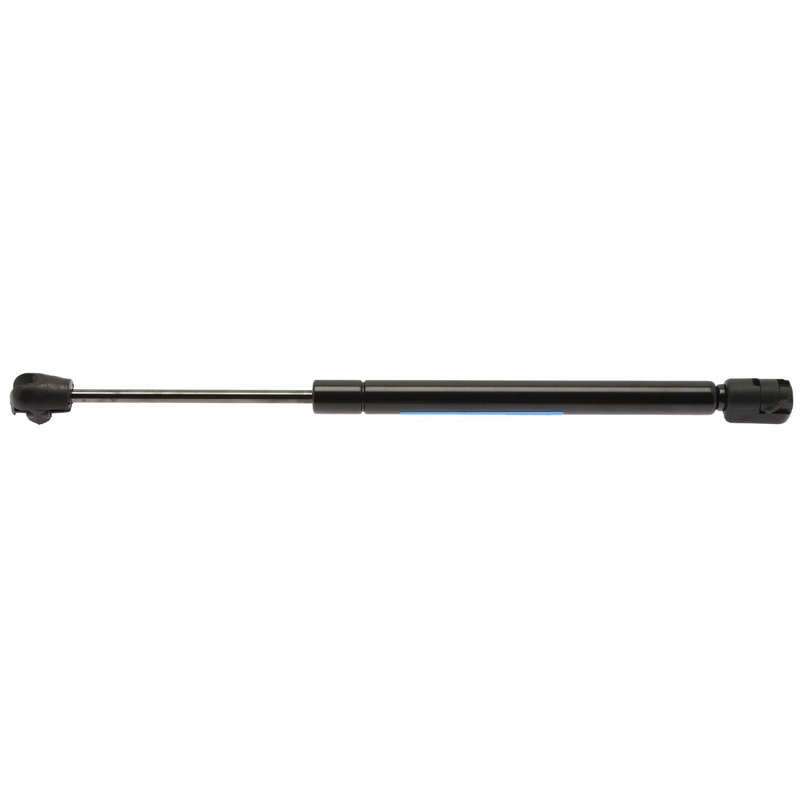

StrongArm 6303 Hood Lift Support

StrongArm Hood Lift Support for Chrysler and Dodge Vehicles

The StrongArm 6303 Hood Lift Support is engineered specifically for Chrysler and Dodge models including the 300, Charger, and Magnum. Designed to provide reliable hood support, this part ensures smooth and controlled hood operation for your vehicle.

• Compressed length: 8.5 inches
• Extended length: 12.41 inches
• Cylinder outside diameter: 15.0 mm
• Stroke length: 3.91 inches
• Maximum force: 78.0 N
• Steel outer cylinder with black finish
• Ball socket ends: 10mm observatory and nylon
• Materials include rubber and Teflon components
• Specific fit for Chrysler 300, Dodge Charger, and Magnum

Technical Details and Construction

The StrongArm 6303 hood lift support features a durable steel outer cylinder finished in black for corrosion resistance and longevity. With a compressed length of 8.5 inches and an extended length of 12.41 inches, it provides a stroke length of 3.91 inches to facilitate smooth hood lifting and holding. The cylinder diameter measures 15.0 mm, while the inner shaft diameter is 6.0 mm, ensuring structural integrity under load. This lift support uses ball socket ends—one observatory and one nylon—both sized at 10mm, allowing secure attachment points that reduce wear and noise. The inclusion of rubber and Teflon materials enhances sealing and reduces friction during operation. Notably, this model does not include an internal rebound spring, focusing on consistent force delivery up to 78 Newtons.

Compatible Vehicles and Applications

This hood lift support is designed specifically for Chrysler and Dodge vehicles, including the Chrysler 300, Dodge Charger, and Dodge Magnum. It is intended to replace factory lift supports that have lost pressure or functionality, restoring proper hood operation and safety.

• Supports hood weight for safe and controlled opening
• Replaces worn or leaking factory lift supports
• Eliminates hood slamming or sudden closure
• Prevents hood from falling unexpectedly during maintenance
• Improves ease of hood lifting and holding position

Installation Notes and Tips

Installation of the StrongArm 6303 hood lift support requires removal of the old lift support and attachment of the new unit using the 10mm ball socket ends. Ensure the ball sockets are securely snapped onto the mounting points on the hood and frame. It is recommended to replace lift supports in pairs to maintain balanced hood operation. Use appropriate tools to avoid damage to the ball sockets or mounting points during installation.

Quality Assurance and Warranty

StrongArm hood lift supports are manufactured to meet OEM specifications for fit and function. The steel construction and quality materials provide durability and consistent performance. While specific warranty details are not provided, StrongArm products typically adhere to industry standards for replacement parts, ensuring reliable service life when installed correctly.
