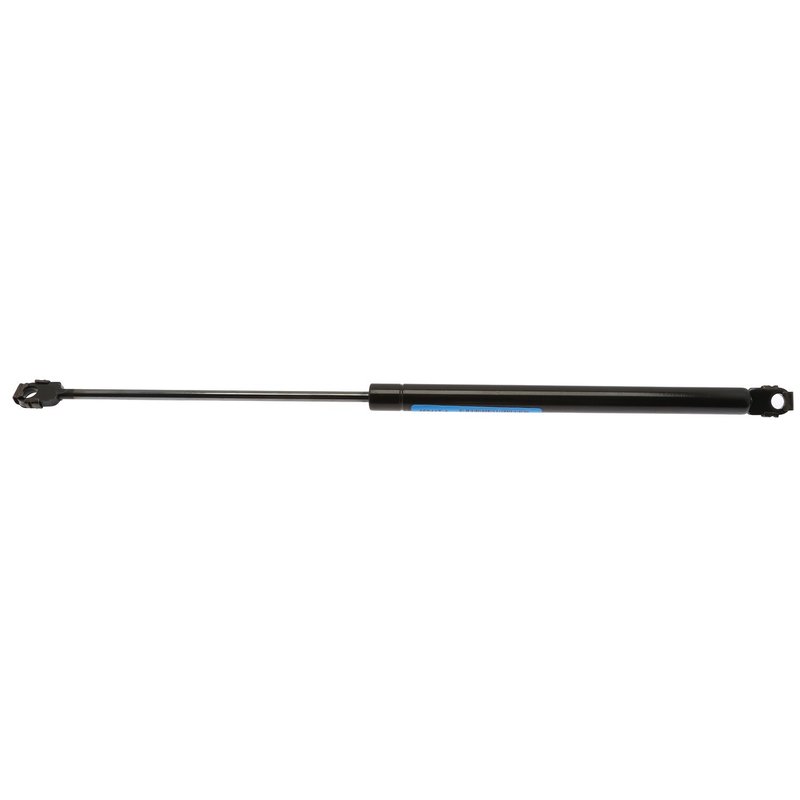

StrongArm 6341 Hood Lift Support

StrongArm Hood Lift Support for BMW Models

The StrongArm 6341 Hood Lift Support is engineered specifically for select BMW vehicles, including the 318i, 318is, 323i, 323is, 325is, 328i, 328is, and M3 models. Designed to provide reliable hood support, this part ensures smooth and controlled hood operation for maintenance and inspection tasks.

• Compressed length: 9.93 inches
• Extended length: 16.18 inches
• Stroke length: 6.25 inches
• Cylinder outside diameter: 15.0 mm
• Inner shaft diameter: 6.0 mm
• Steel outer cylinder with black finish
• Blade ends with retainer and 0.375-inch diameter holes
• Maximum force rating: 65.0 lbs
• Materials include rubber and Teflon components for durability

Technical Details and Construction

The StrongArm 6341 hood lift support features a robust steel outer cylinder finished in black to resist corrosion and wear. Its precise dimensions, including a compressed length of 9.93 inches and an extended length of 16.18 inches, provide the correct fit and function for the specified BMW models. The lift support uses blade ends with retainers on both sides, each with a 0.375-inch diameter hole, ensuring secure attachment points. Internal components made from rubber and Teflon contribute to smooth operation and longevity. This specific fitment part is designed without an internal rebound spring, focusing on consistent force delivery up to 65 pounds to hold the hood firmly in place.

Compatible BMW Models and Applications

This hood lift support is compatible with the following BMW vehicles: 318i, 318is, 323i, 323is, 325is, 328i, 328is, and M3. It is intended for use as a replacement part to restore proper hood lift function, improving safety and convenience during engine access.

• Supports hood weight for safe opening and closing
• Replaces worn or failing hood lift supports
• Eliminates hood slamming or sudden drops
• Prevents hood vibration while driving
• Restores factory-spec hood operation

Installation Notes and Tips

Installation of the StrongArm 6341 hood lift support requires matching the blade ends to the existing mounting points on the hood and frame. Ensure the retainers are properly seated in the 0.375-inch diameter holes for secure attachment. It is recommended to replace lift supports in pairs to maintain balanced hood operation. Use appropriate tools to avoid damage to mounting hardware and verify smooth hood movement after installation.

Quality Assurance and Warranty

StrongArm parts are manufactured to meet OEM specifications for fit and function. The 6341 hood lift support undergoes quality control checks to ensure durability and consistent performance. While specific warranty details are not provided, StrongArm products typically adhere to industry standards for replacement automotive components.
