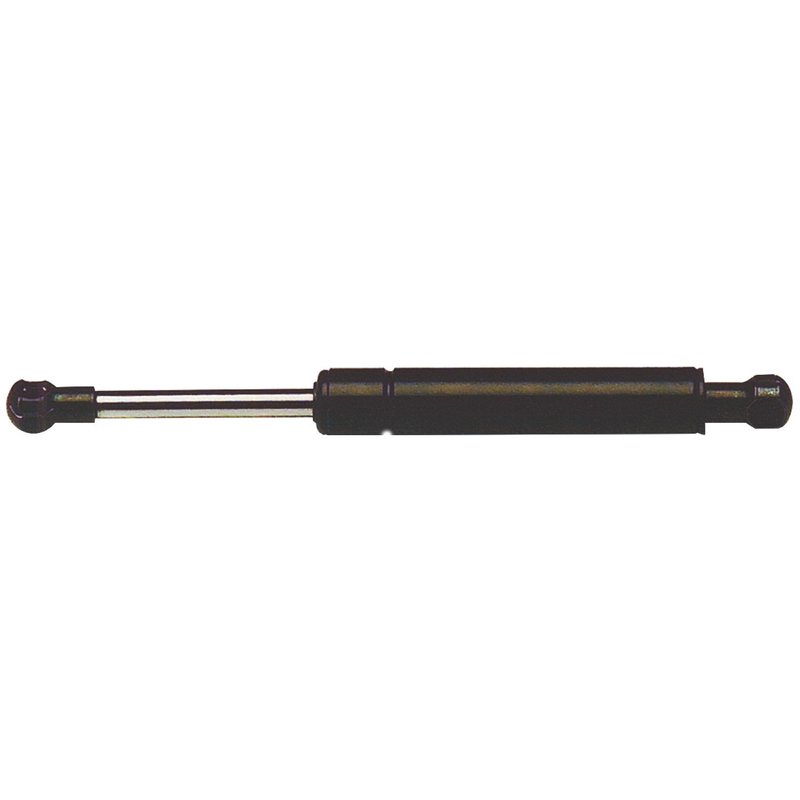

StrongArm 6415 Trunk Lid Lift Support

StrongArm Trunk Lid Lift Support for Lexus LS430

The StrongArm 6415 trunk lid lift support is engineered specifically for the Lexus LS430, providing reliable and consistent performance. Designed to assist in smooth opening and secure holding of the trunk lid, this lift support ensures ease of use and safety.

• Compressed length: 8.95 inches
• Extended length: 12.2 inches
• Cylinder outside diameter: 22.0 mm
• Stroke length: 3.25 inches
• Inner shaft diameter: 10.0 mm
• Steel outer cylinder with black finish
• Ball socket nylon ends, 10 mm on both sides
• Maximum force rating: 152.0 N
• Materials include rubber and Teflon components for durability

Product Details and Specifications

The StrongArm 6415 trunk lid lift support is a specific fit part designed exclusively for the Lexus LS430. Its steel outer cylinder with a black finish offers corrosion resistance and structural strength. The lift support features ball socket nylon ends on both sides, each measuring 10 mm, ensuring secure attachment points and smooth pivoting action. With a compressed length of 8.95 inches and an extended length of 12.2 inches, it provides a stroke length of 3.25 inches, delivering the necessary range of motion for proper trunk lid operation. The internal components include rubber and Teflon materials that contribute to reduced friction and extended service life. Rated for a maximum force of 152 Newtons, this lift support offers consistent support for the trunk lid without internal rebound springs.

Common Applications and Problem Solving

• Replaces worn or weak trunk lid lift supports on Lexus LS430 models
• Eliminates trunk lid sagging or difficulty in opening
• Prevents sudden trunk lid closure that can cause injury or damage
• Restores smooth and controlled trunk lid movement
• Addresses noise or binding issues during trunk operation

Installation Notes and Tips

Installation of the StrongArm 6415 trunk lid lift support requires removal of the old lift support by detaching the ball socket ends. The nylon ball sockets on both ends allow for straightforward snap-on installation without special tools. Ensure the lift support is oriented correctly with the compressed length matching factory specifications. It is recommended to replace lift supports in pairs to maintain balanced trunk lid operation. Verify secure attachment of ball sockets to prevent premature wear or detachment.

Quality Assurance and Warranty

StrongArm trunk lid lift supports are manufactured to meet OEM standards for fit and function. The 6415 model undergoes quality control inspections to ensure dimensional accuracy and material integrity. While no internal rebound spring is included, the design focuses on durability and consistent force output. Warranty coverage details should be confirmed with the point of purchase, but StrongArm products typically include limited warranties against defects in materials and workmanship.
