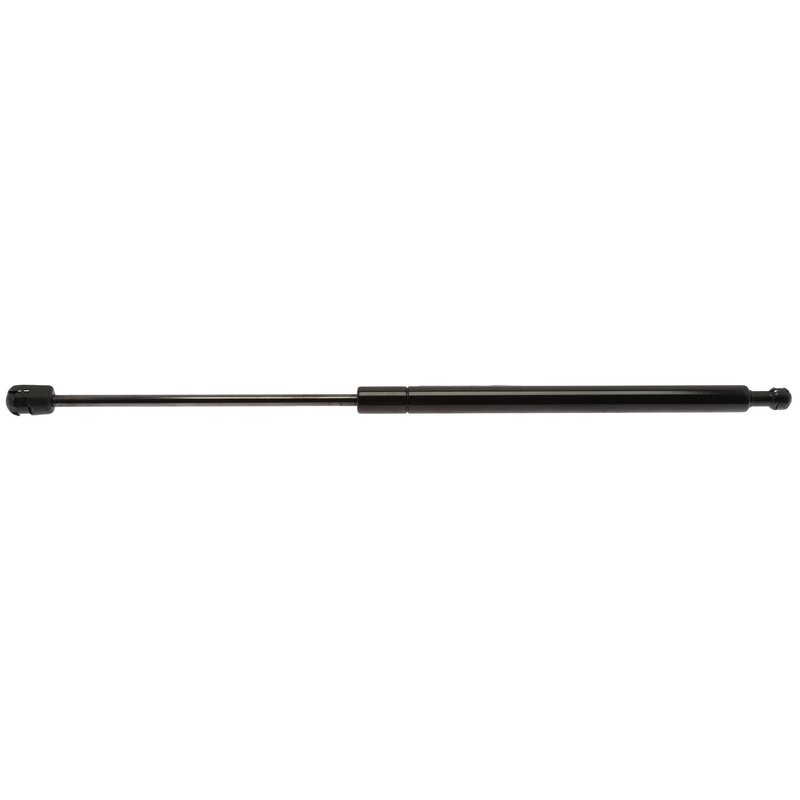

StrongArm 6518 Hatch Lift Support
StrongArm 6518 Lift Support for Hyundai Elantra
StrongArm 6518 is a specific-fit lift support for the 2001-2006 Hyundai Elantra. It restores controlled hood, hatch, or rear glass movement with a pressurized cylinder built for smooth operation and consistent support.
Key Features
- Specific-fit lift support for 2001-2006 Hyundai Elantra
- Extended length: 19.12 in.; compressed length: 12.37 in.
- Stroke length: 6.75 in. for controlled opening and closing travel
- Maximum force rating: 137.0
- Black steel outer cylinder with rubber and Teflon materials
- Ball socket ends: nylon 10mm on one end, steel 10mm on the other
- No internal rebound spring
Detailed Description
StrongArm 6518 is engineered as a direct-fit lift support for Hyundai Elantra models from 2001 through 2006. It uses a pressurized cylinder design to provide steady lift assistance and smoother motion for the hood, hatch, or rear window glass, depending on the vehicle application. The steel outer cylinder, 19.0 mm cylinder outside diameter, and 8.0 mm inner shaft diameter support durable operation, while the nylon and steel 10mm ball socket ends help match the original mounting style. This part cross-references Monroe Shocks & Struts 172286 and 182286 for the same application.
Common Problems This Part Can Address
- Hood, hatch, or rear glass that drops instead of staying open
- Weak or slow lift action during opening
- Uneven support caused by worn gas struts
- Reduced holding force in cold or aging conditions
- Noise or rough movement from a failing lift support
Installation Notes and Tips
Verify the vehicle application before ordering by matching the 2001-2006 Hyundai Elantra fitment and the 10mm ball socket end style. Inspect the mounting points for wear or damage before installation, and confirm the support moves freely through its stroke. For balanced operation and consistent support, replace lift supports in pairs when servicing the vehicle.
Quality Assurance
StrongArm lift supports are custom engineered and manufactured beyond industry standards to deliver smoother operation and longer service life. Part number 6518 is built to meet the fitment and performance requirements for the listed Hyundai Elantra applications.
| Brand | StrongArm |
|---|---|
| Part Number | 6518 |
| Compressed Length | 12.37 |
| Cylinder Outside Diameter | 19.0 |
| End 1 Type | Ball Socket (Nylon) 10mm |
| End 2 Type | Ball Socket (Steel) 10mm |
| Extended Length | 19.12 |
| Inner Shaft Diameter | 8.0 |
| Internal Rebound Spring | No |
| Materials | Rubber |
| Materials | Teflon |
| Maximum Force | 137.0 |
| Outer Cylinder Color | Black |
| Outer Cylinder Material | Steel |
| Stroke Length | 6.75 |
| Universal Or Specific Fit | Specific |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2006 | Hyundai | Elantra | Hatchback | N/A | |
| 2005 | Hyundai | Elantra | Hatchback | N/A | |
| 2004 | Hyundai | Elantra | Hatchback | N/A | |
| 2003 | Hyundai | Elantra | Hatchback | N/A | |
| 2002 | Hyundai | Elantra | Hatchback | N/A | |
| 2001 | Hyundai | Elantra | Hatchback | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
