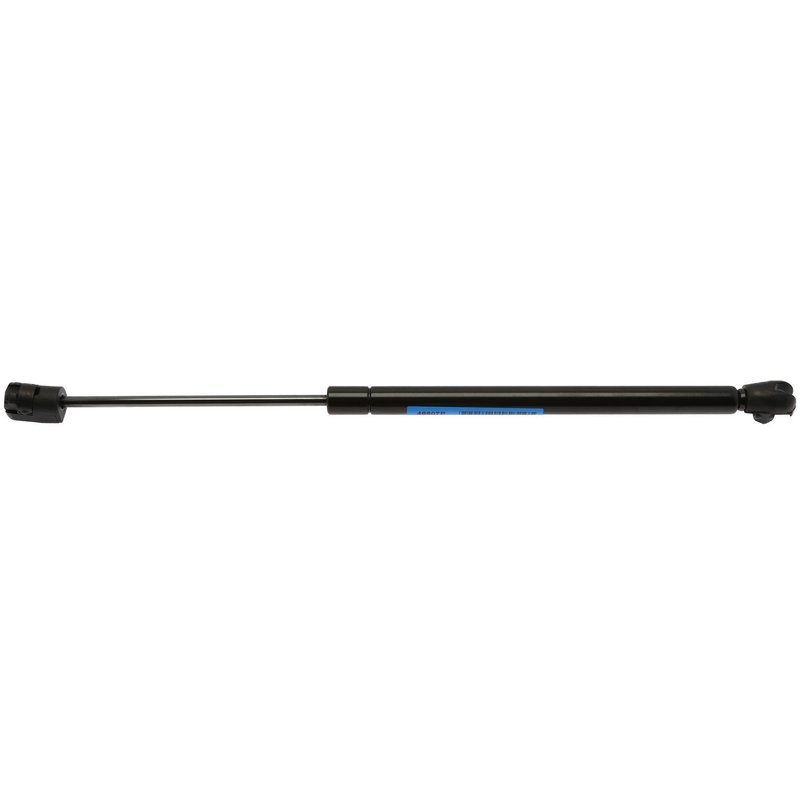

StrongArm 6607 Back Glass Lift Support

StrongArm Back Glass Lift Support for Nissan Pathfinder

The StrongArm 6607 back glass lift support is engineered specifically for Nissan Pathfinder models, providing reliable support and smooth operation for your vehicle's rear window. Designed with durable materials and precise dimensions, this lift support ensures consistent performance and fitment.

• Compressed length: 10.125 inches
• Extended length: 15.239 inches
• Cylinder outside diameter: 15.0 mm
• Stroke length: 5.114 inches
• Inner shaft diameter: 6.0 mm
• Outer cylinder made of steel with black finish
• Ball socket ends: 16-degree nylon and 10mm observatory types
• Maximum force rating of 49.0 lbs
• Materials include rubber and Teflon components for durability

Product Details and Specifications

The StrongArm 6607 back glass lift support is a specific fit part designed to match the exact requirements of Nissan Pathfinder vehicles. Its steel outer cylinder with a black finish offers corrosion resistance and strength, while the rubber and Teflon materials contribute to smooth operation and longevity. The lift support features ball socket ends—a 16-degree nylon ball socket on one end and a 10mm observatory ball socket on the other—ensuring secure attachment and proper articulation during lift and close cycles. With a stroke length of just over 5 inches and a maximum force capacity of 49 pounds, this lift support provides balanced assistance for the rear glass hatch.

Common Applications and Problem Resolution

• Supports the rear glass lift mechanism on Nissan Pathfinder models
• Replaces worn or weak lift supports causing difficulty in opening or holding the back glass
• Eliminates rattling or loose rear window movement
• Restores smooth and controlled lift and close operation
• Prevents sudden glass closure that can cause damage or injury

Installation Notes and Tips

Installation of the StrongArm 6607 back glass lift support requires matching the specific ball socket ends to the vehicle’s mounting points. Ensure the compressed and extended lengths correspond to the original part to maintain proper tension and fit. Use appropriate tools to remove the old lift support carefully, avoiding damage to the rear glass or mounting brackets. Lubricate ball sockets if necessary to facilitate smooth movement. Verify secure attachment at both ends before testing the lift operation.

Quality Assurance and Warranty

StrongArm manufactures the 6607 back glass lift support with high-quality steel and durable materials to meet OEM standards. This part is engineered for specific fitment on Nissan Pathfinder vehicles to ensure reliable performance. While no internal rebound spring is included, the design maintains consistent force and stability. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary.
