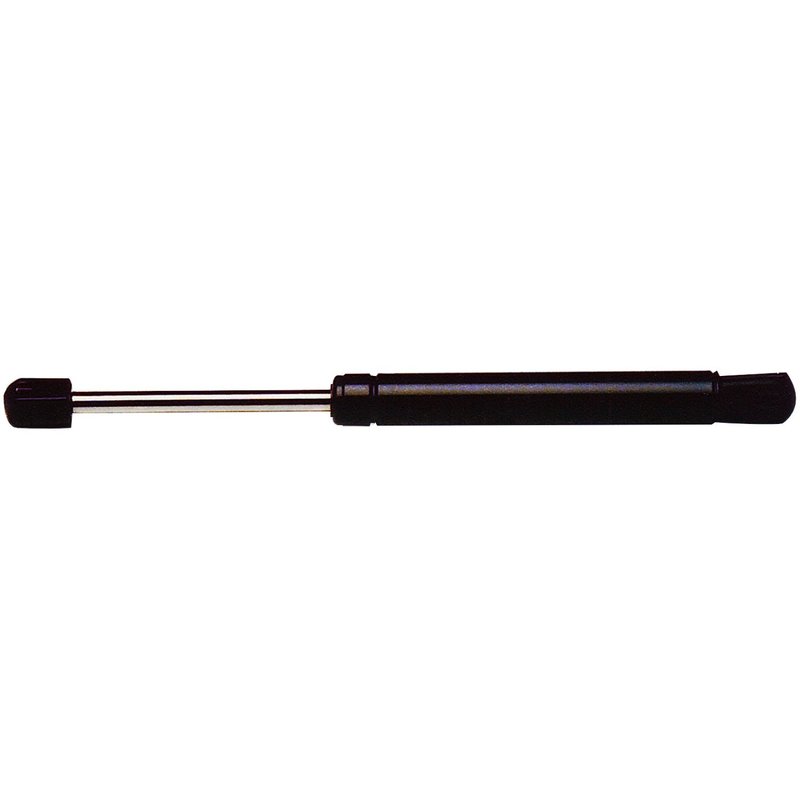

StrongArm 6616 Back Glass Lift Support
| Brand | StrongArm 6616 |
|---|---|
| Compressed Length | 14.53 |
| Cylinder Outside Diameter | 19.0 |
| End 1 Type | Ball Socket (Nylon) 10mm |
| End 2 Type | Ball Socket (Nylon) 10mm |
| Extended Length | 20.78 |
| Inner Shaft Diameter | 8.0 |
| Internal Rebound Spring | No |
| Materials | Rubber |
| Materials | Teflon |
| Maximum Force | 119.0 |
| Outer Cylinder Color | Black |
| Outer Cylinder Material | Steel |
| Stroke Length | 6.25 |
| Universal Or Specific Fit | Specific |
| Fits | BMW · 18 vehicles |
Specific fit. Custom engineered for a precise replacement.
Steel cylinder. Black steel construction with nylon ball sockets.
Smooth operation. Pressurized design delivers reliable support and longer-lasting performance.
Cross-references AMS Automotive 6616, 51 24 8 402 405 and 819-6349 for the same application. See all 6.
StrongArm 6616 Back Glass Lift Support for BMW X5
Restore controlled rear glass movement on your BMW X5 with the StrongArm 6616 back glass lift support. This specific-fit lift support is engineered for 2000-2006 BMW X5 applications and uses pressurized cylinder construction for smooth opening and steady hold at the rear window glass.
Key Features
- Specific-fit back glass lift support for 2000-2006 BMW X5
- Extended length: 20.78 in; compressed length: 14.53 in
- Stroke length: 6.25 in for rear glass movement
- Steel outer cylinder with black finish
- Ball socket (nylon) 10 mm ends on both sides
- Maximum force rating: 119.0
- Rubber and Teflon materials used in the support construction
Detailed Description
The StrongArm 6616 is a rear window glass lift support built for BMW X5 models from 2000 through 2006. It is engineered as a specific-fit replacement with matching ball socket end fittings and dimensions that align with the original rear glass support application. The pressurized cylinder design helps maintain consistent lift and controlled support for the back glass on the BMW X5, while the steel outer cylinder and internal sealing materials are selected for durable operation.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. The StrongArm 6616 is also referenced under AMS Automotive 6616 and OE-style interchange numbers including 51 24 8 402 405 and D6616.
What It Helps Address
- Rear glass that will not stay open on a BMW X5
- Slow or weak lift action at the back window
- Uneven or inconsistent support when opening the rear glass
- Loss of controlled movement in the hatch glass area
- Wear-related replacement needs on the BMW X5 rear glass support
Installation Notes and Tips
Verify the compressed length, extended length, stroke length, and 10 mm ball socket ends before installation on your BMW X5. For proper rear glass support and balanced operation, replace lift supports in pairs when servicing the vehicle. Confirm the vehicle year range and rear glass application before ordering the StrongArm 6616.
Quality Assurance
StrongArm states that each lift support is custom engineered and manufactured beyond industry standards for smoother operation and longer service life. The 6616 is built as a specific-fit replacement for 2000-2006 BMW X5 rear glass applications.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2006 | BMW | X5 | 3.0i | N/A | — |
| 2006 | BMW | X5 | 4.4i | N/A | — |
| 2006 | BMW | X5 | 4.8is | N/A | — |
| 2005 | BMW | X5 | 3.0i | N/A | — |
| 2005 | BMW | X5 | 4.4i | N/A | — |
| 2005 | BMW | X5 | 4.8is | N/A | — |
| 2004 | BMW | X5 | 3.0i | N/A | — |
| 2004 | BMW | X5 | 4.4i | N/A | — |
| 2004 | BMW | X5 | 4.8is | N/A | — |
| 2003 | BMW | X5 | 3.0i | N/A | — |
| 2003 | BMW | X5 | 4.4i | N/A | — |
| 2003 | BMW | X5 | 4.6is | N/A | — |
| 2002 | BMW | X5 | 3.0i | N/A | — |
| 2002 | BMW | X5 | 4.4i | N/A | — |
| 2002 | BMW | X5 | 4.6is | N/A | — |
| 2001 | BMW | X5 | 3.0i | N/A | — |
| 2001 | BMW | X5 | 4.4i | N/A | — |
| 2000 | BMW | X5 | 4.4i | N/A | — |
| No rows match your filter. | |||||
