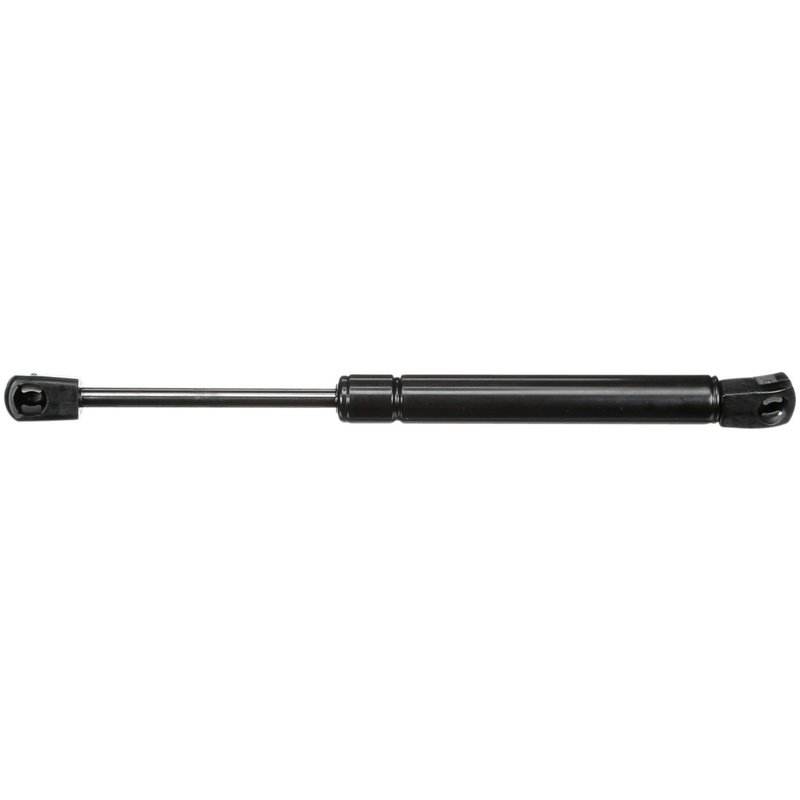

StrongArm 6645 Hood Lift Support

StrongArm Hood Lift Support for Nissan NV Series

The StrongArm 6645 Hood Lift Support is engineered specifically for Nissan NV1500, NV2500, and NV3500 models. Designed to provide reliable hood support, this part ensures smooth and controlled lifting and holding of the hood during maintenance or inspection.

• Compressed length: 7.53 inches for precise fitment
• Extended length: 10.78 inches with a 3.25-inch stroke length
• 19.0 mm steel outer cylinder with black finish for durability
• Ball socket nylon ends (10mm) with a 10-degree angled socket for secure mounting
• Maximum force rating of 154 lbs to support hood weight effectively
• Materials include rubber and Teflon components for smooth operation

Technical Details and Construction

The StrongArm 6645 hood lift support features a steel outer cylinder with a 19.0 mm diameter, finished in black to resist corrosion. The inner shaft diameter measures 8.0 mm, providing strength and stability. This specific fit part is designed without an internal rebound spring, relying on its robust construction and maximum force capacity of 154 lbs to maintain hood position securely. The ball socket ends, made of nylon, include a standard 10 mm socket on one end and a 10-degree angled 10 mm socket on the other, ensuring proper alignment and fitment on Nissan NV1500, NV2500, and NV3500 hoods.

Applications and Problem Solving

• Replaces worn or weak hood lift supports on Nissan NV1500, NV2500, and NV3500
• Prevents hood from slamming shut during engine access
• Eliminates difficulty in holding the hood open manually
• Restores smooth hood operation and controlled lifting
• Addresses hood sagging or uneven support issues

Installation Notes and Tips

Installation of the StrongArm 6645 hood lift support requires removal of the old lift support and attachment of the new unit using the ball socket ends. Ensure the sockets snap securely onto the mounting points. The 10-degree angled socket end should be installed according to the vehicle’s hood hinge orientation for proper fit. No special tools are required beyond standard hand tools. Verify the hood opens and holds smoothly after installation.

Quality Assurance and Warranty

StrongArm parts are manufactured to meet OEM specifications for fit and function. The 6645 hood lift support is constructed from durable steel and engineered materials to provide consistent performance. While specific warranty details are not provided, StrongArm products typically adhere to industry standards for quality and reliability.
