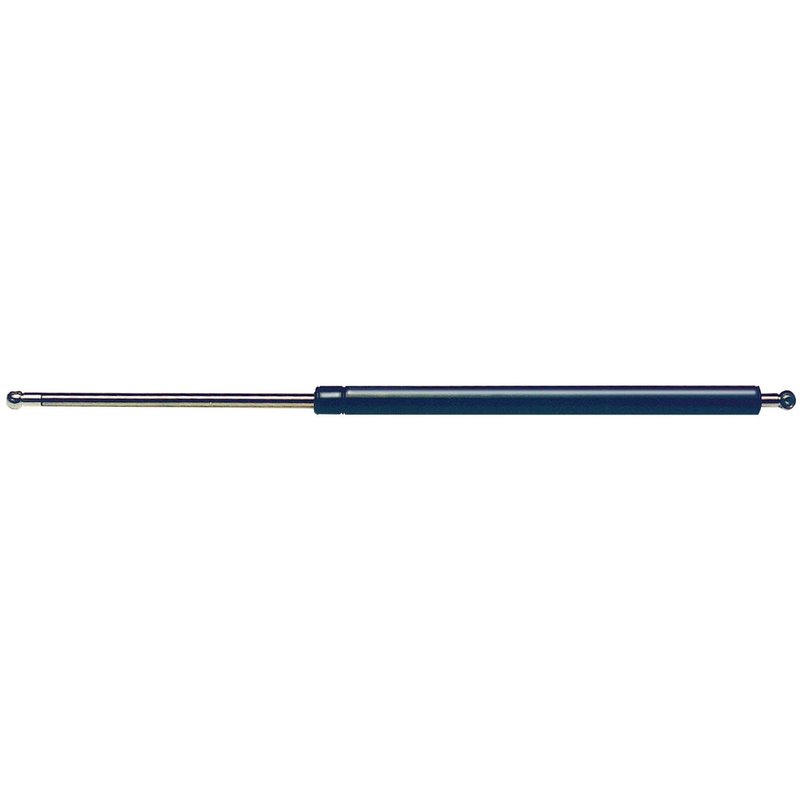

StrongArm 6832 Liftgate Lift Support

StrongArm Liftgate Lift Support for Mitsubishi Endeavor

The StrongArm 6832 liftgate lift support is designed specifically for the Mitsubishi Endeavor, providing reliable and precise support for your vehicle's liftgate. Engineered with durable materials and exact fitment, this lift support ensures smooth operation and secure hold of the liftgate.

• Compressed length: 12.68 inches
• Extended length: 20.93 inches
• Cylinder outside diameter: 22.0 mm
• Stroke length: 8.25 inches
• Inner shaft diameter: 10.0 mm
• End fittings: 10mm ball sockets (nylon-steel) on both ends
• Outer cylinder made of black steel for durability
• Maximum force rating: 134.0 N
• Materials include rubber and Teflon components for smooth operation

Product Details and Specifications

The StrongArm 6832 liftgate lift support is a specific fit part designed to match the exact dimensions and requirements of the Mitsubishi Endeavor liftgate system. With a compressed length of 12.68 inches and an extended length of 20.93 inches, it provides the correct range of motion needed for proper liftgate function. The cylinder's 22.0 mm outside diameter and 10.0 mm inner shaft diameter ensure strength and stability under load. Both ends feature 10mm ball sockets made from nylon and steel, allowing for secure attachment and smooth pivoting action. The outer cylinder is constructed from black steel, offering resistance to wear and environmental factors. This lift support does not include an internal rebound spring, focusing on consistent force delivery up to 134 Newtons. Rubber and Teflon materials are incorporated to reduce friction and enhance durability.

Common Applications and Problem Solving

• Supports the liftgate to prevent sudden closing or slamming
• Replaces worn or weak lift supports causing liftgate sagging
• Restores smooth and controlled liftgate opening and closing
• Eliminates noise or sticking during liftgate operation
• Ensures safety by maintaining liftgate position during loading and unloading

Installation Notes and Tips

Installation of the StrongArm 6832 liftgate lift support requires matching the specific ball socket ends to the factory mounting points on the Mitsubishi Endeavor. Ensure the lift support is oriented correctly with the compressed length matching the closed position of the liftgate. Use appropriate tools to remove the old lift support by detaching the ball sockets carefully to avoid damage. When installing the new lift support, snap the ball sockets firmly onto the mounting studs until secure. It is recommended to replace lift supports in pairs to maintain balanced liftgate operation.

Quality Assurance and Warranty

StrongArm lift supports are manufactured to meet OEM specifications for fit and function. The 6832 part number undergoes quality checks to ensure durability and consistent performance. While specific warranty details are not provided here, StrongArm products typically come with a limited warranty against defects in materials and workmanship. For detailed warranty information, consult the product documentation or manufacturer resources.
