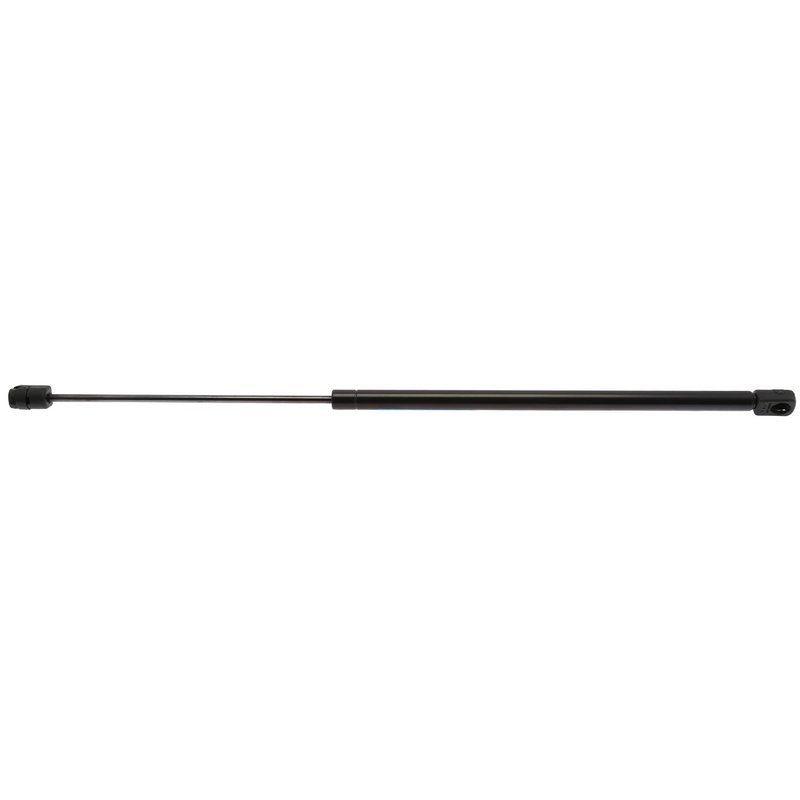

StrongArm 6900 Cargo Van Access Panel Lift SupportOE Quality 60-Day Returns
StrongArm 6900 Cargo Van Access Panel Lift Support - view 1
StrongArm 6900 Cargo Van Access Panel Lift Support - view 2
StrongArm 6900 Cargo Van Access Panel Lift Support - view 3
StrongArm 6900 Cargo Van Access Panel Lift Support - view 4
Part #: 6900

StrongArm 6900 Cargo Van Access Panel Lift Support

⚙️ 92 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$26.21Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Chevrolet and GMC, Express 2500, Express 3500, Savana 2500, Savana 3500, Express 1500, and Savana 1500
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Cargo Van Access Panel Lift Support options

StrongArm Cargo Van Access Panel Lift Support Overview

The StrongArm 6900 Cargo Van Access Panel Lift Support is engineered specifically for Chevrolet Express and GMC Savana models. Designed to provide reliable support and smooth operation, this lift support ensures safe and controlled access to cargo van panels.

  • Compressed length: 14.25 inches
  • Extended length: 21.75 inches
  • Stroke length: 7.0 inches
  • Cylinder outside diameter: 15.0 mm
  • Inner shaft diameter: 6.0 mm
  • Steel outer cylinder with black finish
  • Ball socket nylon ends, 10mm on both sides
  • Maximum force rating of 28.0 lbs
  • Specific fit for Chevrolet Express 1500, 2500, 3500 and GMC Savana 1500, 2500, 3500

Technical Details and Specifications

This StrongArm lift support (part number 6900) is constructed with a durable steel outer cylinder finished in black to resist corrosion and wear. The 15.0 mm cylinder diameter and 6.0 mm inner shaft diameter provide the necessary strength and stability for cargo van access panels. The 7.0-inch stroke length allows smooth extension and compression, while the 14.25-inch compressed length and 21.75-inch extended length ensure proper fitment and function. Both ends feature 10mm nylon ball socket connectors for secure mounting and reduced noise during operation. The lift support does not include an internal rebound spring, focusing on consistent force delivery up to 28 lbs.

Compatible Vehicles and Applications

This lift support is specifically designed for use with Chevrolet Express and GMC Savana cargo vans, including the 1500, 2500, and 3500 models. It is ideal for replacing worn or damaged cargo van access panel lift supports to restore proper panel operation and safety.

  • Supports smooth opening and closing of cargo van access panels
  • Prevents sudden panel drops or uncontrolled movement
  • Reduces wear on hinges and mounting points
  • Improves safety when accessing cargo areas
  • Restores factory-level support force and reliability

Installation Notes and Tips

Installation of the StrongArm 6900 lift support requires removal of the old lift support and proper alignment of the ball socket ends with the mounting points. Ensure the panel is securely supported during replacement to avoid injury. The 10mm nylon ball sockets snap into place on compatible mounting studs. Verify the compressed and extended lengths match the original part to ensure correct fitment. Lubrication of ball sockets is generally not required but inspect mounting points for wear or damage during installation.

Quality Assurance and Warranty

StrongArm lift supports are manufactured to meet OEM specifications for durability and performance. The steel construction and corrosion-resistant finish contribute to long service life. Part number 6900 undergoes quality checks to ensure consistent force output and fitment accuracy. Warranty coverage details should be confirmed with the product documentation or manufacturer.

BrandStrongArm
Part Number6900
Compressed Length14.25
Cylinder Outside Diameter15.0
End 1 TypeBall Socket (Nylon) 10mm
End 2 TypeBall Socket (Nylon) 10mm
Extended Length21.75
Inner Shaft Diameter6.0
Internal Rebound SpringNo
Maximum Force28.0
Outer Cylinder ColorBlack
Outer Cylinder MaterialSteel
Stroke Length7.0
Universal Or Specific FitSpecific

This part fits 92 vehicles. Search below:

YearMakeModelPositionNotes
2019ChevroletExpress 2500N/A
2019ChevroletExpress 3500N/A
2019GMCSavana 2500N/A
2019GMCSavana 3500N/A
2018ChevroletExpress 2500N/A
2018ChevroletExpress 3500N/A
2018GMCSavana 2500N/A
2018GMCSavana 3500N/A
2017ChevroletExpress 2500N/A
2017ChevroletExpress 3500N/A
2017GMCSavana 2500N/A
2017GMCSavana 3500N/A
2016ChevroletExpress 2500N/A
2016ChevroletExpress 3500N/A
2016GMCSavana 2500N/A
2016GMCSavana 3500N/A
2015ChevroletExpress 2500N/A
2015ChevroletExpress 3500N/A
2015GMCSavana 2500N/A
2015GMCSavana 3500N/A
2014ChevroletExpress 1500N/A
2014ChevroletExpress 2500N/A
2014ChevroletExpress 3500N/A
2014GMCSavana 1500N/A
2014GMCSavana 2500N/A
2014GMCSavana 3500N/A
2013ChevroletExpress 1500N/A
2013ChevroletExpress 2500N/A
2013ChevroletExpress 3500N/A
2013GMCSavana 1500N/A
2013GMCSavana 2500N/A
2013GMCSavana 3500N/A
2012ChevroletExpress 1500N/A
2012ChevroletExpress 2500N/A
2012ChevroletExpress 3500N/A
2012GMCSavana 1500N/A
2012GMCSavana 2500N/A
2012GMCSavana 3500N/A
2011ChevroletExpress 1500N/A
2011ChevroletExpress 2500N/A
2011ChevroletExpress 3500N/A
2011GMCSavana 1500N/A
2011GMCSavana 2500N/A
2011GMCSavana 3500N/A
2010ChevroletExpress 1500N/A
2010ChevroletExpress 2500N/A
2010ChevroletExpress 3500N/A
2010GMCSavana 1500N/A
2010GMCSavana 2500N/A
2010GMCSavana 3500N/A
2009ChevroletExpress 1500N/A
2009ChevroletExpress 2500N/A
2009ChevroletExpress 3500N/A
2009GMCSavana 1500N/A
2009GMCSavana 2500N/A
2009GMCSavana 3500N/A
2008ChevroletExpress 1500N/A
2008ChevroletExpress 2500N/A
2008ChevroletExpress 3500N/A
2008GMCSavana 1500N/A
2008GMCSavana 2500N/A
2008GMCSavana 3500N/A
2007ChevroletExpress 1500N/A
2007ChevroletExpress 2500N/A
2007ChevroletExpress 3500N/A
2007GMCSavana 1500N/A
2007GMCSavana 2500N/A
2007GMCSavana 3500N/A
2006ChevroletExpress 1500N/A
2006ChevroletExpress 2500N/A
2006ChevroletExpress 3500N/A
2006GMCSavana 1500N/A
2006GMCSavana 2500N/A
2006GMCSavana 3500N/A
2005ChevroletExpress 1500N/A
2005ChevroletExpress 2500N/A
2005ChevroletExpress 3500N/A
2005GMCSavana 1500N/A
2005GMCSavana 2500N/A
2005GMCSavana 3500N/A
2004ChevroletExpress 1500N/A
2004ChevroletExpress 2500N/A
2004ChevroletExpress 3500N/A
2004GMCSavana 1500N/A
2004GMCSavana 2500N/A
2004GMCSavana 3500N/A
2003ChevroletExpress 1500N/A
2003ChevroletExpress 2500N/A
2003ChevroletExpress 3500N/A
2003GMCSavana 1500N/A
2003GMCSavana 2500N/A
2003GMCSavana 3500N/A

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

15162860510-12366900819-6341C6900C96900SG230059

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
