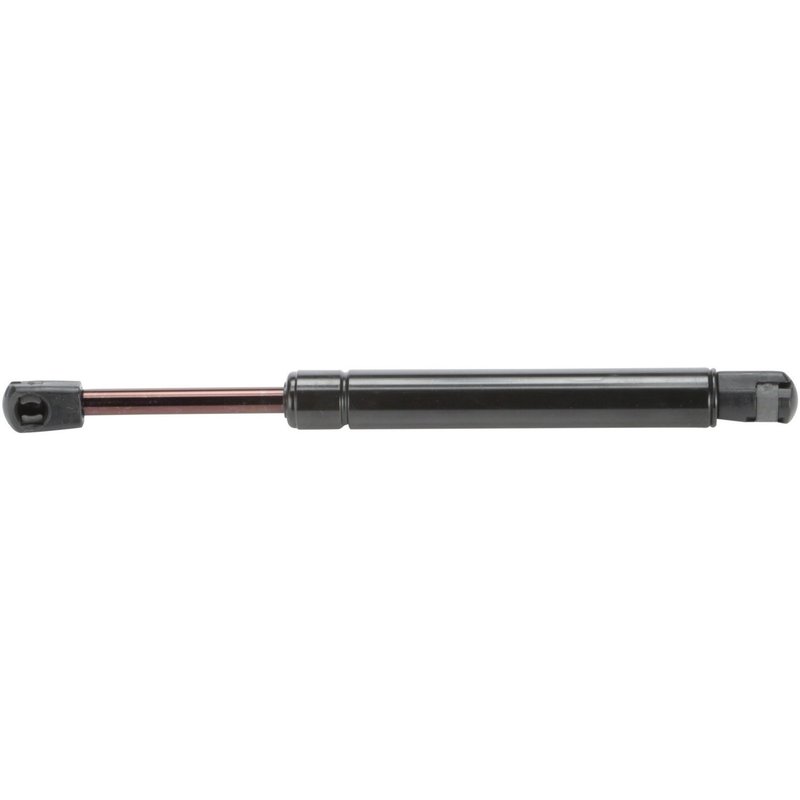

StrongArm 7013 Liftgate Lift Support
| Brand | StrongArm 7013 |
|---|---|
| Compressed Length | 16.13 |
| Cylinder Outside Diameter | 22.0 |
| End 1 Type | Ball Socket (Nylon) 10mm |
| End 2 Type | Ball Socket (Nylon) 10mm |
| Extended Length | 25.13 |
| Inner Shaft Diameter | 10.0 |
| Internal Rebound Spring | No |
| Materials | Rubber |
| Materials | Teflon |
| Maximum Force | 188.0 |
| Outer Cylinder Color | Black |
| Outer Cylinder Material | Steel |
| Stroke Length | 9.0 |
| Universal Or Specific Fit | Specific |
| Fits | Kia · 10 vehicles |
Specific fit. Custom engineered for a precise replacement.
Steel cylinder. Built for smoother operation and longer-lasting performance.
Ball socket ends. Nylon sockets provide secure attachment.
Cross-references AMS Automotive 7013, 819-8286 and 81771-4D010 for the same application. See all 8.
StrongArm 7013 Liftgate Lift Support
StrongArm 7013 is a specific-fit liftgate lift support for select Kia Sedona and Hyundai Entourage applications. It restores controlled liftgate movement with a pressurized cylinder built for smooth operation and consistent rear hatch support.
Key Features
- Specific-fit liftgate lift support for confirmed vehicle applications
- Extended length: 25.13 in.; compressed length: 16.13 in.
- Stroke length: 9.0 in. for liftgate travel control
- Maximum force rating: 188.0
- Steel outer cylinder with black finish
- 10 mm nylon ball socket ends on both sides
- Rubber and Teflon materials for operating durability
- StrongArm 7013 cross-references AMS Automotive 7013
Detailed Description
This StrongArm lift support is engineered for rear liftgate service where consistent opening and holding force matter. It uses a pressurized cylinder design with a steel outer body, nylon ball socket ends, and a 188.0 maximum force rating to help maintain stable liftgate operation. The specific-fit design supports direct replacement on 2006-2012 Kia Sedona, 2014 Kia Sedona, and 2007-2008 Hyundai Entourage applications.
Use StrongArm 7013 when replacing a worn liftgate support on a Kia Sedona or Hyundai Entourage with power liftgate functionality included. The part number 7013 is also referenced under several aftermarket interchange numbers, making it easier to match the correct rear hatch support for the listed vehicles.
What It Helps Fix
- Liftgate that drops instead of staying open
- Rear hatch that opens with reduced assist
- Uneven or inconsistent liftgate movement
- Worn gas strut performance on the rear hatch
- Difficulty holding the liftgate in the raised position
Installation Notes and Tips
Fits 2006-2012 Kia Sedona, N/A; Fits 2014 Kia Sedona, N/A; Fits 2007-2008 Hyundai Entourage, N/A. Confirm the vehicle’s power liftgate configuration before ordering, and verify end fittings and extended/compressed length against the original support. Lift supports should be replaced in pairs to maintain balanced rear hatch operation and reliable support.
Quality Assurance
StrongArm lift supports are custom engineered and manufactured to exceed industry standards for smoother operation and longer service life. Part number 7013 is built as a direct-fit replacement for the listed applications and is backed by StrongArm’s manufacturing quality standards.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2014 | Kia | Sedona | — | — | — | N/A | Power liftgate functionality included |
| 2012 | Kia | Sedona | — | — | — | N/A | Power liftgate functionality included |
| 2011 | Kia | Sedona | — | — | — | N/A | Power liftgate functionality included |
| 2010 | Kia | Sedona | — | — | — | N/A | Power liftgate functionality included |
| 2009 | Kia | Sedona | — | — | — | N/A | Power liftgate functionality included |
| 2008 | Hyundai | Entourage | Limited | 3.8L | V6 | N/A | — |
| 2008 | Kia | Sedona | — | — | — | N/A | Power liftgate functionality included |
| 2007 | Hyundai | Entourage | SE | 3.8L | V6 | N/A | — |
| 2007 | Kia | Sedona | — | — | — | N/A | Power liftgate functionality included |
| 2006 | Kia | Sedona | — | — | — | N/A | Power liftgate functionality included |
