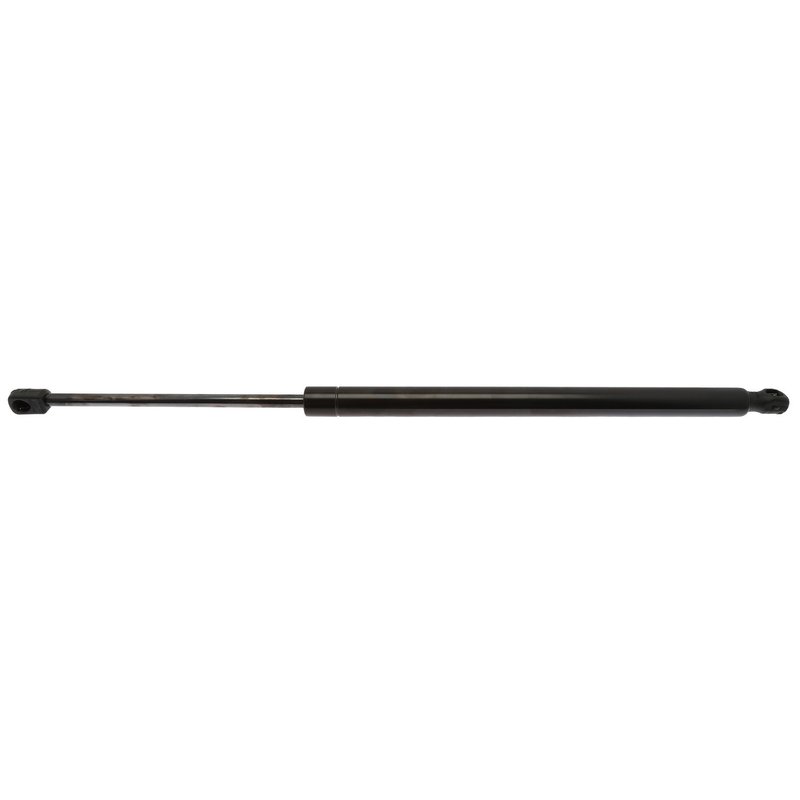

StrongArm 7015 Liftgate Lift Support
| Brand | StrongArm 7015 |
|---|---|
| Compressed Length | 15.18 |
| Cylinder Outside Diameter | 22.0 |
| End 1 Type | Ball Socket (Nylon) 10mm |
| End 2 Type | Ball Socket (Nylon) 10mm |
| Extended Length | 21.93 |
| Inner Shaft Diameter | 10.0 |
| Internal Rebound Spring | No |
| Materials | Rubber |
| Materials | Teflon |
| Maximum Force | 112.0 |
| Outer Cylinder Color | Black |
| Outer Cylinder Material | Steel |
| Stroke Length | 6.75 |
| Universal Or Specific Fit | Specific |
| Fits | Nissan · 5 vehicles |
Specific fit. Custom engineered for a precise replacement.
Steel cylinder. Black steel construction for dependable support.
Smooth operation. Built for smoother, longer-lasting performance.
Cross-references AMS Automotive 7015, StrongArm C7015 and 819-8288 for the same application. See all 6.
StrongArm 7015 Liftgate Lift Support for Pathfinder
The StrongArm 7015 liftgate lift support is a specific-fit replacement for select Nissan Pathfinder models. It uses a pressurized cylinder design to help hold the liftgate in position with smooth, controlled movement and consistent support.
- Specific-fit liftgate lift support for select Nissan Pathfinder applications
- Compressed length: 15.18 in.; extended length: 21.93 in.
- Stroke length: 6.75 in. for measured liftgate travel
- Maximum force rating: 112.0
- Black steel outer cylinder with nylon 10 mm ball socket ends
- Internal rebound spring: No
- Cross-reference: AMS Automotive 7015
Detailed Product Overview
Built for the body and doors category, this StrongArm 7015 lift support is engineered for rear liftgate use on 2013-2017 Nissan Pathfinder models, except Power Lift Gate and vehicles built after 01/2017. The design combines a steel outer cylinder, rubber and Teflon materials, and nylon ball socket ends to deliver controlled extension and retraction for the liftgate. If you are searching for a Nissan Pathfinder liftgate lift support or a StrongArm 7015 replacement, this part is matched to the listed application and dimensions.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Liftgate that will not stay open
- Weak or slow rear hatch support
- Uneven or inconsistent liftgate movement
- Noise or binding from a worn gas strut
- Loss of holding force in the rear hatch area
Installation Notes and Tips
Verify the vehicle build date and liftgate configuration before ordering. This StrongArm 7015 is for 2013-2017 Nissan Pathfinder models except Power Lift Gate and units built after 01/2017. Check that the end fittings match the existing 10 mm ball socket connection and confirm compressed and extended lengths against the original support for proper fitment.
Quality Assurance
StrongArm states that each lift support is custom engineered and manufactured beyond industry standards for smoother operation and longer-lasting performance. Lift supports should be replaced in pairs to maintain safe, reliable liftgate support.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017 | Nissan | Pathfinder | N/A | Except Power Lift Gate; To 01/2017 |
| 2016 | Nissan | Pathfinder | N/A | Except Power Lift Gate; To 01/2017 |
| 2015 | Nissan | Pathfinder | N/A | Except Power Lift Gate; To 01/2017 |
| 2014 | Nissan | Pathfinder | N/A | Except Power Lift Gate; To 01/2017 |
| 2013 | Nissan | Pathfinder | N/A | Except Power Lift Gate; To 01/2017 |
