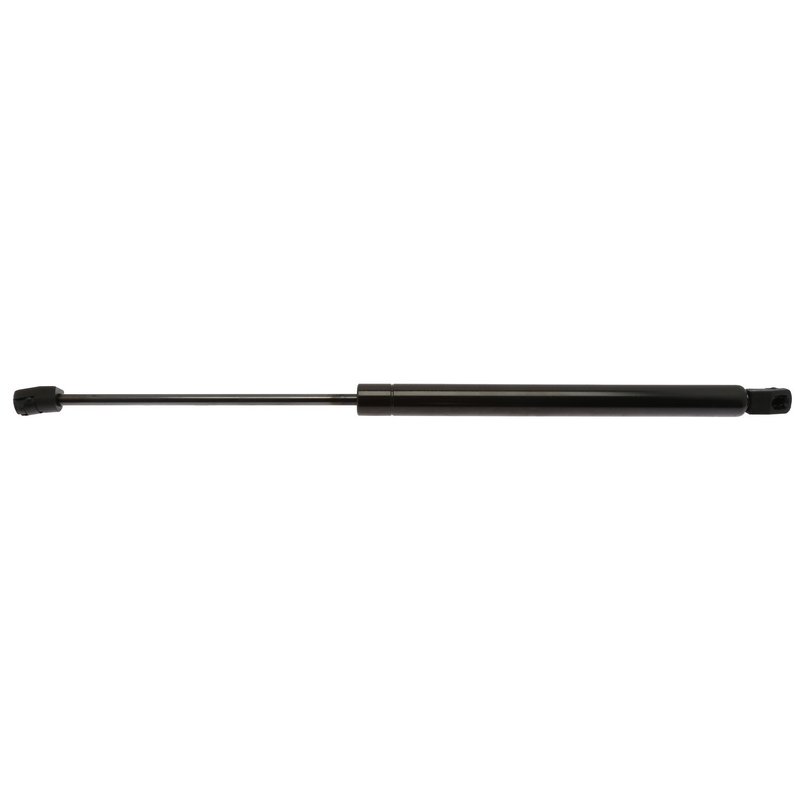

StrongArm 7051 Liftgate Lift Support

StrongArm Liftgate Lift Support for Audi Q7

The StrongArm 7051 liftgate lift support is engineered specifically for the Audi Q7, providing reliable and consistent performance. Designed to assist in the smooth opening and secure holding of the liftgate, this part ensures safe and controlled operation.

• Compressed length: 12.06 inches
• Extended length: 19.56 inches
• Cylinder outside diameter: 22.0 mm
• Stroke length: 7.5 inches
• Inner shaft diameter: 8.0 mm
• Steel outer cylinder with black finish
• Ball socket ends (nylon) 10mm, 16-degree angle on both sides
• Maximum force rating: 118.0 N
• Materials include rubber and Teflon components for durability

Technical Details and Compatibility

This liftgate lift support (part number 7051) is a specific fit for the Audi Q7, ensuring precise compatibility and optimal function. The steel outer cylinder with a black finish offers strength and corrosion resistance, while the nylon ball socket ends provide smooth articulation at a 16-degree angle. The 7.5-inch stroke length and 118 Newton maximum force rating deliver the necessary support to hold the liftgate securely in place during use.

Common Applications and Problem Solving

• Supports liftgate opening and closing for Audi Q7 models
• Replaces worn or weak lift supports causing liftgate sagging
• Eliminates liftgate that won’t stay open or closes unexpectedly
• Prevents excessive strain on liftgate hinges
• Restores smooth and controlled liftgate operation

Installation Notes and Tips

Installation of the StrongArm 7051 liftgate lift support requires removal of the old lift support and attachment of the new unit using the ball socket ends. Both ends feature 10mm nylon ball sockets angled at 16 degrees, which should be aligned carefully to ensure proper fit and function. It is recommended to support the liftgate during installation to prevent injury or damage. No internal rebound spring is included, so handle with care during replacement.

Quality Assurance and Warranty

The StrongArm 7051 liftgate lift support is manufactured with high-quality steel and durable materials such as rubber and Teflon to ensure long-lasting performance. While specific warranty details are not provided, StrongArm products typically meet industry standards for reliability and durability. This part is designed to meet the exact specifications required for the Audi Q7 liftgate system.
