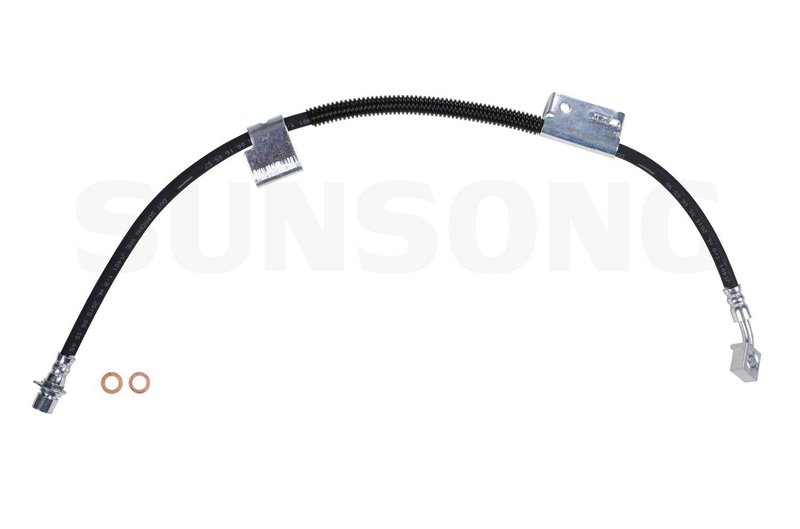

Sunsong 2201768 Brake Hydraulic Hose - Front Left
Sunsong 2201768 Brake Hydraulic Hose
Sunsong 2201768 is a front left brake hydraulic hose built for direct replacement on select Chevrolet Express 1500 and GMC Savana 1500 vans. It is engineered to match the original routing and connection points for a clean service repair on the brake system.
- Direct-fit brake hose for front left applications
- EPDM hose material for brake fluid service
- End 1: 10 mm banjo fitting
- End 2: 12 mm female fitting
- 29.82 in. overall length (757.5 mm)
- Includes bracket where required by application
- Meets or exceeds DOT, FMVSS 106, and SAE J1401 standards
- High-grade steel tubing with zinc electroplating for corrosion resistance
Application Details
Fits 2010-2014 Chevrolet Express 1500, front left, w/o bracket at female fitting. Fits 2010-2014 GMC Savana 1500, front left, w/o bracket at female fitting. This part cross-references Dorman - First Stop H621180 and Raybestos Brakes BH383554 for the same application. The Sunsong 2201768 brake hose is a direct replacement choice for Chevrolet Express 1500 and GMC Savana 1500 front left brake service when the original hose shows wear, cracking, or leakage.
What This Brake Hose Helps Address
- Brake fluid seepage at a damaged hose or fitting
- Cracking, swelling, or deterioration in the rubber hose section
- Corrosion at exposed steel tubing or fittings
- Restricted brake fluid flow from an aged or internally weakened hose
- Fitment issues caused by a hose that no longer matches the original routing
Installation Notes
Verify the front left position and confirm the 10 mm banjo and 12 mm female end fittings before installation. This application is listed without a bracket at the female fitting, so match the vehicle configuration before ordering. Brake hoses with banjo end fittings include new copper washers to support proper sealing. After installation, bleed the brake system and inspect all connections for leaks.
Quality Assurance
Each Sunsong brake hose is pressure tested before it leaves the factory. The hose is built to meet or exceed DOT, FMVSS 106, and SAE J1401 requirements, with zinc-coated steel tubing for added resistance to rust and road contamination.
| Brand | Sunsong |
|---|---|
| Part Number | 2201768 |
| Bracket (Y/N) | Y |
| End 1 Fitting Size (mm) | 10 |
| End 1 Fitting Type | Banjo |
| End 2 Fitting Size (mm) | 12 |
| End 2 Fitting Type | Female |
| Hose Material 1 | Epdm |
| Length (in) | 29.82 |
| Length (mm) | 757.5 |
This part fits 10 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Chevrolet | Express 1500 | Front Left | w/o Bracket at Female Fitting |
| 2014 | GMC | Savana 1500 | Front Left | w/o Bracket at Female Fitting |
| 2013 | Chevrolet | Express 1500 | Front Left | w/o Bracket at Female Fitting |
| 2013 | GMC | Savana 1500 | Front Left | w/o Bracket at Female Fitting |
| 2012 | Chevrolet | Express 1500 | Front Left | w/o Bracket at Female Fitting |
| 2012 | GMC | Savana 1500 | Front Left | w/o Bracket at Female Fitting |
| 2011 | Chevrolet | Express 1500 | Front Left | w/o Bracket at Female Fitting |
| 2011 | GMC | Savana 1500 | Front Left | w/o Bracket at Female Fitting |
| 2010 | Chevrolet | Express 1500 | Front Left | w/o Bracket at Female Fitting |
| 2010 | GMC | Savana 1500 | Front Left | w/o Bracket at Female Fitting |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
