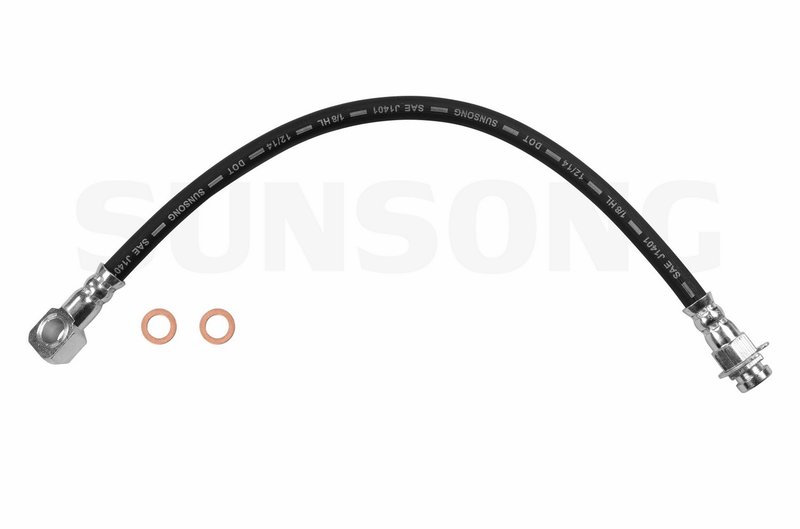

Sunsong 2203386 Brake Hydraulic Hose - Front

Reliable Brake Hydraulic Hose for Chevrolet Camaro and Pontiac Firebird

The Sunsong 2203386 brake hydraulic hose is designed to provide dependable brake fluid transfer for select Chevrolet Camaro and Pontiac Firebird models. Engineered with durable EPDM hose material and precise fittings, this hose ensures consistent brake performance and safety.

• Compatible with Chevrolet Camaro and Pontiac Firebird models
• Brake hydraulic hose with 15.27 inches (388 mm) length
• End 1 fitting: 7/16 inch banjo type
• End 2 fitting: 3/8 inch female type
• Constructed from EPDM material for heat and chemical resistance
• No bracket included (Bracket: N)

Technical Details and Specifications

The Sunsong 2203386 brake hydraulic hose features a 15.27-inch length, suitable for specific brake line routing on Chevrolet Camaro and Pontiac Firebird vehicles. The hose uses EPDM material, known for its resistance to heat, ozone, and brake fluid, ensuring durability under demanding conditions. The hose ends include a 7/16 inch banjo fitting on one side and a 3/8 inch female fitting on the other, providing secure connections to the brake system components. This part does not include a mounting bracket, so installation requires proper securing using existing hardware or compatible brackets.

Applications and Common Issues Addressed

• Replacement of worn or cracked brake hydraulic hoses
• Resolving brake fluid leaks caused by damaged hose fittings
• Restoring proper brake fluid pressure and pedal feel
• Addressing hose swelling or deterioration from heat exposure
• Ensuring safe brake system operation on Chevrolet Camaro and Pontiac Firebird

Installation Notes and Tips

When installing the Sunsong 2203386 brake hydraulic hose, ensure the brake system is fully depressurized and fluid is drained to prevent spills. Verify the hose length and fitting types match the vehicle’s brake line configuration. Use appropriate brake line wrenches to avoid damaging fittings. Since this hose does not include a bracket, secure it properly to prevent movement or abrasion during vehicle operation. After installation, bleed the brake system thoroughly to remove air and confirm proper brake function.

Quality Assurance and Warranty Information

Sunsong brake hydraulic hoses are manufactured to meet or exceed OEM specifications for fit, form, and function. The EPDM hose material provides resistance to heat and brake fluid degradation, contributing to long service life. The 2203386 part number undergoes quality control inspections to ensure reliability. Warranty coverage details should be confirmed with the distributor or retailer, as Sunsong typically offers limited warranties against manufacturing defects.
