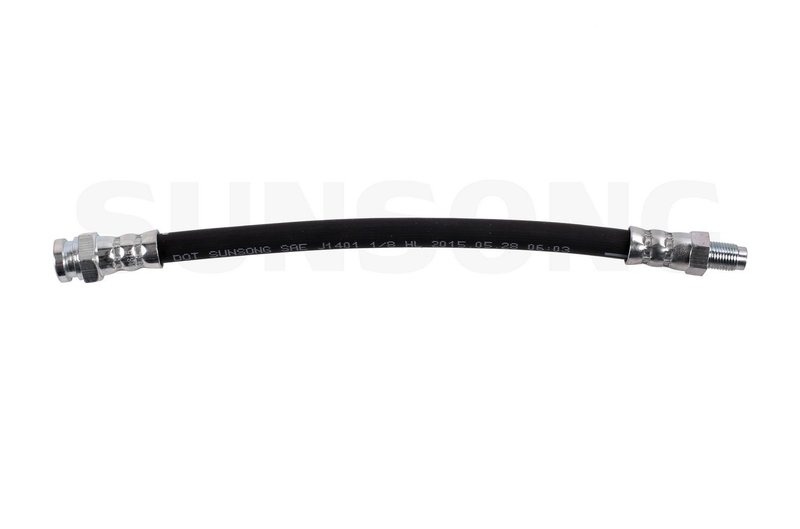

Sunsong 2205406 Brake Hydraulic Hose - Rear Outer

Overview of Sunsong Brake Hydraulic Hose 2205406

The Sunsong brake hydraulic hose 2205406 is designed specifically for the Fiat 500, providing reliable brake fluid transfer with precise fitting specifications. This brake hose features EPDM material construction and a length of 243 mm (9.56 inches), ensuring durability and compatibility with your vehicle's braking system.

• Compatible with Fiat 500 models
• Brake hydraulic hose with part number 2205406
• EPDM hose material for resistance to heat and brake fluid
• Length: 243 mm (9.56 inches)
• End 1 fitting: 10 mm female
• End 2 fitting: 10 mm male
• No bracket included

Detailed Product Description

The Sunsong 2205406 brake hydraulic hose is engineered to meet the specific requirements of the Fiat 500 braking system. Constructed from EPDM, a synthetic rubber known for its excellent resistance to heat, ozone, and brake fluid, this hose maintains integrity under demanding conditions. The hose measures 243 mm (9.56 inches) in length, making it an exact replacement part. It features a 10 mm female fitting on one end and a 10 mm male fitting on the other, ensuring a secure and leak-free connection within the brake line assembly. This part does not include a mounting bracket, so it is intended for applications where the bracket is either not required or reused from the original component.

Common Applications and Issues Addressed

• Replacement of worn or cracked brake hydraulic hoses on Fiat 500
• Resolving brake fluid leaks caused by damaged hose fittings
• Addressing brake line swelling or soft pedal feel due to hose degradation
• Restoring proper brake pressure and pedal response
• Preventing brake fluid contamination and maintaining system integrity

Installation Notes and Tips

When installing the Sunsong brake hydraulic hose 2205406 on a Fiat 500, ensure the brake system is fully depressurized before removal. Verify the orientation of the 10 mm female and male fittings to match the vehicle’s brake line connections. Use appropriate brake line wrenches to avoid damaging fittings during installation. After installation, bleed the brake system thoroughly to remove any air and confirm proper brake pedal feel. Inspect the hose routing to prevent contact with moving parts or heat sources.

Quality Assurance and Warranty

Sunsong brake hydraulic hoses are manufactured to meet or exceed OEM specifications for fit, form, and function. The EPDM material provides resistance to common brake system contaminants and environmental factors. Part number 2205406 undergoes quality control testing to ensure durability and leak-free performance. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
