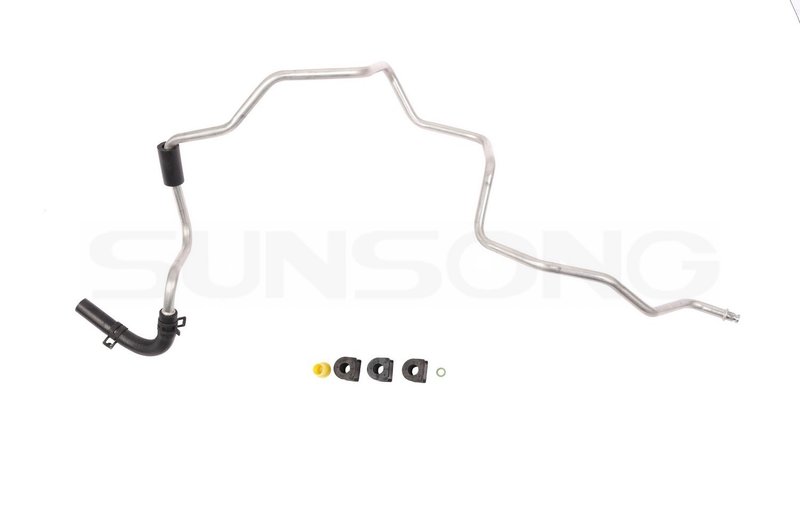

Sunsong 3404847 Power Steering Return Line Hose Assembly - Gear To Cooler
| Brand | Sunsong 3404847 |
|---|---|
| Position | Gear To Cooler |
| Bracket (Y/N) | N |
| End 1 Fitting Size (in) | 3/8 |
| End 1 Fitting Type | Bubble flare |
| Hose Material 1 | Csm |
| Length (in) | 56.7 |
| Length (mm) | 1440 |
| PS Switch Port (Y/N) | N |
| Fits | Cadillac · 6 vehicles |
Exact-fit hose assembly. Precision engineered for a direct replacement and original-condition restoration.
Zinc-coated steel tubing. Helps resist corrosion and rust from humidity, salt, water, and grime.
High-pressure rated. Built for low-pressure, high-temperature steering return service.
Cross-references Edelmann 92787, Four Seasons 55432 and Gates 366233 for the same application. See all 4.
Power Steering Return Hose for Cadillac SRX
Sunsong 3404847 is a power steering return line hose assembly for the 2004-2009 Cadillac SRX, Gear To Cooler. It is built for low-pressure, high-temperature return-side service and follows exact-fit engineering for direct replacement use.
Key Features
- Fits 2004-2009 Cadillac SRX, Gear To Cooler
- 3/8 in. bubble flare end 1 fitting
- 56.7 in. (1440 mm) hose length
- CSM hose material for return-line service
- Maximum working pressure of 250 psi
- High-grade steel tubing with zinc electroplating for corrosion resistance
- Precision-engineered to match original routing and fit
Detailed Description
This Sunsong power steering return line hose assembly, part number 3404847, is made for the return path between the steering gear and cooler on the Cadillac SRX. It is engineered to OE dimensions and uses steel tubing with a zinc coating to resist rust from humidity, road salt, water, and grime. The hose is built for low-pressure return applications where heat resistance and correct routing matter. This part cross-references Four Seasons 55432 for the same application.
Common Problems This Part Can Address
- Power steering fluid seepage from a worn return hose
- Corrosion on the original steel line
- Softening or cracking from heat and age
- Incorrect hose length or routing after prior repairs
- Noise or steering performance issues caused by fluid loss
Installation Notes and Tips
Verify the vehicle is a 2004-2009 Cadillac SRX with the Gear To Cooler return-line configuration before ordering. Match the 3/8 in. bubble flare connection and confirm the hose length and routing against the original part. Inspect nearby brackets, grommets, heat shields, bushings, and sleeves during service and replace worn components as needed to restore proper fit and protection.
Quality Assurance
Sunsong manufactures this return hose assembly to exceed original equipment performance standards for return-side steering service. The steel tubing, zinc plating, and exact-fit construction are intended to deliver consistent fitment and corrosion resistance for the Cadillac SRX application.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Cadillac | SRX | Gear To Cooler | — |
| 2008 | Cadillac | SRX | Gear To Cooler | — |
| 2007 | Cadillac | SRX | Gear To Cooler | — |
| 2006 | Cadillac | SRX | Gear To Cooler | — |
| 2005 | Cadillac | SRX | Gear To Cooler | — |
| 2004 | Cadillac | SRX | Gear To Cooler | — |
