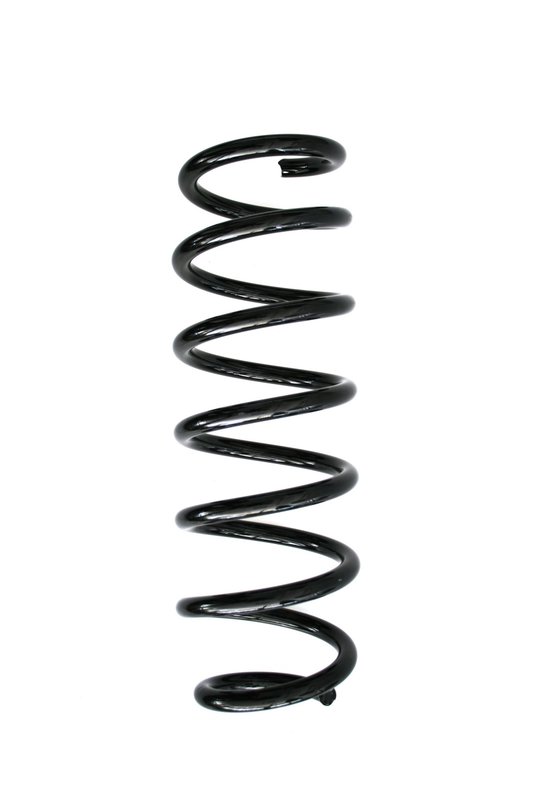

Suplex 06414 Coil Spring - Rear
Rear Coil Spring for BMW X3 and X4
Suplex 06414 is a rear coil spring for BMW X3 and BMW X4 applications with confirmed OE-based fitment. Built as a coil spring with constant wire diameter, it is specified for rear suspension use on vehicles with factory standard suspension or the listed OE reference.
- Brand: Suplex SUPLEX
- Part number: 06414
- Rear fitting position
- Coil spring with constant wire diameter
- Length: 378 mm
- Outer diameter: 122 mm
- Thickness: 13.00 mm
- Weight: 2.55
- OE reference noted for fitment: 33536787202
Product Details
The Suplex SUPLEX line focuses on suspension replacement parts built to match the application-specific dimensions required for proper rear ride height and spring rate behavior. This Suplex 06414 rear coil spring is listed for 2011-2015 BMW X3 rear on vehicles with factory standard suspension, 2016-2017 BMW X3 rear with OE No. 33536787202, and 2015-2018 BMW X4 rear with OE No. 33536787202. The part number 06414 is the key reference for ordering and catalog matching when servicing these BMW X3 and BMW X4 rear suspension applications.
Common Uses
- Restoring rear ride height after spring sag
- Replacing a broken or fatigued rear coil spring
- Addressing uneven rear stance on BMW X3 or BMW X4
- Correcting rear suspension noise caused by a damaged spring
- Returning factory-standard suspension geometry on listed vehicles
Installation Notes
Fits 2011-2015 BMW X3, rear, for vehicles with factory standard suspension. Fits 2016-2017 BMW X3, rear, with OE No. 33536787202. Fits 2015-2018 BMW X4, rear, with OE No. 33536787202. Verify the OE number and rear suspension configuration before installation. Spring replacement should be performed with proper suspension tools and in pairs when the opposite side shows similar wear.
Quality Assurance
Suplex suspension components are cataloged to OE application data and dimensional specifications for accurate replacement selection. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
| Brand | Suplex |
| Part Number | 06414 |
| Position | SUPLEX, Rear |
| Code | R2 |
| Fitting Position | Rear |
| Length | 378 |
| Outer diameter | 122 |
| Spring Design | Coil spring with constant wire diameter |
| Thickness | 13,00 |
| Weight | 2,55 |
This part fits 11 vehicles. Search below:
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2018 | BMW | X4 | Rear | With OE No. 33536787202; SUPLEX | |
| 2017 | BMW | X3 | Rear | With OE No. 33536787202; SUPLEX | |
| 2017 | BMW | X4 | Rear | With OE No. 33536787202; SUPLEX | |
| 2016 | BMW | X3 | Rear | With OE No. 33536787202; SUPLEX | |
| 2016 | BMW | X4 | xDrive28i | Rear | With OE No. 33536787202; SUPLEX |
| 2015 | BMW | X3 | Rear | For vehicles with factory standard suspension.; SUPLEX | |
| 2015 | BMW | X4 | Rear | With OE No. 33536787202; SUPLEX | |
| 2014 | BMW | X3 | Rear | For vehicles with factory standard suspension.; SUPLEX | |
| 2013 | BMW | X3 | Rear | For vehicles with factory standard suspension.; SUPLEX | |
| 2012 | BMW | X3 | Rear | For vehicles with factory standard suspension.; SUPLEX | |
| 2011 | BMW | X3 | Rear | For vehicles with factory standard suspension.; SUPLEX |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
