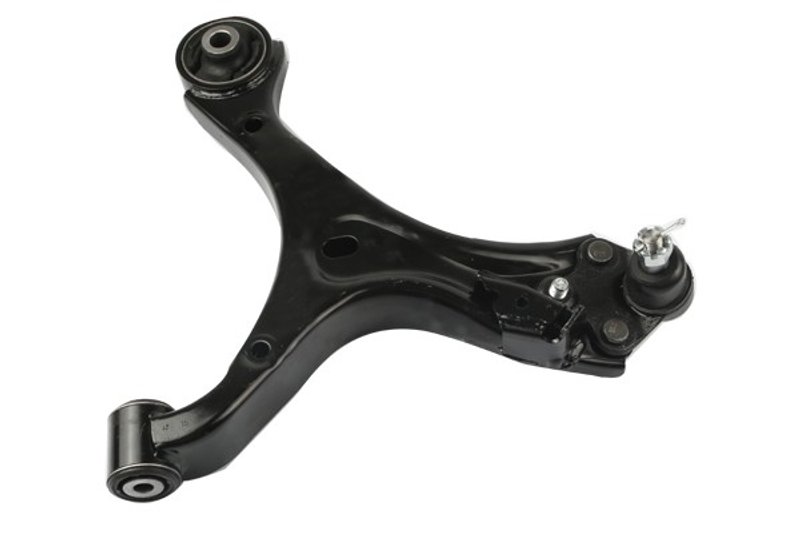

Suspensia X02CJ1402 Suspension Control Arm and Ball Joint Assembly - Front Right
| Brand | Suspensia X02CJ1402 |
|---|---|
| Position | Front Right |
| Material | Steel |
| Bushing Color | Black |
| Stud Thread Size | M14 x 2 |
| Pre-Greased | Yes |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Ball Joint Mounting Type | Bolt in |
| Ball Joint Stud Type | Threaded |
| Ball Joint Included | Yes |
| Cotter Pin Included | Yes |
| Grade Type | Regular |
| Housing Material | Steel |
| Boot Material | Rubber |
| Greaseable | No |
| Boot Color | Black |
| Bearing Material | Plastic |
| Bushing Material | Rubber |
| Wrench Size | 18 |
| Dust Boot Material | Rubber |
| 9906 | No |
| Lock Nut Included | No |
| Fits | Acura · 7 vehicles |
OE-style replacement. Direct-fit chassis part with factory-style appearance and dimensions.
Pre-greased assembly. Sealed ball joint design with a rubber dust boot for cleaner service.
Steel construction. Built with steel arm and housing components for suspension service.
Cross-references 51350TV9A01 for the same application. See all 1.
Overview
The Suspensia X02CJ1402 is a suspension control arm and ball joint assembly built for direct OE fit and OE look. It is engineered for the front right position on select Acura ILX applications and uses steel construction with a pre-greased, bolt-in ball joint design.
Key Features
- Steel control arm and housing construction for a durable chassis replacement.
- Pre-greased assembly with a sealed rubber dust boot.
- Bolt-in ball joint with threaded stud and included cotter pin.
- Rubber bushings and black finish for OE-style appearance.
- Castle nut included for a complete service replacement.
Detailed Description
Suspensia positions the X02CJ1402 as an OE-style chassis component manufactured to match factory fit and appearance. The assembly uses a steel arm and steel housing, a rubber boot, rubber bushings, and a plastic bearing material to support consistent suspension movement. The ball joint is pre-greased, non-greaseable, and secured with a bolt-in mounting design, making it a practical replacement for worn front suspension hardware on the Acura ILX. This part number, X02CJ1402, cross-references 51350TV9A01 for the same application.
Common Replacement Issues
- Clunking or knocking from a worn ball joint.
- Excessive play in the front suspension.
- Uneven tire wear caused by loose control arm components.
- Steering wander or reduced front-end stability.
Installation Notes
Fits 2016-2022 Acura ILX, front right. Verify the stud thread size, mounting style, and position before installation. The assembly includes a threaded ball joint stud, cotter pin, and castle nut; confirm all fasteners and torque specifications against the vehicle service information. Part number X02CJ1402 should be matched to the existing suspension layout before service.
Quality Assurance
Suspensia states that its chassis parts are direct OE fit and OE look products manufactured in a large automated facility. The brand also notes production under IATF 16949:2016, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, and ISO 50001:2018 certified systems.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2022 | Acura | ILX | 2.4L | L4 | Front Right | — |
| 2021 | Acura | ILX | 2.4L | L4 | Front Right | — |
| 2020 | Acura | ILX | 2.4L | L4 | Front Right | — |
| 2019 | Acura | ILX | 2.4L | L4 | Front Right | — |
| 2018 | Acura | ILX | 2.4L | L4 | Front Right | — |
| 2017 | Acura | ILX | 2.4L | L4 | Front Right | — |
| 2016 | Acura | ILX | 2.4L | L4 | Front Right | — |
