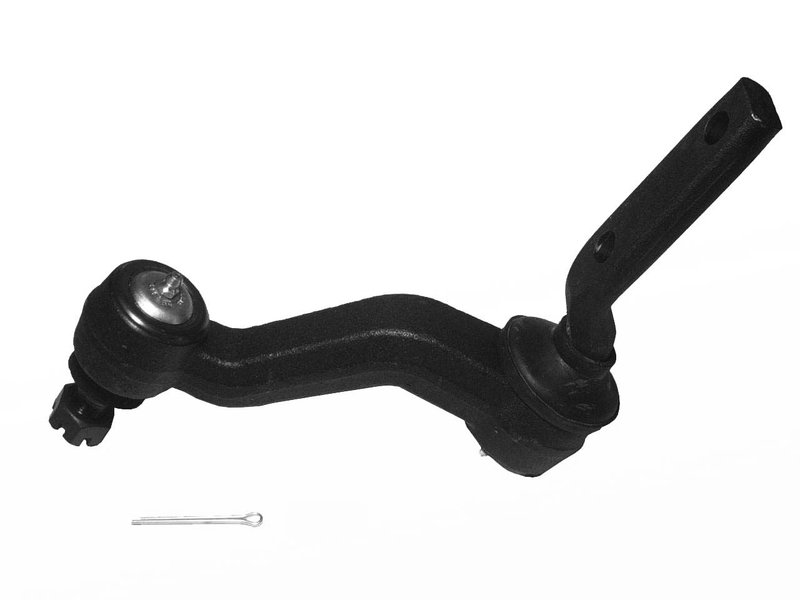

Suspensia X07ID0017 Steering Idler Arm - Front
| Brand | Suspensia X07ID0017 |
|---|---|
| Position | Front |
| Pre-Greased | Yes |
| Castle Nut Included | Yes |
| Arm Attachment Type | Bracket |
| Bracket Hole Quantity | 2 |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Cotter Pin Included | Yes |
| Grade Type | Regular |
| Greaseable | Yes |
| Attachment Method | Bolted |
| Integral Washer Included | Yes |
| Bolt Hole Center To Center | 143 |
| Hardware Included | Yes |
| Lock Nut Included | No |
| Fits | Chevrolet and GMC · 40 vehicles |
OE-fit replacement. Direct OE look for straightforward steering linkage service.
Serviceable design. Pre-greased with a grease fitting for routine maintenance.
Hardware details included. Supplied with a dust boot, cotter pin, castle nut, and washer.
Cross-references Delphi TC1640, Dorman - OE Solutions 541-124 and Mevotech Original Grade GK6331 for the same application. See all 11.
Steering Idler Arm Overview
This Suspensia steering idler arm is a direct OE-fit replacement for classic GM truck steering systems. It is built for front steering linkage service on Chevrolet and GMC C/K applications, with OE-style fit and hardware details that match the original layout.
Key Features
- Direct OE fit and OE look for straightforward replacement.
- Pre-greased design with a grease fitting for serviceability.
- Includes a dust boot, cotter pin, castle nut, and integral washer.
- Bolted bracket attachment with two bracket holes.
- Greaseable construction for routine maintenance.
- Suspensia part number X07ID0017.
Detailed Description
Suspensia part number X07ID0017 is a steering idler arm engineered for front steering linkage service on 1988-1992 Chevrolet C1500, C2500, C3500, and K1500, as well as 1988-1992 GMC C1500, C2500, C3500, and K1500. This component uses a bracket-style attachment with a bolted mounting method and a 143 mm bolt hole center-to-center measurement. The pre-greased, greaseable design with an included grease fitting supports regular chassis maintenance, while the dust boot helps protect the joint area. This part cross-references MOOG Chassis Products K6331 and Delphi TC1640 for the same application.
What It Is Used For
- Restoring steering linkage response when the idler arm is worn.
- Addressing steering play or looseness in the front end.
- Replacing a damaged or corroded steering support component.
- Correcting uneven steering feel caused by worn pivot hardware.
Installation Notes and Quality
Verify bracket style, bolt hole spacing, and front application before installation. Use the included cotter pin, castle nut, and washer during assembly, and grease the fitting after installation if required by service procedure. Suspensia states that its chassis parts are direct OE fit and OE look, and that production is carried out in certified facilities under IATF 16949:2016, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, and ISO 50001:2018 systems.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1992 | Chevrolet | C1500 | Front | — |
| 1992 | Chevrolet | C2500 | Front | — |
| 1992 | Chevrolet | C3500 | Front | — |
| 1992 | Chevrolet | K1500 | Front | — |
| 1992 | GMC | C1500 | Front | — |
| 1992 | GMC | C2500 | Front | — |
| 1992 | GMC | C3500 | Front | — |
| 1992 | GMC | K1500 | Front | — |
| 1991 | Chevrolet | C1500 | Front | — |
| 1991 | Chevrolet | C2500 | Front | — |
| 1991 | Chevrolet | C3500 | Front | — |
| 1991 | Chevrolet | K1500 | Front | — |
| 1991 | GMC | C1500 | Front | — |
| 1991 | GMC | C2500 | Front | — |
| 1991 | GMC | C3500 | Front | — |
| 1991 | GMC | K1500 | Front | — |
| 1990 | Chevrolet | C1500 | Front | — |
| 1990 | Chevrolet | C2500 | Front | — |
| 1990 | Chevrolet | C3500 | Front | — |
| 1990 | Chevrolet | K1500 | Front | — |
| 1990 | GMC | C1500 | Front | — |
| 1990 | GMC | C2500 | Front | — |
| 1990 | GMC | C3500 | Front | — |
| 1990 | GMC | K1500 | Front | — |
| 1989 | Chevrolet | C1500 | Front | — |
| 1989 | Chevrolet | C2500 | Front | — |
| 1989 | Chevrolet | C3500 | Front | — |
| 1989 | Chevrolet | K1500 | Front | — |
| 1989 | GMC | C1500 | Front | — |
| 1989 | GMC | C2500 | Front | — |
| 1989 | GMC | C3500 | Front | — |
| 1989 | GMC | K1500 | Front | — |
| 1988 | Chevrolet | C1500 | Front | — |
| 1988 | Chevrolet | C2500 | Front | — |
| 1988 | Chevrolet | C3500 | Front | — |
| 1988 | Chevrolet | K1500 | Front | — |
| 1988 | GMC | C1500 | Front | — |
| 1988 | GMC | C2500 | Front | — |
| 1988 | GMC | C3500 | Front | — |
| 1988 | GMC | K1500 | Front | — |
| No rows match your filter. | ||||
