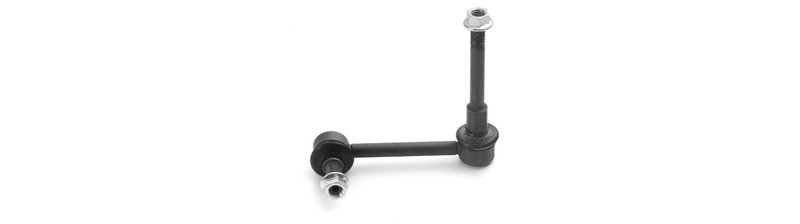

Suspensia X17SL4686 Suspension Stabilizer Bar Link - Rear Right
| Brand | Suspensia X17SL4686 |
|---|---|
| Position | Rear Right |
| Pre-Greased | Yes |
| Castle Nut Included | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Stud Type | Threaded |
| Grease Fittings Included | No |
| Cotter Pin Included | No |
| Washers Included | No |
| Grade Type | Regular |
| Bolts Included | No |
| Housing Material | Steel |
| Greaseable | No |
| Bearing Material | Plastic |
| Overall Length | 122 |
| 9725 | 10 |
| Lock Nuts Included | Yes |
| Sleeves Included | No |
| Fits | Acura · 15 vehicles |
OE fit. Direct replacement chassis part with OE look and factory-style dimensions.
Pre-greased design. Ready for service with a dust boot included and no grease fittings.
Steel housing. Built with a threaded ball joint stud and lock nut for suspension linkage service.
Cross-references 52330SL0013, K750319 and MS60854 for the same application. See all 3.
Overview
Suspensia X17SL4686 is a rear right suspension stabilizer bar link built as a direct OE-fit replacement. It is engineered for the Acura NSX and uses a threaded ball joint stud, steel housing, and a pre-greased design for straightforward service replacement.
Key Features
- Direct OE fit and OE look for suspension service.
- Pre-greased construction with a dust boot included.
- Steel housing with a threaded ball joint stud.
- Lock nut included; bushings, bolts, and grease fittings are not included.
- Fits 1991-2005 Acura NSX, rear right.
Detailed Description
This Suspensia stabilizer bar link, part number X17SL4686, is made for the rear right position on the Acura NSX. It is a suspension linkage component that helps restore proper connection between the stabilizer bar and suspension assembly when the original link is worn, noisy, or loose. The design includes a plastic bearing material, regular grade hardware specification, and a threaded stud layout for OE-style service replacement. Suspensia states that its chassis parts are produced in a large automated OE manufacturing facility and built to OE or better quality standards. The part number X17SL4686 also cross-references Monroe Shocks & Struts (e.g., 52330SL0013, K750319) for the same application.
Common Uses
- Clunking or rattling from a worn stabilizer bar link.
- Excess play in the rear suspension linkage.
- Restoring stabilizer bar connection after link wear or corrosion.
- Replacing a damaged threaded link assembly.
Installation Notes
Verify the rear right fitment before installation on 1991-2005 Acura NSX applications. Match the threaded stud style and overall length to the original part, and confirm that the included lock nut is used during assembly. Because bushings, bolts, and grease fittings are not included, reuse or source any additional components required by the vehicle.
Quality Assurance
Suspensia manufactures chassis parts in an IATF 16949:2016, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, and ISO 50001:2018 certified facility.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Acura | NSX | Rear Right | — |
| 2004 | Acura | NSX | Rear Right | — |
| 2003 | Acura | NSX | Rear Right | — |
| 2002 | Acura | NSX | Rear Right | — |
| 2001 | Acura | NSX | Rear Right | — |
| 2000 | Acura | NSX | Rear Right | — |
| 1999 | Acura | NSX | Rear Right | — |
| 1998 | Acura | NSX | Rear Right | — |
| 1997 | Acura | NSX | Rear Right | — |
| 1996 | Acura | NSX | Rear Right | — |
| 1995 | Acura | NSX | Rear Right | — |
| 1994 | Acura | NSX | Rear Right | — |
| 1993 | Acura | NSX | Rear Right | — |
| 1992 | Acura | NSX | Rear Right | — |
| 1991 | Acura | NSX | Rear Right | — |
