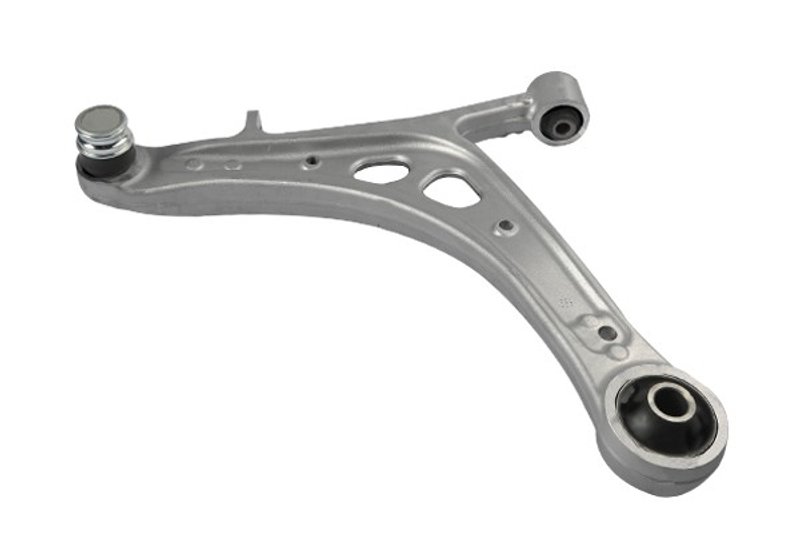

Suspensia X47CJ1096 Suspension Control Arm and Ball Joint Assembly - Front Left
Suspension Control Arm Assembly for Subaru Impreza
Restore front suspension geometry with this Suspensia suspension control arm and ball joint assembly. It is built with a forged aluminum arm, a press-in ball joint, and pre-greased components for direct OE-style service on the front left side.
- Fits 2008-2010 Subaru Impreza, front left
- Forged aluminum arm construction
- Ball joint included with threaded stud design
- Pre-greased for initial installation
- Rubber bushings and dust boot included
- Castle nut and cotter pin included
- Steel housing with black bushing and boot components
- Part number X47CJ1096
OE-Style Replacement Details
Suspensia X47CJ1096 is a front left suspension control arm and ball joint assembly made for 2008-2010 Subaru Impreza applications. The forged aluminum arm is paired with a press-in ball joint, rubber bushings, and a rubber dust boot to match OE fit and appearance. This part cross-references Dorman OE Solutions 524-593 for the same application. X47CJ1096 is a direct-fit chassis component for Subaru Impreza front suspension service where worn joints, bushings, or arm wear have affected steering response and alignment.
Common Repair Uses
- Front-end clunking or knocking from a worn control arm or ball joint
- Uneven tire wear caused by suspension looseness
- Steering wander or reduced straight-line stability
- Alignment issues after front suspension wear
- Cracked or deteriorated bushings on the Subaru Impreza front left side
Installation Notes
Verify front left position before installation and inspect related suspension hardware, alignment angles, and adjacent steering components. Because the ball joint is press-in and the assembly includes a threaded stud, proper torque procedures and a professional alignment are recommended after replacement. Confirm fitment by year, make, model, and position before ordering.
Quality Assurance
Suspensia manufactures OE or better quality chassis parts in automated facilities in Turkiye and builds to OE fit and OE appearance standards. The brand’s production environment is certified to IATF 16949:2016, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, and ISO 50001:2018 quality and management systems.
| Brand | Suspensia |
|---|---|
| Part Number | X47CJ1096 |
| Material | Forged aluminum |
| Bushing Color | Black |
| Stud Thread Size | M12 x 1.25 |
| Pre-Greased | Yes |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Mounting Type | Press in |
| Ball Joint Stud Type | Threaded |
| Ball Joint Included | Yes |
| Cotter Pin Included | Yes |
| Grade Type | Regular |
| Housing Material | Steel |
| Boot Material | Rubber |
| Greaseable | No |
| Boot Color | Black |
| Bearing Material | Plastic |
| Bushing Material | Rubber |
| Wrench Size | 19 |
| Dust Boot Material | Rubber |
| 9906 | No |
| Lock Nut Included | No |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2010 | Subaru | Impreza | WRX STI | Front Left | |
| 2009 | Subaru | Impreza | WRX STI | Front Left | |
| 2008 | Subaru | Impreza | WRX STI | Front Left |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
