Home› Transmission > Transmission Hard Parts› TC Remanufacturing 787 Automatic Transmission Torque Converter
TC Remanufacturing 787 Automatic Transmission Torque ConverterOE Quality 60-Day Returns

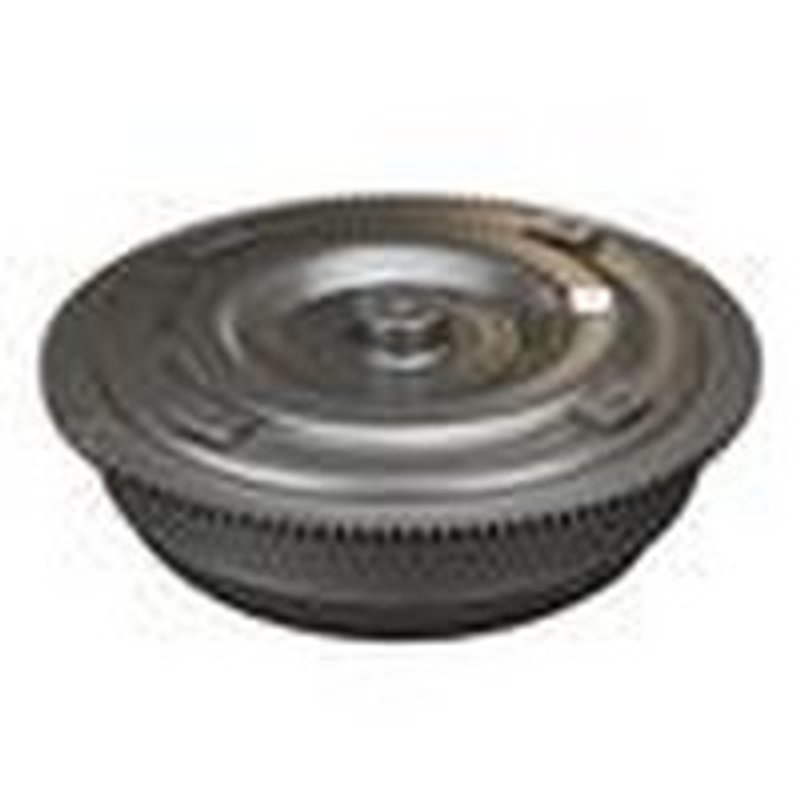

TC Remanufacturing 787 Automatic Transmission Torque Converter - view 1
TC Remanufacturing 787 Automatic Transmission Torque Converter - view 2
Part #: 787

TC Remanufacturing 787 Automatic Transmission Torque Converter

⚙️ 157 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$295.18Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Dodge and Jeep, Ram 1500, Dakota, Durango, Ram 1500 Van, Ram 2500, Ram 2500 Van, Ram 3500, Ram 3500 Van, B1500, B2500, B3500, Grand Cherokee, and B250
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Automatic Transmission Torque Converter options

Overview of TC Remanufacturing Torque Converter 787

The TC Remanufacturing Automatic Transmission Torque Converter part number 787 is designed for select Dodge and Jeep vehicles. This lock-up type torque converter offers precise fitment and reliable performance for models including the Dodge Ram 1500, Ram 2500, Ram 3500, and Jeep Grand Cherokee.

  • Compatible with Dodge and Jeep models such as B1500, B2500, B3500, Dakota, Durango, Grand Cherokee, Ram 1500, Ram 2500, and Ram 3500
  • Lock-up converter type with a 2300-2600 stall speed
  • 11.000 inch converter diameter and 10.000 inch bolt circle
  • Slotted hub type with 23 splines for secure engagement
  • Includes ring gear with 130 wide tooth count
  • Thin mounting type with 1.810 inch pilot diameter
  • Compatible with converter codes 591, 595, 767, 785, 787, and red or green sticker variants

Detailed Product Description

This TC Remanufacturing torque converter (part number 787) is engineered to meet the specifications required by various Dodge and Jeep automatic transmissions. The lock-up design improves fuel efficiency by eliminating slippage at cruising speeds. Its 11-inch diameter and 10-inch bolt circle ensure proper alignment and fitment within the transmission housing. The slotted hub with 23 splines provides a secure connection to the transmission input shaft, while the included ring gear with 130 wide teeth supports the torque converter’s engagement with the flexplate.

The thin mounting type and 1.810-inch pilot diameter allow for precise installation in compatible transmissions. This torque converter is suitable for vehicles equipped with converter codes 591, 595, 767, 785, 787, or those identified by red or green stickers, ensuring compatibility with a range of Dodge Ram and Jeep models.

Common Applications and Problem Solving

  • Restores proper torque transfer in Dodge Ram 1500 and Jeep Grand Cherokee automatic transmissions
  • Addresses slipping or shuddering issues during acceleration
  • Eliminates overheating caused by inefficient torque converter lock-up
  • Resolves delayed engagement or poor throttle response
  • Replaces worn or damaged torque converters in Ram 2500 and Ram 3500 vans

Installation Notes and Tips

  • Verify converter code compatibility before installation to ensure proper fit
  • Inspect the flexplate and transmission input shaft splines for wear
  • Use proper torque specifications on the 10-inch bolt circle mounting bolts
  • Ensure the pilot diameter seats fully to avoid misalignment
  • Flush transmission fluid and replace filter during installation for optimal performance

Quality Assurance and Warranty

TC Remanufacturing torque converters undergo rigorous testing to meet OEM standards for durability and performance. Part number 787 is remanufactured to provide consistent stall speed and lock-up function. Warranty coverage details should be confirmed with the distributor or installer, as terms may vary.

BrandTC Remanufacturing
Part Number787
Bolt Circle10.000
Converter Codes591, 595, 767, 785, 787, Red or Green Sticker
Converter Diameter11.000
Converter TypeLock Up
Hub TypeSlotted
Mounting TypeThin
Pilot Diameter1.810
Ring GearYes
Ring Gear Tooth Count130 Wide
Spline Count23
Stall2300-2600

This part fits 157 vehicles. Search below:

YearMakeModelLitersCylindersPositionNotes
2004DodgeRam 15004.7LV8N/A
2004DodgeRam 15003.7LV6N/A
2003DodgeDakota5.9LV8N/A
2003DodgeDakota4.7LV8N/A
2003DodgeDakota3.9LV6N/A
2003DodgeDurango5.9LV8N/A
2003DodgeRam 15004.7LV8N/A
2003DodgeRam 15005.9LV8N/A
2003DodgeRam 15005.7LV8N/A
2003DodgeRam 15003.7LV6N/A
2003DodgeRam 1500 Van3.9LV6N/A
2003DodgeRam 1500 Van5.2LV8N/A
2003DodgeRam 1500 Van5.9LV8N/A
2003DodgeRam 25005.9LL6N/A
2003DodgeRam 25005.7LV8N/A
2003DodgeRam 2500 Van5.2LV8N/A
2003DodgeRam 2500 Van5.9LV8N/A
2003DodgeRam 35005.9LL6N/A
2003DodgeRam 35005.7LV8N/A
2003DodgeRam 3500 Van5.2LV8N/A
2003DodgeRam 3500 Van5.9LV8N/A
2002DodgeDakota4.7LV8N/A
2002DodgeDakota5.9LV8N/A
2002DodgeDakota3.9LV6N/A
2002DodgeDurango4.7LV8N/A
2002DodgeDurango5.9LV8N/A
2002DodgeRam 15004.7LV8N/A
2002DodgeRam 15005.9LV8N/A
2002DodgeRam 15003.7LV6N/A
2002DodgeRam 1500 Van3.9LV6N/A
2002DodgeRam 1500 Van5.2LV8N/A
2002DodgeRam 1500 Van5.9LV8N/A
2002DodgeRam 25005.9LV8N/A
2002DodgeRam 25005.9LL6N/A
2002DodgeRam 2500 Van5.2LV8N/A
2002DodgeRam 2500 Van5.9LV8N/A
2002DodgeRam 35005.9LV8N/A
2002DodgeRam 35005.9LL6N/A
2002DodgeRam 3500 Van5.2LV8N/A
2002DodgeRam 3500 Van5.9LV8N/A
2001DodgeDakota5.9LV8N/A
2001DodgeDakota4.7LV8N/A
2001DodgeDakota3.9LV6N/A
2001DodgeDurango4.7LV8N/A
2001DodgeDurango5.9LV8N/A
2001DodgeRam 15003.9LV6N/A
2001DodgeRam 15005.2LV8N/A
2001DodgeRam 15005.9LV8N/A
2001DodgeRam 1500 Van3.9LV6N/A
2001DodgeRam 1500 Van5.2LV8N/A
2001DodgeRam 1500 Van5.9LV8N/A
2001DodgeRam 25005.9LV8N/A
2001DodgeRam 25005.9LL6N/A
2001DodgeRam 2500 Van3.9LV6N/A
2001DodgeRam 2500 Van5.2LV8N/A
2001DodgeRam 2500 Van5.9LV8N/A
2001DodgeRam 35008.0LV10N/A
2001DodgeRam 35005.9LV8N/A
2001DodgeRam 35005.9LL6N/A
2001DodgeRam 3500 Van5.2LV8N/A
2001DodgeRam 3500 Van5.9LV8N/A
2000DodgeDakota5.9LV8N/A
2000DodgeDakota4.7LV8N/A
2000DodgeDakota3.9LV6N/A
2000DodgeDurango4.7LV8N/A
2000DodgeDurango5.2LV8N/A
2000DodgeDurango5.9LV8N/A
2000DodgeRam 15003.9LV6N/A
2000DodgeRam 15005.2LV8N/A
2000DodgeRam 15005.9LV8N/A
2000DodgeRam 1500 Van3.9LV6N/A
2000DodgeRam 1500 Van5.2LV8N/A
2000DodgeRam 1500 Van5.9LV8N/A
2000DodgeRam 25005.9LV8N/A
2000DodgeRam 25005.9LL6N/A
2000DodgeRam 2500 Van5.2LV8N/A
2000DodgeRam 2500 Van5.9LV8N/A
2000DodgeRam 35008.0LV10N/A
2000DodgeRam 35005.9LV8N/A
2000DodgeRam 35005.9LL6N/A
2000DodgeRam 3500 Van5.2LV8N/A
2000DodgeRam 3500 Van5.9LV8N/A
1999DodgeDakota5.9LV8N/A
1999DodgeDurango3.9LV6N/A
1999DodgeDurango5.2LV8N/A
1999DodgeDurango5.9LV8N/A
1999DodgeRam 15003.9LV6N/A
1999DodgeRam 15005.2LV8N/A
1999DodgeRam 15005.9LV8N/A
1999DodgeRam 1500 Van3.9LV6N/A
1999DodgeRam 1500 Van5.2LV8N/A
1999DodgeRam 1500 Van5.9LV8N/A
1999DodgeRam 25005.9LV8N/A
1999DodgeRam 25005.9LL6N/A
1999DodgeRam 2500 Van5.2LV8N/A
1999DodgeRam 2500 Van5.9LV8N/A
1999DodgeRam 35005.9LV8N/A
1999DodgeRam 35005.9LL6N/A
1999DodgeRam 3500 Van5.2LV8N/A
1999DodgeRam 3500 Van5.9LV8N/A
1998DodgeB15003.9LV6N/A
1998DodgeB15005.2LV8N/A
1998DodgeB15005.9LV8N/A
1998DodgeB25005.2LV8N/A
1998DodgeB25005.9LV8N/A
1998DodgeB35005.2LV8N/A
1998DodgeB35005.9LV8N/A
1998DodgeDakota5.9LV8N/A
1998DodgeDurango3.9LV6N/A
1998DodgeDurango5.2LV8N/A
1998DodgeDurango5.9LV8N/A
1998DodgeRam 15003.9LV6N/A
1998DodgeRam 15005.2LV8N/A
1998DodgeRam 15005.9LV8N/A
1998DodgeRam 25005.9LV8N/A
1998DodgeRam 25005.9LL6N/A
1998DodgeRam 35005.9LV8N/A
1998DodgeRam 35005.9LL6N/A
1998JeepGrand Cherokee5.9LV8N/A
1997DodgeB15003.9LV6N/A
1997DodgeB15005.2LV8N/A
1997DodgeB25003.9LV6N/A
1997DodgeB25005.2LV8N/A
1997DodgeB25005.9LV8N/A
1997DodgeB35005.2LV8N/A
1997DodgeB35005.9LV8N/A
1997DodgeRam 15003.9LV6N/A
1997DodgeRam 15005.2LV8N/A
1997DodgeRam 15005.9LV8N/A
1997DodgeRam 25005.9LV8N/A
1997DodgeRam 25005.9LL6N/A
1997DodgeRam 35005.9LV8N/A
1997DodgeRam 35005.9LL6N/A
1996DodgeB15005.2LV8N/A
1996DodgeB15003.9LV6N/A
1996DodgeB25003.9LV6N/A
1996DodgeB25005.2LV8N/A
1996DodgeB25005.9LV8N/A
1996DodgeB35005.2LV8N/A
1996DodgeB35005.9LV8N/A
1996DodgeDakota5.2LV8N/A
1996DodgeRam 15003.9LV6N/A
1996DodgeRam 15005.2LV8N/A
1996DodgeRam 15005.9LV8N/A
1996DodgeRam 25005.2LV8N/A
1996DodgeRam 25005.9LV8N/A
1996DodgeRam 25005.9LL6N/A
1996DodgeRam 35005.9LV8N/A
1996DodgeRam 35005.9LL6N/A
1995DodgeRam 25005.2LV8N/A
1995JeepGrand Cherokee4.0LL6N/A
1995JeepGrand Cherokee5.2LV8N/A
1994DodgeB2505.9LV8N/A
1994DodgeRam 15005.9LV8N/A
1994DodgeRam 25005.2LV8N/A
1994JeepGrand Cherokee4.0LL6N/A
1993JeepGrand Cherokee4.0LL6N/A

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
