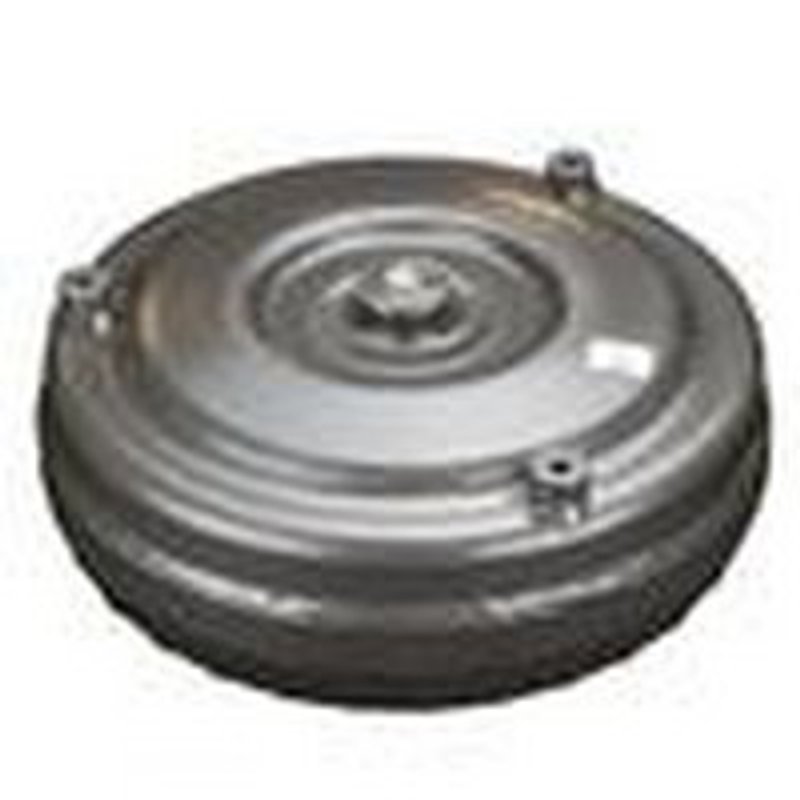

TC Remanufacturing B16BBD Automatic Transmission Torque Converter

Automatic Transmission Torque Converter for GM Applications

TC Remanufacturing B16BBD is a lock-up automatic transmission torque converter built for select Chevrolet, GMC, Buick, Pontiac, Oldsmobile, and Cadillac rear-wheel-drive applications. With a 12.000-inch converter diameter, 2025 RPM stall, and 30-spline slotted hub, it is specified for vehicles that use converter codes BB, BB4C, BB4D, BB8D, or BB8F.

This B16BBD torque converter is a direct-fit option for many classic GM platforms, including Chevrolet C10, C20, K10, K20, Caprice, El Camino, Monte Carlo, and Pontiac Grand Prix applications. It is also listed for several GMC and Cadillac models where the original transmission setup calls for this converter configuration.

Key Features

• Part number: B16BBD
• Automatic transmission torque converter
• Lock-up converter type
• 12.000-inch converter diameter
• 2025 RPM stall speed
• 30-spline count
• Slotted hub type
• 3-pad mounting design
• 10.750 bolt circle
• Pilot diameter: 1.703
• No ring gear
• Converter codes: BB, BB4C, BB4D, BB8D, BB8F

Detailed Description

TC Remanufacturing B16BBD is an automatic transmission torque converter engineered around the listed GM converter specifications. The lock-up design, 12-inch diameter, 30-spline hub, and 3-pad mounting pattern make it a fitment-specific replacement for vehicles that require the matching converter code and stall characteristics. For shoppers searching for a Chevrolet C10 torque converter, Pontiac Grand Prix torque converter, or GMC C1500 torque converter, this unit provides the correct application-focused specification set.

Vehicle coverage includes 1980-1984 Chevrolet C10 and C20, 1981-1983 Chevrolet K20, 1982-1983 Chevrolet K10, 1980-1982 Chevrolet Caprice, El Camino, Malibu, Monte Carlo, and Impala, plus 1980-1984 Pontiac Grand Prix and 1980-1983 Buick Regal. The B16BBD part number also appears in fitment for 1980-1984 GMC C1500 and C2500, 1982-1984 GMC C1500, and select Cadillac, Oldsmobile, and Pontiac rear-drive models.

What This Part Helps Address

• Transmission shudder or poor lock-up operation from a worn converter
• Incorrect stall speed affecting drivability and launch feel
• Vibration or engagement issues tied to converter wear
• Fitment problems when the converter code does not match the transmission
• Loss of smooth power transfer between engine and automatic transmission

Installation Notes and Tips

Verify the converter code on the original unit before installation and match it to BB, BB4C, BB4D, BB8D, or BB8F as listed. Confirm the 10.750 bolt circle, 1.703 pilot diameter, 30-spline count, and 3-pad mounting style against the transmission and flexplate setup. Because fitment varies by year and model, use the exact vehicle listing for your Chevrolet, GMC, Pontiac, Buick, Oldsmobile, or Cadillac application before ordering.

• Fits 1982-1984 Chevrolet C10
• Fits 1982-1984 Chevrolet C20
• Fits 1981-1983 Chevrolet K20
• Fits 1982-1983 Chevrolet K10
• Fits 1980-1982 Chevrolet Caprice
• Fits 1980-1982 Chevrolet El Camino
• Fits 1980-1982 Chevrolet Malibu
• Fits 1980-1982 Chevrolet Monte Carlo
• Fits 1982-1984 GMC C1500
• Fits 1980-1984 Pontiac Grand Prix
• Fits 1980-1983 Buick Regal
• Fits 1981-1983 Oldsmobile 98
• Fits 1982 Cadillac DeVille
• Fits 1982 Cadillac Fleetwood

Quality Assurance

TC Remanufacturing supplies remanufactured drivetrain components for application-specific replacement needs. This B16BBD torque converter is built to the listed specifications for direct vehicle matching across the confirmed GM fitment range.
