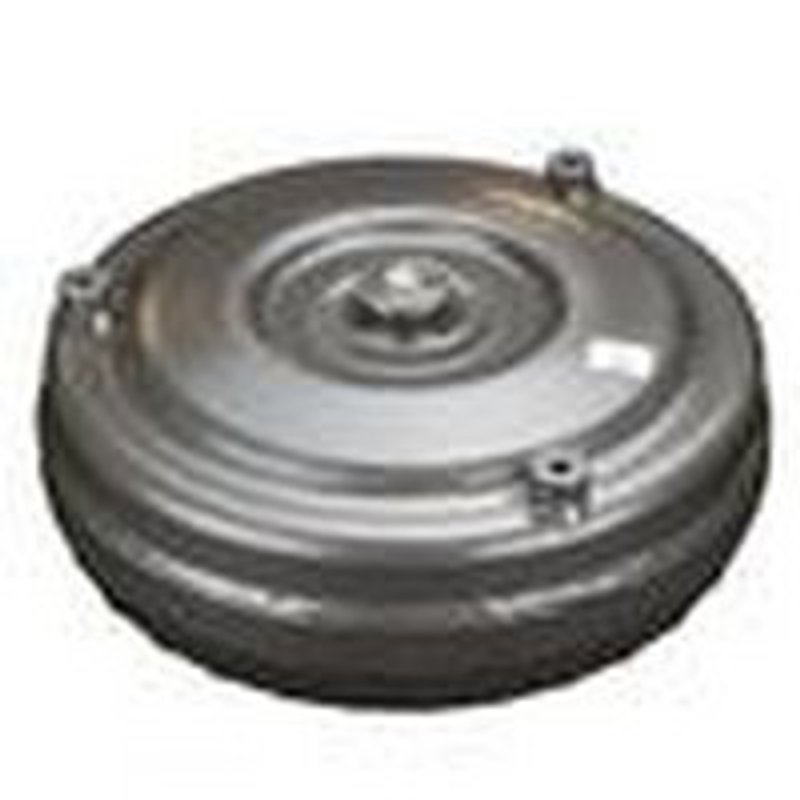

TC Remanufacturing B16BED Automatic Transmission Torque Converter

Automatic Transmission Torque Converter for GM Applications

TC Remanufacturing B16BED is a lock-up automatic transmission torque converter built for a wide range of Chevrolet, GMC, Buick, Oldsmobile, and Pontiac vehicles. With a 12.000-inch converter diameter, 10.750 bolt circle, and 1654 RPM stall, it matches the needs of many GM rear-wheel-drive and light-duty truck applications.

Key Features

• Part number: B16BED
• Automatic transmission torque converter
• Lock-up converter type
• 12.000-inch converter diameter
• 10.750 bolt circle
• 3-pad mounting type
• Slotted hub type
• 1.703 pilot diameter
• 30-spline count
• 1654 RPM stall speed
• Converter codes: BE, BE4C, BE4D, BE8D, BE8F, BF, BF4C
• No ring gear

Detailed Description

This TC Remanufacturing torque converter is specified for GM automatic transmissions that use the listed converter codes and mounting pattern. The lock-up design supports efficient highway operation, while the 12-inch diameter and 1654 RPM stall help match drivability requirements for many classic Chevrolet C10, C20, K10, K20, and GMC C/K truck platforms, along with selected Buick, Oldsmobile, and Pontiac passenger cars. The B16BED is a direct-fit service part for applications that require the listed spline count, pilot diameter, and 3-pad mounting configuration.

This part cross-references common OE-style applications for the same GM fitments.

What It Is Used For

• Replacing a worn or slipping torque converter
• Restoring lock-up operation in GM automatic transmissions
• Addressing shudder, flare, or delayed engagement concerns tied to converter wear
• Correcting vibration or drivability issues related to an incorrect stall speed
• Servicing vehicles that require BE/BF-series converter codes

Installation Notes and Tips

Verify transmission code, converter code, spline count, pilot diameter, bolt circle, and mounting style before installation. Confirm the application uses a 12.000-inch, 30-spline lock-up converter with a 3-pad mount and no ring gear. For best results, inspect the transmission fluid, cooler, and front pump condition before installing the B16BED in Chevrolet C10, GMC G3500, or Pontiac Grand Prix applications.

Quality Assurance

TC Remanufacturing supplies remanufactured drivetrain components for service replacement use. This torque converter is built to match the listed specifications and fitment data for the confirmed GM applications.
