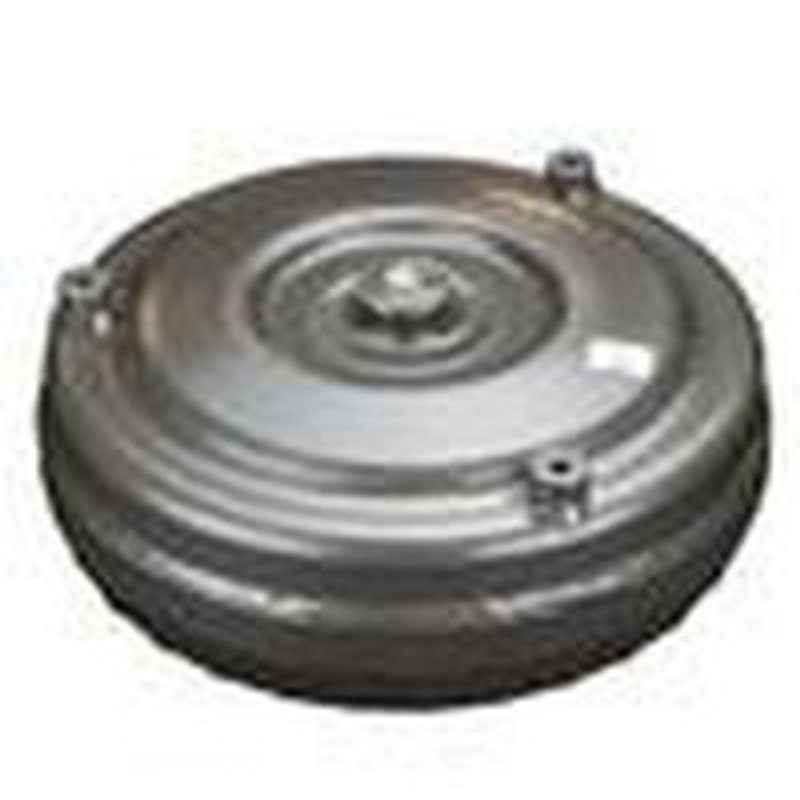

TC Remanufacturing B16BGD Automatic Transmission Torque Converter

TC Remanufacturing B16BGD Torque Converter

The TC Remanufacturing B16BGD is a lock-up automatic transmission torque converter built for select GM and performance-era applications. It features a 12.000-inch converter diameter, 30 spline count, 3-pad mounting, and a low 1397 RPM stall for controlled drivability.

Use this B16BGD torque converter when you need a direct-fit replacement for vehicles using converter codes BG, BG4C, BG8D, L7, M7, or P6. It is a slotted-hub unit with a 10.750 bolt circle and a 1.703 pilot diameter.

Key Features

• Part number: B16BGD
• Automatic transmission torque converter
• Lock-up converter type
• 12.000-inch converter diameter
• 30 spline count
• 3-pad mounting type
• Slotted hub design
• 10.750 bolt circle
• 1.703 pilot diameter
• Low 1397 RPM stall
• No ring gear
• Converter codes: BG, BG4C, BG8D, L7, M7, P6

Application Details

This TC Remanufacturing torque converter is used in a wide range of Chevrolet, GMC, Buick, Oldsmobile, Pontiac, and Cadillac rear-wheel-drive applications. It is listed for models such as Chevrolet C10, K10, Corvette, Camaro, GMC C1500, Pontiac Firebird, Buick Regal, Oldsmobile Cutlass, and Cadillac DeVille across the confirmed year coverage shown below.

• Fits 1986 Chevrolet C10, N/A
• Fits 1982-1984 Chevrolet C10, N/A
• Fits 1986 Chevrolet C20, N/A
• Fits 1982-1984 Chevrolet C20, N/A
• Fits 1986 Chevrolet C30, N/A
• Fits 1982-1984 Chevrolet C30, N/A
• Fits 1986 Chevrolet K10, N/A
• Fits 1982-1983 Chevrolet K10, N/A
• Fits 1981-1983 Chevrolet K20, N/A
• Fits 1982-1983 Chevrolet K30, N/A
• Fits 1981 Chevrolet Camaro, N/A
• Fits 1981 Chevrolet Corvette, N/A
• Fits 1980-1984 Chevrolet Caprice, N/A
• Fits 1980-1984 Chevrolet El Camino, N/A
• Fits 1980-1984 Chevrolet Impala, N/A
• Fits 1980-1984 Chevrolet Monte Carlo, N/A
• Fits 1980-1983 Chevrolet Malibu, N/A
• Fits 1986 GMC C1500, N/A
• Fits 1982-1984 GMC C1500, N/A
• Fits 1986 GMC G2500, N/A
• Fits 1982-1984 GMC G2500, N/A
• Fits 1984-1985 GMC G3500, N/A
• Fits 1980-1985 Buick LeSabre, N/A
• Fits 1980-1983 Buick Regal, N/A
• Fits 1980-1984 Oldsmobile Cutlass Supreme, N/A
• Fits 1980-1983 Oldsmobile Delta 88, N/A
• Fits 1982-1983 Oldsmobile Toronado, N/A
• Fits 1980-1984 Pontiac Bonneville, N/A
• Fits 1980-1984 Pontiac Grand Prix, N/A
• Fits 1981 Pontiac Firebird, N/A
• Fits 1969-1975 Pontiac Firebird, N/A

Common Issues This Part Addresses

• Restores proper torque converter lock-up operation
• Replaces a worn or slipping converter in GM automatic transmissions
• Helps correct drivability concerns tied to incorrect stall speed
• Addresses fitment problems caused by mismatched spline count or pilot diameter
• Supports replacement of converters identified by BG, BG4C, BG8D, L7, M7, or P6 codes

Installation Notes and Tips

Verify the transmission’s converter code, spline count, bolt circle, pilot diameter, and mounting style before installation. This B16BGD uses a 30 spline count, 10.750 bolt circle, 3-pad mounting, and slotted hub, so matching the original unit is important for proper engagement.

Confirm the vehicle application against the listed fitment before ordering, especially on Chevrolet C10, GMC C1500, and Pontiac Firebird applications where multiple converter variants were used across the same model years.

Quality Assurance

TC Remanufacturing supplies remanufactured drivetrain components for transmission service, and the B16BGD is specified with the core dimensions and converter codes needed for accurate replacement selection. This part cross-references no additional part numbers in the provided data.
