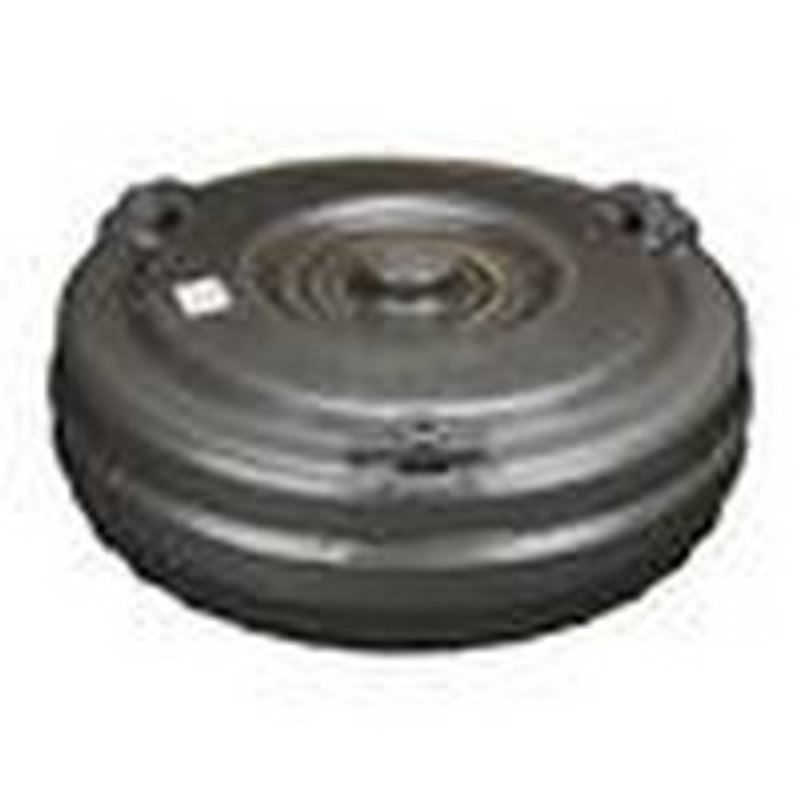

TC Remanufacturing B29DLLF Automatic Transmission Torque Converter

Automatic Transmission Torque Converter

TC Remanufacturing B29DLLF is a lock-up automatic transmission torque converter built for GM truck, van, and performance applications that use the DLLF-family converter codes. With a 12.000-inch converter diameter, 10.750 bolt circle, and 1654 RPM stall, this unit is specified for drivability and torque transfer in a wide range of Chevrolet, GMC, Pontiac, Buick, Cadillac, and Isuzu applications.

Use TC Remanufacturing B29DLLF when you need a direct-fit automatic transmission torque converter for vehicles such as the Chevrolet C1500, GMC Savana 2500, and Pontiac Firebird. The slotted hub, 3-pad mounting style, and 30-spline design help match the original transmission interface on listed applications.

Key Features

• Part number: B29DLLF
• Automatic transmission torque converter
• Lock-up converter type
• 12.000-inch converter diameter
• 10.750 bolt circle
• 3-pad mounting type
• Slotted hub type
• 1.703 pilot diameter
• 30-spline count
• 1654 RPM stall speed
• Converter codes: DCLF, DELF, DF5F, DF6F, DFLF, DLLF
• No ring gear

Detailed Description

This TC Remanufacturing torque converter is built around the listed converter codes and physical dimensions to support proper transmission engagement and torque multiplication in compatible GM and related applications. It is a lock-up design, which helps maintain efficient highway operation in vehicles originally equipped with a lock-up converter. The B29DLLF is commonly searched for Chevrolet C1500 torque converter replacement, GMC Savana 1500 torque converter replacement, and Pontiac Firebird automatic transmission service.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Shudder or slip from a worn torque converter clutch
• Delayed or inconsistent torque transfer during acceleration
• Converter code mismatch during transmission rebuilds
• Incorrect stall speed after transmission service
• Fitment issues caused by the wrong bolt circle, spline count, or hub style

Installation Notes and Tips

Verify the transmission code, converter code, bolt circle, spline count, pilot diameter, and mounting style before installation. Confirm the vehicle’s original converter code against DCLF, DELF, DF5F, DF6F, DFLF, or DLLF applications, especially on 1980s and 1990s GM trucks, vans, and passenger cars. Proper transmission flush, inspection of the front pump, and checking the flexplate and cooler circuit are recommended during replacement.

• Fits 1996-1997 Chevrolet C1500
• Fits 1996-1997 Chevrolet Express 1500
• Fits 1996-1997 Chevrolet Express 2500
• Fits 1996-1997 Chevrolet K1500
• Fits 1988 Chevrolet K1500
• Fits 1996-1997 GMC Savana 1500
• Fits 1996-1997 GMC Savana 2500
• Fits 1995 Chevrolet Astro
• Fits 1985-1995 Chevrolet G10
• Fits 1985-1995 Chevrolet G20
• Fits 1985-1995 Chevrolet G30
• Fits 1985-1995 GMC Safari
• Fits 1994 Chevrolet Blazer
• Fits 1991-1993 GMC Sonoma
• Fits 1990-1992 Cadillac Brougham
• Fits 1991-1992 Chevrolet Commercial Chassis
• Fits 1992 Pontiac Firebird
• Fits 1984-1987 Pontiac Firebird
• Fits 1991 Chevrolet S10
• Fits 1988-1991 GMC S15 Jimmy
• Fits 1991 Isuzu Pickup
• Fits 1988-1989 GMC S15
• Fits 1988 Buick LeSabre
• Fits 1988 Chevrolet K2500
• Fits 1985-1988 Chevrolet Monte Carlo
• Fits 1987-1988 Chevrolet R20
• Fits 1987-1988 Chevrolet R30
• Fits 1987-1988 Chevrolet V30
• Fits 1987-1988 GMC R3500
• Fits 1987-1988 GMC V3500
• Fits 1988 Pontiac Safari
• Fits 1984-1987 Chevrolet Camaro
• Fits 1985-1987 Chevrolet El Camino
• Fits 1987 Chevrolet R10
• Fits 1987 Chevrolet V10
• Fits 1987 Chevrolet V20
• Fits 1985-1986 Chevrolet C30
• Fits 1986 Chevrolet K10 Suburban
• Fits 1984-1986 Chevrolet K20
• Fits 1985-1986 Chevrolet K20 Suburban
• Fits 1984-1986 Chevrolet K30
• Fits 1984-1986 Pontiac Grand Prix
• Fits 1983-1986 Pontiac Parisienne
• Fits 1985 Chevrolet Impala

Quality Assurance

TC Remanufacturing supplies remanufactured drivetrain components for transmission service and rebuild work. B29DLLF is specified by converter code and physical dimensions to support accurate replacement selection for listed GM, Pontiac, Buick, Cadillac, GMC, and Isuzu applications.
