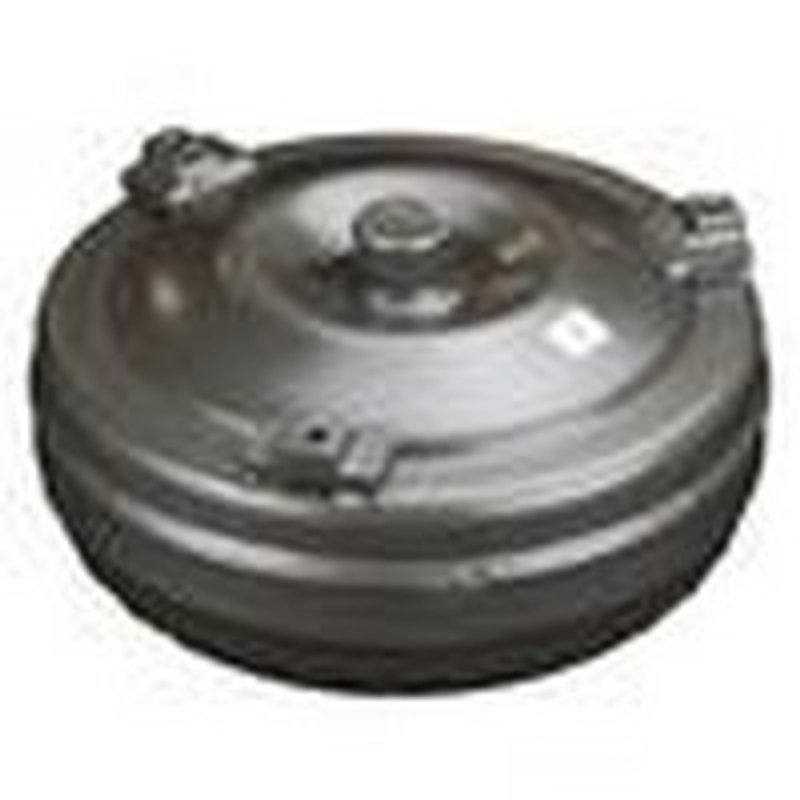

TC Remanufacturing B85TMBV Automatic Transmission Torque Converter

Brand TC Remanufacturing B85TMBV
Bolt Circle 9.250
Converter Codes 24229277, tmbv
Converter Diameter 12.500
Converter Type Lock up
Hub Type Slotted
Mounting Thread Size 10mm x 1.5
Mounting Type 3 pads
Pilot Diameter 1.703
Ring Gear No
Spline Count 30
Stall 1400-1600
Fits Chevrolet · 1 vehicle

Lock-up design. Provides controlled coupling for automatic transmission operation.

Application-specific fit. Built with a 30-spline count, slotted hub, and 3-pad mounting layout.

Code-matched replacement. Identified by converter codes 24229277 and TMBV for the listed application.

$356.54Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $356.54
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Automatic Transmission Torque Converter options

Overview

TC Remanufacturing B85TMBV is an automatic transmission torque converter for the 2005 Chevrolet Corvette. It is a lock-up design with a 12.500-inch diameter, slotted hub, and 3-pad mounting layout for a direct-fit transmission hard part replacement.

Key Features

  • Lock-up torque converter design for controlled coupling in automatic transmission operation.
  • 12.500-inch converter diameter with a 9.250 bolt circle.
  • Slotted hub and 3-pad mounting type for application-specific fitment.
  • 30-spline count with a 1.703 pilot diameter.
  • Stall range of 1400-1600 for the specified application.
  • Converter codes 24229277 and TMBV.

Detailed Description

This TC Remanufacturing torque converter, part number B85TMBV, is built for the 2005 Chevrolet Corvette and matches converter codes 24229277 and TMBV. As a lock-up automatic transmission torque converter, it is specified with a 12.500-inch diameter, 30-spline count, 10mm x 1.5 mounting thread size, and a slotted hub to match the required transmission interface. The 1400-1600 stall range supports the calibration expected for this application. B85TMBV is a transmission hard part selected for exact-fit replacement needs on the Corvette platform.

What It Is Used For

  • Replacing a worn or failing automatic transmission torque converter.
  • Addressing shudder, slip, or inconsistent lock-up operation.
  • Restoring proper torque transfer between the engine and transmission.
  • Correcting drivability issues tied to converter wear or mismatch.

Installation Notes and Tips

Verify converter codes 24229277 and TMBV before installation. Confirm spline count, pilot diameter, bolt circle, and mounting thread size against the transmission and flexplate interface. Proper transmission flush and inspection of related hard parts are recommended during replacement. Fitment is listed for the 2005 Chevrolet Corvette only.

Quality Assurance

TC Remanufacturing supplies transmission hard parts for application-specific replacement use. Part number B85TMBV is identified for the listed Corvette fitment and converter code match.

Related reading

This part fits 1 vehicle
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersNotes
2005ChevroletCorvette6.0LV8Converter Codes:24229277, TMBV
