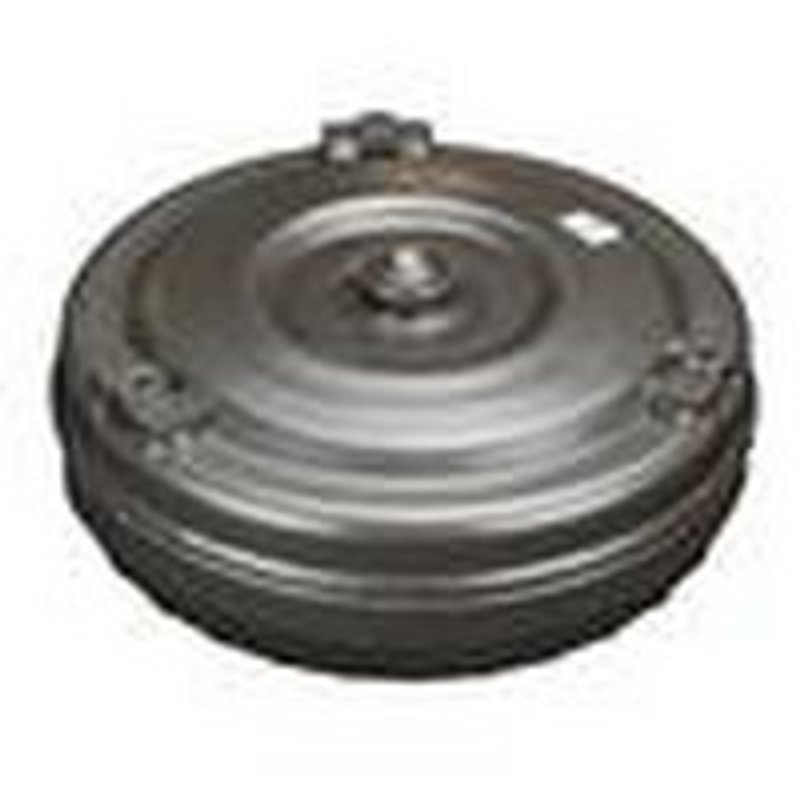

TC Remanufacturing BM45 Automatic Transmission Torque Converter
| Brand | TC Remanufacturing BM45 |
|---|---|
| Bolt Circle | 8.875 |
| Converter Codes | 206-205, f65, p62 |
| Converter Diameter | 11.125 |
| Converter Type | Captive clutch |
| Hub Type | Slotted / stepped |
| Mounting Thread Size | 10mm x 1.5 |
| Mounting Type | 4 nuts |
| Pilot Diameter | 1.375 |
| Pilot Length | 1.500 |
| Ring Gear | No |
| Spline Count | 27 |
| Stall | Medium |
| Fits | Jaguar · 6 vehicles |
Captive clutch design. Delivers controlled engagement for smooth torque transfer.
Slotted, stepped hub. Helps promote precise fit and reliable operation.
Medium stall. Balances launch response with everyday drivability.
Automatic Transmission Torque Converter for Jaguar S-Type
TC Remanufacturing BM45 is an automatic transmission torque converter built for 2003-2008 Jaguar S-Type applications. It features an 11.125-inch converter diameter, captive clutch design, and a medium stall setup for the specified transmission fitment.
Key Features
- Fits 2003-2008 Jaguar S-Type
- Part number: BM45
- 11.125-inch converter diameter
- Captive clutch converter type
- Medium stall specification
- 27-spline count
- Slotted / stepped hub type
- 8.875 bolt circle
- 4-nut mounting type with 10mm x 1.5 thread size
- 1.375-inch pilot diameter and 1.500-inch pilot length
- Converter codes: 206-205, F65, P62
Detailed Description
TC Remanufacturing BM45 is an automatic transmission torque converter for Jaguar S-Type models from 2003 through 2008. The unit is specified with a captive clutch converter type, 27-spline count, and a slotted / stepped hub to match the listed application requirements. Its medium stall characteristics and 11.125-inch diameter support the transmission setup used in these Jaguar S-Type vehicles. This part number, BM45, is identified with converter codes 206-205, F65, and P62 for application matching.
This part cross-references no additional part numbers in the provided data.
What It Is Used For
- Replacing a worn or slipping torque converter in a Jaguar S-Type automatic transmission
- Restoring proper engine-to-transmission coupling
- Addressing shudder, flare, or delayed engagement tied to converter wear
- Correcting drivability issues related to converter clutch operation
- Matching the specified Jaguar S-Type converter code and mounting dimensions
Installation Notes and Tips
Verify the converter codes, spline count, bolt circle, pilot dimensions, and mounting thread size against the original unit before installation. Confirm transmission compatibility for the 2003-2008 Jaguar S-Type application and inspect the transmission fluid, cooler lines, and related hard parts during replacement. Proper converter seating and alignment are critical before bolting the transmission to the engine.
Quality Assurance
TC Remanufacturing supplies transmission hard parts and torque converters for application-specific replacement needs. BM45 is built to the listed dimensional and code requirements for the Jaguar S-Type fitment shown above.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2008 | Jaguar | S-Type | 3.0L | V6 | N/A | — |
| 2007 | Jaguar | S-Type | 3.0L | V6 | N/A | — |
| 2006 | Jaguar | S-Type | 3.0L | V6 | N/A | — |
| 2005 | Jaguar | S-Type | 3.0L | V6 | N/A | — |
| 2004 | Jaguar | S-Type | 3.0L | V6 | N/A | — |
| 2003 | Jaguar | S-Type | 3.0L | V6 | N/A | — |
