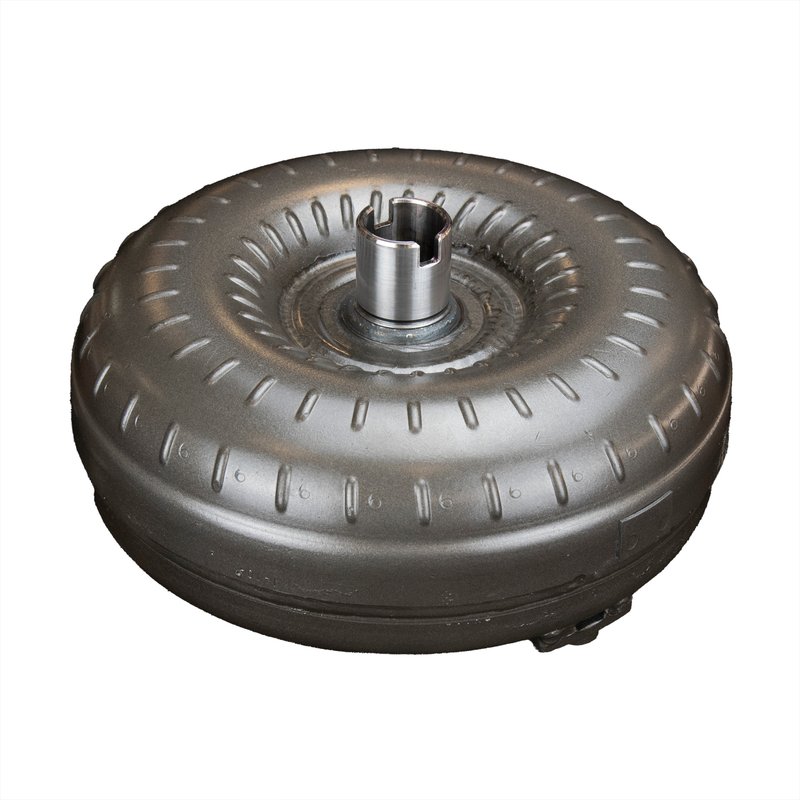

TC Remanufacturing BM53 Automatic Transmission Torque Converter
| Brand | TC Remanufacturing BM53 |
|---|---|
| Bolt Circle | 11.500 |
| Converter Diameter | 11.125 |
| Converter Type | Captive clutch |
| Grade Type | Standard replacement |
| Hub Type | Slotted / stepped |
| Lock Up Type | Yes |
| Mounting Thread Size | 10mm x 1.5 |
| Mounting Type | Mount plate 3 captive nuts |
| Pilot Diameter | 1.374 |
| Ring Gear | No |
| Spline Count | 27 |
| Stall | Medium |
| Fits | Jaguar and Land Rover · 7 vehicles |
Standard replacement. A direct-fit torque converter for straightforward service replacement.
Captive clutch design. Built with lock-up operation for efficient power transfer.
Slotted, stepped hub. Helps ensure precise engagement and dependable fit.
Automatic Transmission Torque Converter
TC Remanufacturing BM53 is a standard replacement automatic transmission torque converter built for specific Jaguar XK and Land Rover Range Rover applications. It features a captive clutch design, lock-up function, and a medium stall setup for OE-style drivability and transmission engagement.
Key Features
- Part number: BM53
- Automatic transmission torque converter for select 2006-2009 Land Rover Range Rover and 2007-2009 Jaguar XK applications
- Captive clutch design with lock-up type
- Standard replacement grade
- 11.125 in. converter diameter
- 11.500 in. bolt circle
- Slotted / stepped hub type
- Mount plate with 3 captive nuts
- 10mm x 1.5 mounting thread size
- 27-spline count
- 1.374 in. pilot diameter
- Medium stall characteristics
Detailed Description
TC Remanufacturing BM53 is an automatic transmission torque converter engineered for direct-fit service in 2007-2009 Jaguar XK and 2006-2009 Land Rover Range Rover models. The captive clutch and lock-up design support controlled coupling between the engine and transmission, while the medium stall specification helps maintain balanced launch behavior and everyday drivability. With an 11.125-inch diameter, 11.500-inch bolt circle, 27-spline count, and slotted/stepped hub, this BM53 torque converter is built to match the listed OE-style application requirements.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Is Used For
- Replacing a worn or failing torque converter in a Jaguar XK or Range Rover
- Restoring lock-up clutch operation and smoother transmission coupling
- Addressing shudder, slip, or delayed engagement concerns tied to converter wear
- Correcting drivability issues related to improper stall behavior
- Returning the transmission to proper OE-style fitment and function
Installation Notes and Tips
Verify transmission code, spline count, pilot diameter, bolt circle, and mounting style before installation. Confirm the converter seats fully on the transmission input components and that the lock-up system and mounting points match the vehicle’s original configuration. For best results, inspect the transmission fluid, cooler, and related hard parts before installing a replacement torque converter.
Quality Assurance
TC Remanufacturing supplies transmission hard parts for service replacement applications, and BM53 is built to the listed specifications for the confirmed vehicle fitments.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Jaguar | XK | 4.2L | V8 | N/A | — |
| 2009 | Land Rover | Range Rover | 4.4L | V8 | N/A | — |
| 2008 | Jaguar | XK | 4.2L | V8 | N/A | — |
| 2008 | Land Rover | Range Rover | 4.4L | V8 | N/A | — |
| 2007 | Jaguar | XK | 4.2L | V8 | N/A | — |
| 2007 | Land Rover | Range Rover | 4.4L | V8 | N/A | — |
| 2006 | Land Rover | Range Rover | 4.4L | V8 | N/A | — |
