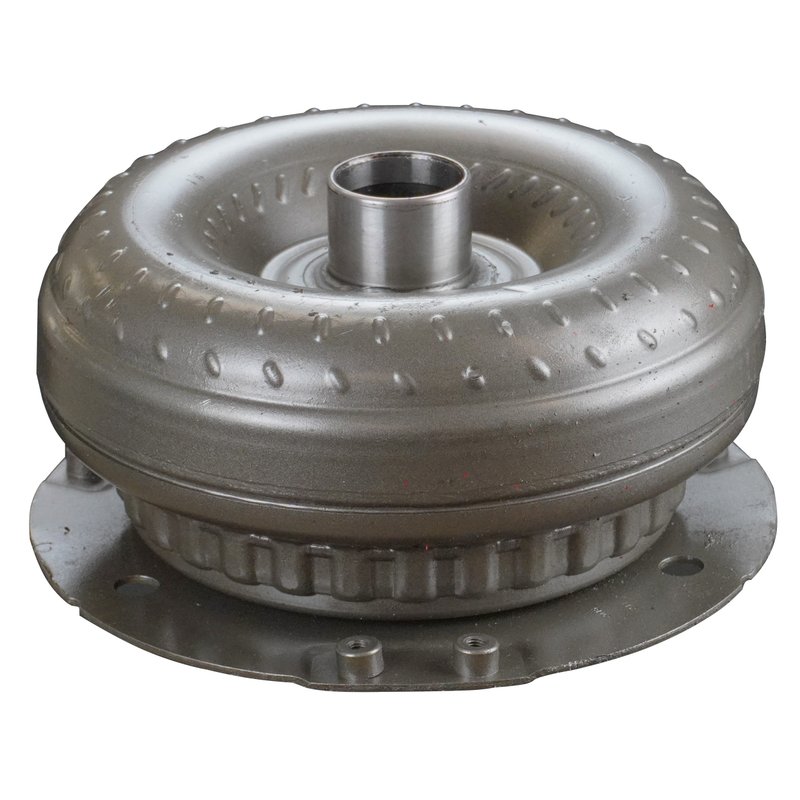

TC Remanufacturing CR3501 Automatic Transmission Torque Converter

Automatic Transmission Torque Converter for Ram and Dodge

TC Remanufacturing CR3501 is a standard replacement automatic transmission torque converter built for specific Ram, Dodge, and Jeep applications. It features a 10.575-inch converter diameter, 5.482-inch height, low stall, and lock-up design for direct-fit service on listed vehicles.

Key Features

• Part number: CR3501
• Standard replacement automatic transmission torque converter
• 10.250-inch bolt circle with 10.125-inch fitment note
• 10.575-inch converter diameter and 5.482-inch converter height
• Lock-up type: Yes
• Hub type: splined inside
• 32 spline count
• Mounting type: plate with 6 threaded holes on 3 pads
• Mounting thread size: 8mm x 1.25
• Pilot diameter: 1.335
• Low stall design
• Converter codes: C178, D178, K146; some units may show 000418 on the front cover and a blue dot on the pump

Detailed Description

TC Remanufacturing CR3501 is an automatic transmission torque converter for 2012-2024 Dodge Charger, 2014-2020 Dodge Durango, 2015-2020 Dodge Challenger, 2014-2018 Jeep Grand Cherokee, 2013-2024 Ram 1500, 2019 Ram 1500 Classic, 2019-2020 Ram 2500, and 2019-2020 Ram 3500 applications listed with a 10.125-inch bolt circle. The lock-up design, splined internal hub, and 32-spline configuration support proper transmission engagement on the specified vehicles. CR3501 is identified by converter codes C178, D178, and K146, with some units also marked 000418 on the front cover and a blue dot on the pump.

What This Torque Converter Helps Address

• Shudder or slip during lock-up operation
• Delayed or inconsistent torque transfer
• Incorrect converter code or bolt-circle mismatch during replacement
• Transmission service needs on Ram 1500, Dodge Charger, Dodge Challenger, Dodge Durango, Jeep Grand Cherokee, Ram 2500, and Ram 3500 applications
• Low-stall converter replacement for the listed drivetrain setup

Installation Notes and Tips

Verify the 10.125-inch bolt circle, converter codes, spline count, pilot diameter, and mounting style before installation. Confirm the transmission and vehicle application against the listed fitment for 2012-2024 Dodge Charger, 2014-2020 Dodge Durango, 2015-2020 Dodge Challenger, 2014-2018 Jeep Grand Cherokee, 2013-2024 Ram 1500, 2019 Ram 1500 Classic, 2019-2020 Ram 2500, and 2019-2020 Ram 3500. Proper alignment of the splined hub and pilot is important for correct seating and engagement.

Quality Assurance

TC Remanufacturing supplies this CR3501 torque converter as a standard replacement part for the listed applications. Match the converter code and physical dimensions to the original unit to help ensure correct fitment and operation.
