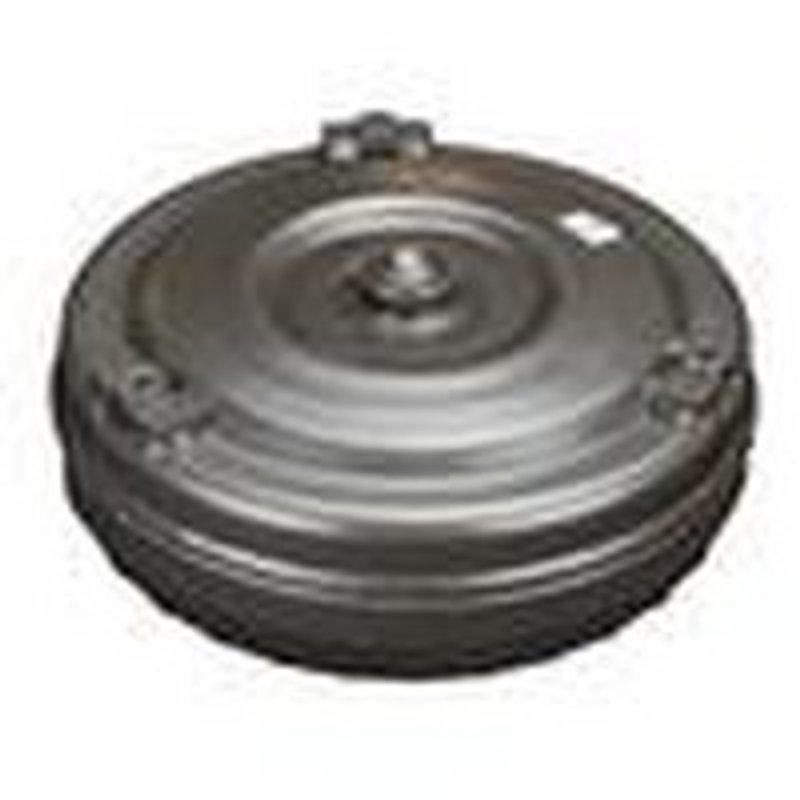

TC Remanufacturing CR3505 Automatic Transmission Torque Converter

Overview of TC Remanufacturing CR3505 Torque Converter

The TC Remanufacturing CR3505 automatic transmission torque converter is engineered for reliable performance in select Chrysler, Dodge, Jeep, Mitsubishi, and Ram vehicles. Designed with precise specifications, this torque converter supports smooth power transfer and efficient transmission operation.

• Bolt Circle Diameter: 11.000 inches
• Converter Diameter: 9.900 inches
• Internally Splined Hub Type with 32 splines
• Mounting Thread Size: 8mm x 1.25
• Mounting Type: Mount plate with 3 pads and 2 nuts
• Pilot Diameter: 1.335 inches, Pilot Length: 0.855 inches
• Low Stall Torque Converter
• Compatible with multiple Chrysler, Dodge, Jeep, Mitsubishi, and Ram models

Technical Details and Specifications

The CR3505 torque converter features an 11-inch bolt circle and a 9.9-inch diameter, ensuring compatibility with specific automatic transmissions used in vehicles such as the Chrysler 200 and 300, Dodge Charger and Durango, Jeep Grand Cherokee and Wrangler, Mitsubishi Eclipse and Endeavor, and Ram 1500. Its internally splined hub with 32 splines provides secure engagement with the transmission input shaft. The mounting thread size of 8mm x 1.25 and the mount plate design with 3 pads and 2 nuts facilitate proper installation and alignment. The pilot diameter and length (1.335 inches and 0.855 inches respectively) are designed to fit the transmission housing precisely. This torque converter is a low stall model, suitable for applications requiring smooth engagement and efficient power transfer.

Compatible Vehicles and Applications

This torque converter is compatible with a range of vehicles, including:

• Chrysler 200 and 300
• Dodge Charger and Durango
• Jeep Grand Cherokee and Wrangler
• Mitsubishi Eclipse and Endeavor
• Ram 1500

It is designed to meet the requirements of automatic transmissions in these models, ensuring proper fit and function.

Common Issues Addressed by the CR3505 Torque Converter

• Transmission slipping or shuddering during acceleration
• Overheating of the transmission fluid due to inefficient torque transfer
• Delayed or harsh engagement of the transmission
• Reduced fuel efficiency caused by torque converter malfunction
• Excessive noise or vibration from the transmission area

Installation Notes and Tips

When installing the TC Remanufacturing CR3505 torque converter, ensure the following:

• Verify compatibility with the vehicle make and model before installation
• Check that the mounting thread size and bolt circle match the transmission
• Inspect the pilot diameter and length for proper seating in the transmission housing
• Use the correct torque specifications for mounting nuts to avoid damage
• Flush the transmission fluid and replace the filter if necessary during installation

Quality Assurance and Warranty

TC Remanufacturing provides this torque converter with a focus on durability and performance. Each unit undergoes rigorous testing to meet OEM standards. Warranty coverage details should be confirmed with the distributor or manufacturer, ensuring peace of mind with your purchase.
