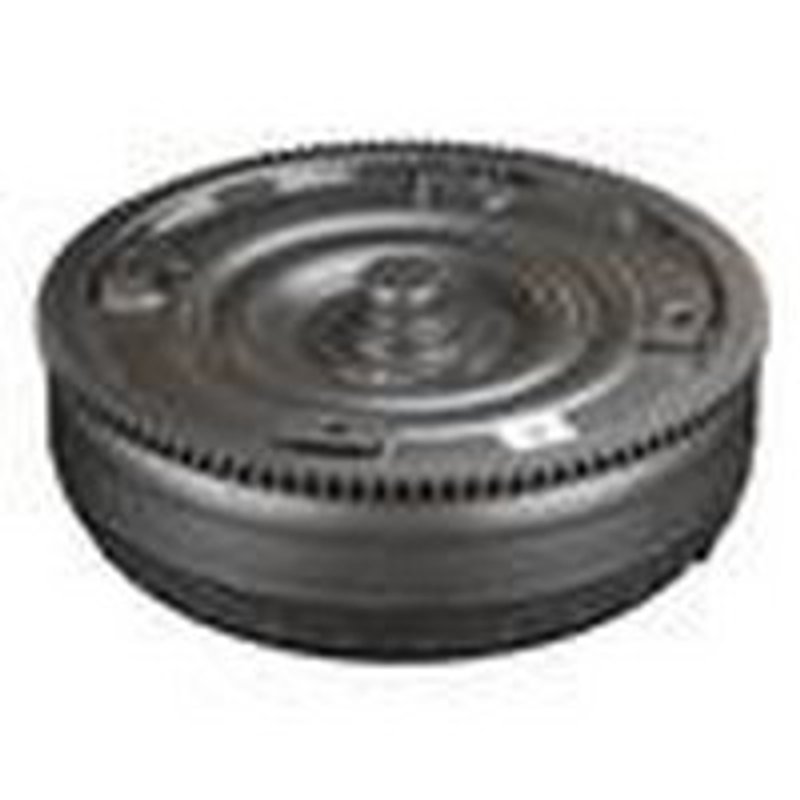

TC Remanufacturing CT17 Automatic Transmission Torque Converter
| Brand | TC Remanufacturing CT17 |
|---|---|
| Bolt Circle | 8.750 |
| Converter Diameter | 11.000 |
| Converter Type | Lock up |
| Hub Type | Flats |
| Mounting Thread Size | 10mmx1.25 |
| Mounting Type | 6 holes |
| Pilot Diameter | 1.060 |
| Ring Gear | Yes |
| Ring Gear Tooth Count | 110 |
| Spline Count | 20 |
| Stall | Medium |
| Fits | Hyundai · 3 vehicles |
Lock-up design. Delivers efficient torque transfer with a medium stall feel.
Ring gear included. Adds integrated starting support in a complete torque converter assembly.
6-hole mounting. Provides a secure, straightforward connection for installation.
TC Remanufacturing CT17 Torque Converter for Hyundai Scoupe
The TC Remanufacturing CT17 is an automatic transmission torque converter built for 1993-1995 Hyundai Scoupe applications. It features an 11.000-inch converter diameter, lock-up operation, and a medium stall setup for the specified fitment.
Key Features
- Part number CT17 from TC Remanufacturing
- Fits 1993-1995 Hyundai Scoupe, N/A
- Lock-up torque converter design
- 11.000-inch converter diameter
- 8.750 bolt circle with 6-hole mounting pattern
- 10mm x 1.25 mounting thread size
- 1.060 pilot diameter
- 20-spline count
- Hub type: flats
- Ring gear included with 110 teeth
- Medium stall specification
Detailed Description
CT17 is an automatic transmission torque converter for Hyundai Scoupe models from 1993 through 1995. The lock-up design supports direct coupling in the transmission, while the 11.000-inch diameter, 20-spline count, and 6-hole mounting layout define the physical and drivetrain interface for the listed application. The integrated ring gear with 110 teeth and 1.060 pilot diameter are important match points when replacing the original unit. If you are sourcing a TC Remanufacturing CT17 for a Hyundai Scoupe, verify the transmission connection points and mounting dimensions against the vehicle before installation.
What This Part Helps Address
- Transmission shudder or slip related to a worn torque converter
- Lock-up clutch engagement concerns in the automatic transmission
- Incorrect stall behavior from a mismatched converter
- Noise or engagement issues tied to damaged ring gear teeth
- Fitment problems caused by incorrect spline count or pilot size
Installation Notes and Tips
Confirm the 20-spline interface, 10mm x 1.25 mounting thread size, 8.750 bolt circle, and 1.060 pilot diameter before installation. Check the transmission fluid condition, inspect the flexplate and related mounting surfaces, and verify that the ring gear tooth count matches the original application. Proper converter seating is critical before bolting the unit to the engine and transmission.
Quality Assurance
TC Remanufacturing supplies transmission hard parts for service replacement applications. The CT17 is built to the listed specifications for 1993-1995 Hyundai Scoupe coverage, including the lock-up design and medium stall configuration.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 1995 | Hyundai | Scoupe | 1.5L | L4 | — |
| 1994 | Hyundai | Scoupe | 1.5L | L4 | — |
| 1993 | Hyundai | Scoupe | 1.5L | L4 | — |
