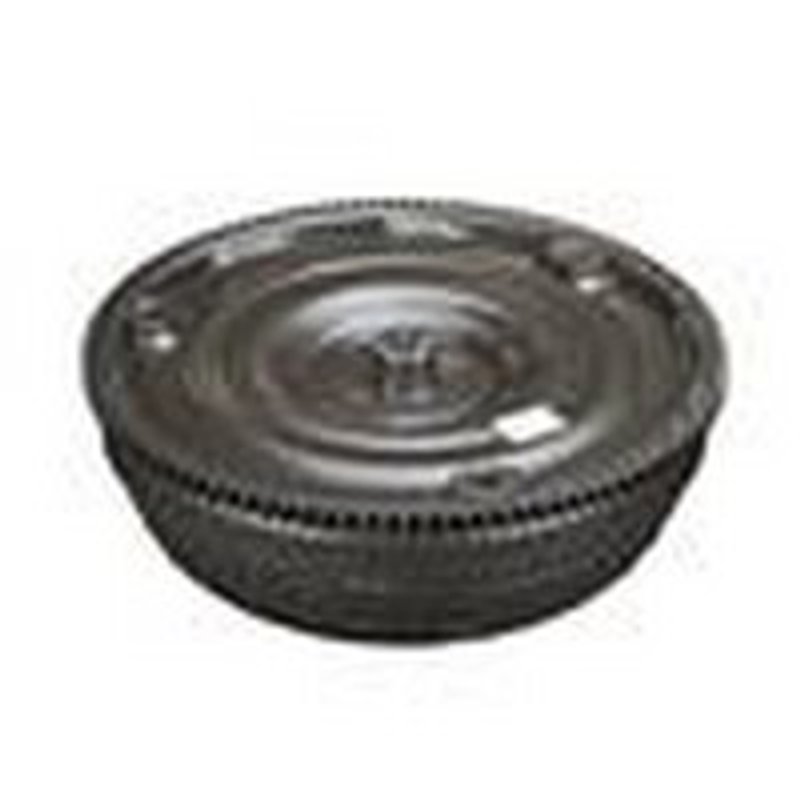

TC Remanufacturing CT24 Automatic Transmission Torque Converter
| Brand | TC Remanufacturing CT24 |
|---|---|
| Bolt Circle | 8.750 |
| Converter Diameter | 10.350 |
| Converter Type | Lock up |
| Hub Type | Flats/flanged |
| Mounting Pad Shape | Rrectangular |
| Mounting Thread Size | 10mmx1.25 |
| Mounting Type | 4 pads |
| Pilot Diameter | 1.335 |
| Pilot Length | 0.865 |
| Ring Gear | No |
| Spline Count | 20 |
| Stall | Low |
| Fits | Mitsubishi · 5 vehicles |
Lock-up design. Provides controlled converter engagement for automatic transmission operation.
Low stall setup. Supports smoother launch characteristics and drivability matching.
Dimension-specific fit. Includes diameter, spline, pilot, and mounting details for verification.
Automatic Transmission Torque Converter
This TC Remanufacturing torque converter is built for automatic transmission service and direct application matching. It is compatible with 1994-1998 Mitsubishi Galant, N/A, and uses a lock-up design with a low stall setup for controlled engagement.
Part number CT24 is identified by its 10.350-inch converter diameter, 8.750 bolt circle, and 20-spline hub interface. The flats/flanged hub type, rectangular mounting pad shape, and 10mm x 1.25 mounting thread size provide the key dimensional details needed for fitment verification on the Mitsubishi Galant application.
Key Features
- Lock-up torque converter design for automatic transmission operation.
- Low stall specification for controlled launch characteristics.
- 10.350-inch converter diameter with an 8.750 bolt circle.
- Flats/flanged hub type with a 20-spline connection.
- Rectangular mounting pad shape with 4-pad mounting type.
- Part number CT24 for application matching and catalog lookup.
Application Details
Fits 1994-1998 Mitsubishi Galant, N/A. This torque converter is specified with a 1.335 pilot diameter and 0.865 pilot length, along with no ring gear. Those dimensions are important when confirming automatic transmission hard-part replacement on the Mitsubishi Galant.
What It Is Used For
- Replacing a worn or damaged automatic transmission torque converter.
- Restoring lock-up converter operation in the transmission system.
- Addressing drivability concerns tied to incorrect stall characteristics.
- Correcting fitment issues caused by mismatched spline or pilot dimensions.
- Supporting transmission rebuilds that require a direct-match hard part.
Installation Notes and Tips
Verify the converter diameter, spline count, pilot dimensions, and mounting pad configuration before installation. Confirm the transmission application against part number CT24 and compare all listed dimensions to the removed unit to avoid fitment errors.
Quality Assurance
TC Remanufacturing identifies this torque converter by part number CT24 and publishes the critical fitment dimensions needed for application verification. Use the listed specifications to confirm compatibility before installation.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 1998 | Mitsubishi | Galant | 2.4L | L4 | — |
| 1997 | Mitsubishi | Galant | 2.4L | L4 | — |
| 1996 | Mitsubishi | Galant | 2.4L | L4 | — |
| 1995 | Mitsubishi | Galant | 2.4L | L4 | — |
| 1994 | Mitsubishi | Galant | 2.4L | L4 | — |
