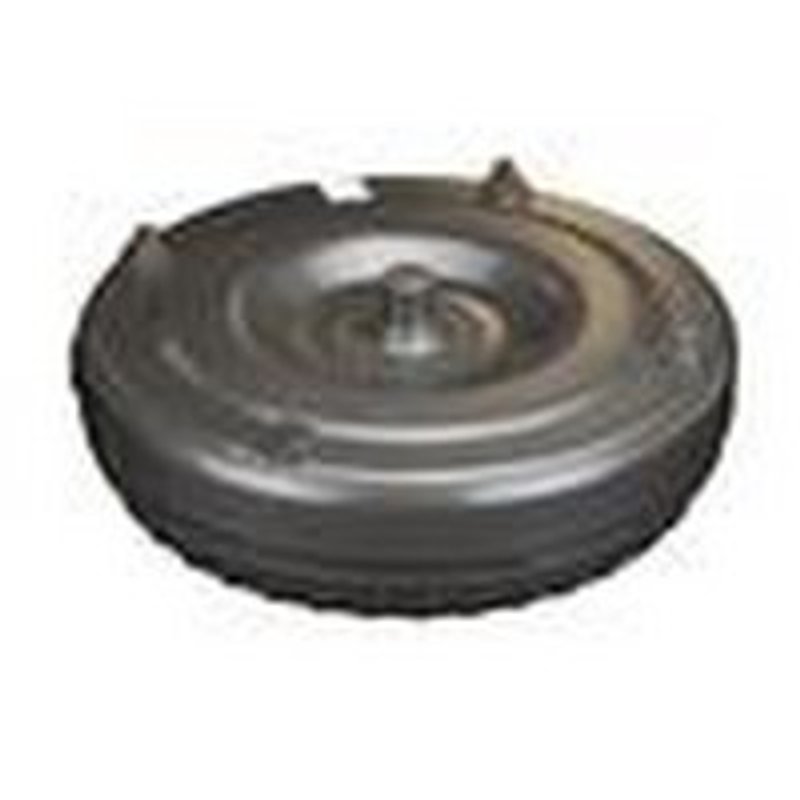

TC Remanufacturing CT27 Automatic Transmission Torque Converter

Overview of TC Remanufacturing CT27 Torque Converter

The TC Remanufacturing CT27 automatic transmission torque converter is engineered for reliable performance in select Ford and Mazda vehicles. Designed with precision, this lock-up converter supports smooth power transfer and efficient transmission operation.

• Compatible with Ford Focus, Transit Connect and Mazda 3, 6, Protege5 models
• Lock-up converter type with medium-high stall speed
• 10.200 inch converter diameter and 8.875 inch bolt circle
• Mounting with 4 studs and 10mm x 1.0 thread size
• Hub type features milled flats and 16 spline count
• Pilot diameter of 0.825 inch and pilot length of 1.020 inch
• Visible markers include light purple and white paint for identification

Technical Details and Specifications

The CT27 torque converter from TC Remanufacturing is designed to meet the specific requirements of automatic transmissions in Ford and Mazda vehicles. Its lock-up design helps improve fuel efficiency by reducing slippage during highway driving. The 10.200 inch diameter and 8.875 inch bolt circle ensure proper fitment and balance within the transmission assembly. The converter features a medium to high stall speed, suitable for a range of driving conditions.

Mounting is secured via four studs with a 10mm x 1.0 thread size, providing a stable connection to the flexplate. The milled flats hub type and 16 spline count allow for precise engagement with the transmission input shaft. Pilot dimensions of 0.825 inch diameter and 1.020 inch length ensure correct alignment during installation. The absence of a ring gear indicates this converter is designed for applications where the flexplate provides the ring gear function.

Compatible Vehicles and Applications

This torque converter is compatible with the following vehicles:

• Ford Focus
• Ford Transit Connect
• Mazda 3
• Mazda 6
• Mazda Protege5

It is suitable for automatic transmissions requiring a lock-up converter with the specified dimensions and mounting features. The CT27 part number should be referenced to confirm compatibility with your vehicle’s transmission model codes including 0316c, 0320c, 0329c, 2209c, and 2z09c.

Common Issues Addressed by the CT27 Torque Converter

• Transmission shudder or slipping during acceleration
• Delayed or harsh lock-up engagement
• Overheating caused by inefficient torque transfer
• Vibration or noise related to worn or damaged converter components
• Poor fuel economy due to converter slippage

Installation Notes and Tips

Ensure the torque converter is properly seated on the transmission input shaft before securing the mounting bolts. Verify that the pilot diameter and length match the transmission housing to avoid misalignment. Use the visible light purple and white paint markers to confirm correct part identification. Torque mounting bolts to manufacturer specifications to prevent loosening or damage. It is recommended to inspect the flexplate and transmission seals during installation for any signs of wear.

Quality Assurance and Warranty

TC Remanufacturing provides this CT27 torque converter with quality standards that meet OEM specifications. Each unit undergoes thorough inspection to ensure dimensional accuracy and functional performance. Warranty coverage details should be confirmed with the distributor or installer, typically covering defects in materials and workmanship under normal use.
