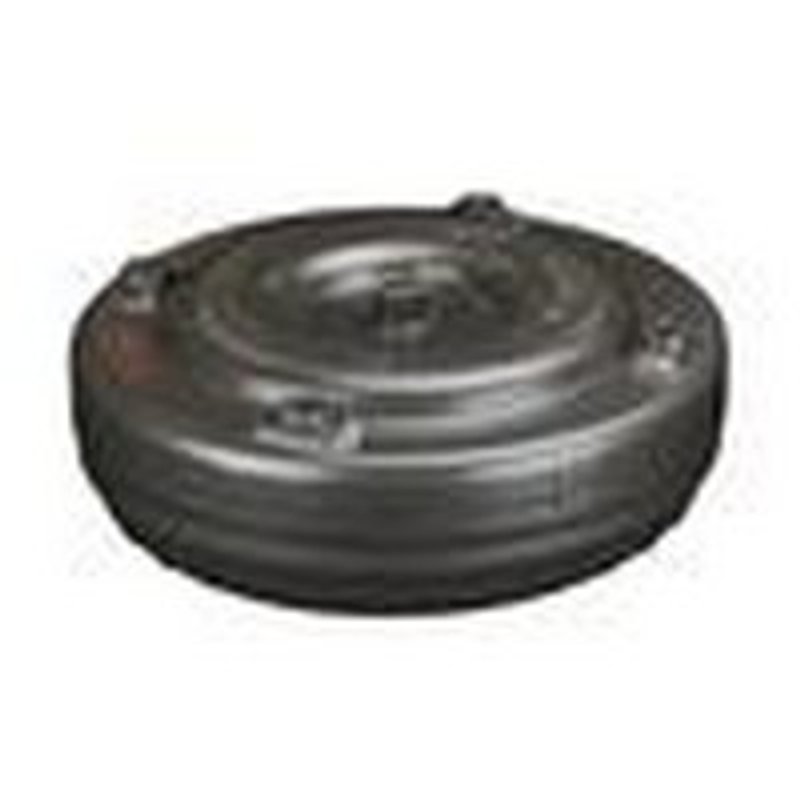

TC Remanufacturing DA39LS Automatic Transmission Torque Converter
| Brand | TC Remanufacturing DA39LS |
|---|---|
| Bolt Circle | 9.055 |
| Converter Codes | LF, LF229 |
| Converter Diameter | 10.800 |
| Converter Type | Lock Up |
| Hub Type | Slotted |
| Mounting Thread Size | 10mm x 1.0 |
| Mounting Type | 4 Pads |
| Pilot Diameter | 0.787 |
| Pilot Length | 0.735 |
| Ring Gear | No |
| Spline Count | 20 |
| Stall | Low |
| Fits | Nissan · 3 vehicles |
Lock-up design. Helps deliver efficient power transfer in an automatic transmission torque converter.
Slotted hub. Supports smoother engagement and dependable fitment in the converter assembly.
Low stall. Provides quicker response for everyday driving and drivability.
Automatic Transmission Torque Converter for Nissan
TC Remanufacturing DA39LS is a lock-up automatic transmission torque converter built for specific Nissan applications. It is listed for 2002-2003 Nissan Maxima and 2004 Nissan Quest, with fitment details that match the OE-style mounting and hub specifications shown below.
Key Features
- Part number: DA39LS
- Automatic transmission torque converter
- Lock-up converter type
- 10.800-inch converter diameter
- Low stall setup
- Slotted hub type
- 20-spline count
- 4-pad mounting design
- 10mm x 1.0 mounting thread size
- 9.055 bolt circle
- 0.787 pilot diameter and 0.735 pilot length
- Converter codes: LF, LF229
Detailed Description
TC Remanufacturing DA39LS is an automatic transmission torque converter for Nissan Maxima and Nissan Quest applications that require the listed lock-up configuration. The 10.800-inch diameter, low stall design, slotted hub, 20-spline count, and 4-pad mounting layout are the core specifications to verify during replacement. This part number, DA39LS, is identified with converter codes LF and LF229 for matching the correct transmission setup.
Compatible With 2002-2003 Nissan Maxima and 2004 Nissan Quest, this torque converter is intended for vehicles that match the stated bolt circle, pilot dimensions, and mounting thread size. Use the OE-style measurements to confirm transmission and flexplate compatibility before installation.
What It Is Used For
- Replacing a worn or failing torque converter in a Nissan Maxima or Nissan Quest
- Restoring lock-up operation in the automatic transmission
- Addressing shudder, slip, or poor coupling during acceleration
- Correcting engagement issues tied to converter wear or internal damage
- Matching the specified converter codes and mounting dimensions during transmission service
Installation Notes and Tips
Verify the transmission code, converter codes LF and LF229, spline count, pilot dimensions, and mounting pattern before installation. Confirm the 10mm x 1.0 thread size, 9.055 bolt circle, and 4-pad mounting layout against the original unit to ensure proper alignment. Always inspect the transmission fluid condition and related hard parts during replacement.
Fits 2002-2003 Nissan Maxima and 2004 Nissan Quest, with the listed lock-up torque converter configuration. Part number DA39LS should be matched to the vehicle and transmission specifications exactly before service.
Quality Assurance
TC Remanufacturing supplies transmission hard parts with application-specific specifications for accurate fitment matching. This DA39LS torque converter is cataloged with defined dimensional and code references to support correct identification for the listed Nissan applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Nissan | Quest | 3.5L | V6 | N/A | — |
| 2003 | Nissan | Maxima | 3.5L | V6 | N/A | — |
| 2002 | Nissan | Maxima | 3.5L | V6 | N/A | — |
| No rows match your filter. | ||||||
