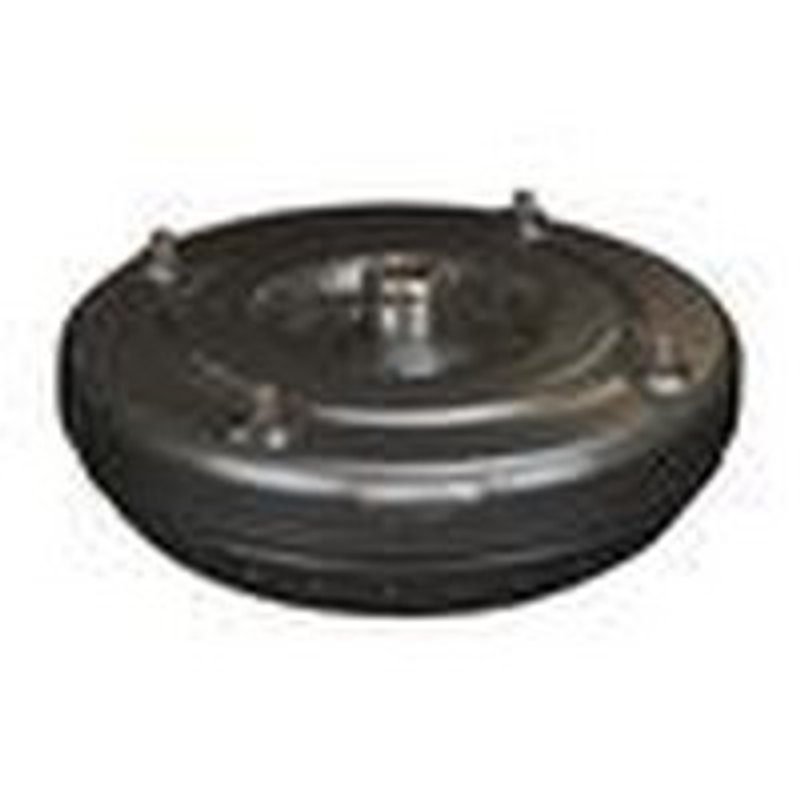

TC Remanufacturing DA56 Automatic Transmission Torque Converter
| Brand | TC Remanufacturing DA56 |
|---|---|
| Bolt Circle | 9.000 |
| Converter Diameter | 11.000 |
| Converter Type | Lock Up |
| Hub Type | Bushing |
| Mounting Thread Size | 10mm x 1.0 |
| Mounting Type | 4 Studs |
| Pilot Diameter | 1.375 |
| Ring Gear | No |
| Spline Count | 21 |
| Stall | High |
| Visible Markers | Yellow Paint w/ Black Dot |
| Fits | Mazda · 2 vehicles |
Lock-up design. Delivers efficient power transfer for smoother operation.
High-stall setup. Helps the transmission reach a stronger launch point.
Bushing hub. Provides a durable, serviceable connection point.
TC Remanufacturing DA56 Torque Converter
The TC Remanufacturing DA56 is an automatic transmission torque converter for select 2000-2001 Mazda MPV applications. It features a 11.000-inch converter diameter, lock-up design, and high stall calibration for proper drivability in the specified vehicle range.
Key Features
- Part number: DA56
- Automatic transmission torque converter
- Lock-up converter type
- 11.000-inch converter diameter
- High stall specification
- 21-spline count
- 9.000 bolt circle
- 4-stud mounting with 10mm x 1.0 thread size
- Bushing hub type
- 1.375 pilot diameter
- No ring gear
- Visible markers: yellow paint with black dot
Application Details
Fits 2000-2001 Mazda MPV, N/A. This DA56 torque converter is listed for the Mazda MPV in those model years and should be matched to the transmission and converter specifications shown here before installation. The DA56 part number is useful when verifying the correct replacement for a Mazda MPV automatic transmission service job.
What This Part Helps Address
- Transmission shudder or slip related to a worn converter clutch
- Harsh or inconsistent engagement from a damaged torque converter
- Vibration or drivability concerns tied to converter wear
- Incorrect stall behavior after transmission repair
- Fitment issues when replacing a converter with the wrong spline or mounting pattern
Installation Notes
Confirm the 21-spline count, 4-stud mounting pattern, 10mm x 1.0 thread size, 9.000 bolt circle, and 1.375 pilot diameter against the original unit before installation. Verify transmission code, converter depth, and lock-up configuration during service. Inspect the transmission cooler and fluid condition so the replacement converter is installed into a clean system. The visible yellow paint with black dot can be used as an identification marker during parts verification.
Quality Assurance
TC Remanufacturing supplies remanufactured transmission hard parts for service replacement applications. This part number, DA56, is cataloged for the specified Mazda MPV fitment and should be selected based on the listed converter dimensions and mounting details.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2001 | Mazda | MPV | 2.5L | V6 | N/A | — |
| 2000 | Mazda | MPV | 2.5L | V6 | N/A | — |
