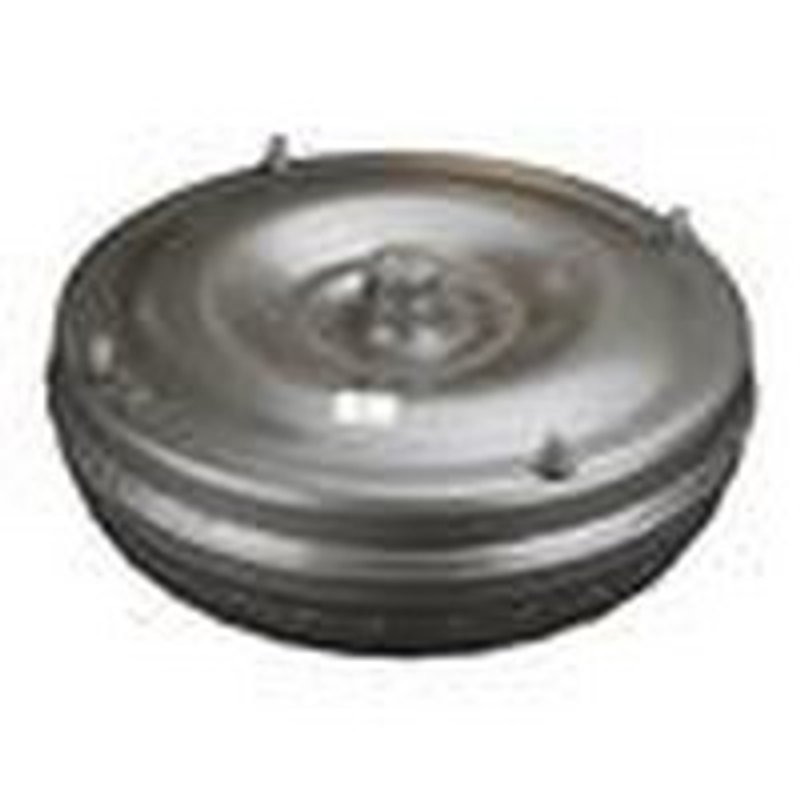

TC Remanufacturing F21 Automatic Transmission Torque Converter

Overview of TC Remanufacturing F21 Torque Converter

The TC Remanufacturing F21 automatic transmission torque converter is engineered for reliable performance in select Ford and Mercury vehicles. Designed with precise specifications, this non lock-up converter supports smooth power transfer and efficient operation in models like the Ford Bronco and Mercury Cougar.

• Bolt Circle Diameter: 11.375 inches
• Converter Diameter: 12.000 inches
• Non lock-up converter type for consistent torque delivery
• Hub Type: Milled flats for secure fitment
• Mounting Type: Studs for reliable installation
• Pilot Diameter: 1.375 inches
• Spline Count: 24 splines
• Stall Speed Range: 1300-1500 RPM
• Compatible with Ford and Mercury models including Bronco, Cougar, F-250, LTD, Montego, and Mustang

Technical Details and Specifications

The F21 torque converter from TC Remanufacturing features a 12-inch diameter and an 11.375-inch bolt circle, ensuring compatibility with specific automatic transmissions in Ford and Mercury vehicles. Its non lock-up design provides consistent torque multiplication without the complexity of lock-up mechanisms, suitable for applications requiring smooth engagement. The milled flats hub type and stud mounting system offer a secure and precise fit, while the 24-spline count and 1.375-inch pilot diameter align with factory transmission input shafts. The stall speed range of 1300 to 1500 RPM is optimized for balanced performance and drivability in vehicles such as the Ford Mustang and Mercury Montego.

Applications and Problem Solving

This torque converter is intended for use in automatic transmissions of select Ford and Mercury models. It addresses several common transmission issues, including:

• Eliminating slipping or shuddering during acceleration
• Resolving overheating caused by inefficient torque transfer
• Reducing delayed engagement or harsh shifting
• Replacing worn or damaged torque converters to restore drivability
• Improving stall speed compatibility for engine and transmission matching

Installation Notes and Tips

When installing the TC Remanufacturing F21 torque converter, ensure the following for optimal results:

• Verify compatibility with your vehicle’s make, model, and transmission type
• Inspect the transmission input shaft and seal surfaces for wear or damage
• Use proper torque specifications on mounting studs to avoid loosening
• Fill the torque converter with the recommended transmission fluid before installation
• Check alignment of the milled flats hub to prevent installation issues

Quality Assurance and Warranty

TC Remanufacturing maintains strict quality control standards for the F21 torque converter, ensuring durability and performance. Each unit undergoes thorough inspection and testing to meet OEM specifications. Warranty coverage details should be confirmed with the distributor or manufacturer, as terms may vary.
