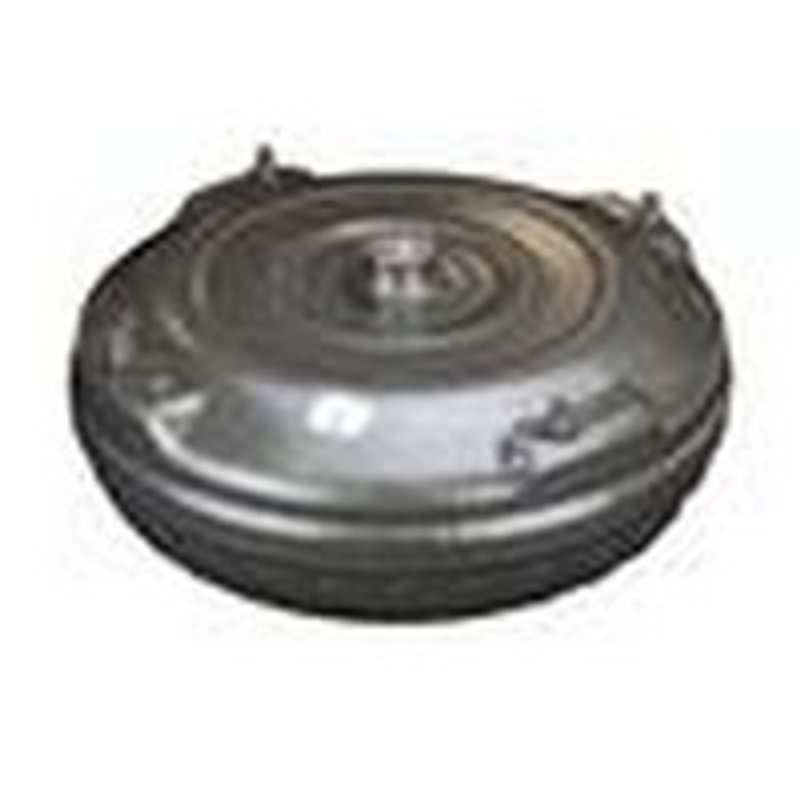

TC Remanufacturing F52LS Automatic Transmission Torque Converter

Overview of TC Remanufacturing F52LS Torque Converter

The TC Remanufacturing F52LS automatic transmission torque converter is engineered for reliable performance in Ford E-Series Econoline vans and F-Series trucks. Designed with precise specifications, this damper drive converter supports smooth power transfer and efficient torque multiplication.

• Bolt Circle Diameter: 11.375 inches
• Converter Diameter: 12.750 inches
• Converter Type: Damper drive
• Hub Type: Milled flats
• Mounting Thread Size: 3/8 x 1.0 inches
• Mounting Type: 4 studs
• Pilot Diameter: 1.375 inches
• Spline Count: 35
• Stall Speed Range: 1600-1800 RPM
• Compatible Converter Codes: 14a, 15a, 7a

Technical Details and Specifications

The F52LS torque converter from TC Remanufacturing is designed to meet the exacting requirements of Ford E-100, E-150, E-250, and E-350 Econoline vans, as well as F-100, F-150, F-250, and F-350 trucks. Its 12.750-inch diameter and 11.375-inch bolt circle ensure proper fitment and secure mounting using four studs with 3/8 x 1.0 inch threads. The damper drive converter type helps reduce vibrations and improve driveline smoothness. The milled flats hub type and 35 spline count provide a precise connection to the transmission input shaft. The stall speed range of 1600-1800 RPM is suitable for a balance of power and efficiency in these vehicle models.

Compatible Vehicles and Applications

This torque converter is compatible with the following Ford models:

• Ford E-100 Econoline and E-100 Econoline Club Wagon
• Ford E-150 Econoline and E-150 Econoline Club Wagon
• Ford E-250 Econoline and E-250 Econoline Club Wagon
• Ford E-350 Econoline and E-350 Econoline Club Wagon
• Ford F-100, F-150, F-250, and F-350 trucks

Common Issues Addressed by the F52LS Torque Converter

• Transmission slipping or delayed engagement
• Excessive vibration or shudder during acceleration
• Overheating of the transmission fluid
• Poor fuel efficiency due to inefficient torque transfer
• Unusual noises from the torque converter area

Installation Notes and Tips

When installing the TC Remanufacturing F52LS torque converter, ensure the following:

• Verify compatibility with your specific Ford Econoline or F-Series model and transmission type.
• Check that the mounting threads and bolt circle match the transmission housing.
• Inspect the transmission input shaft splines for wear before installation.
• Use proper torque specifications on the 4 mounting studs to avoid leaks or loosening.
• Fill the torque converter with the recommended transmission fluid prior to installation to prevent dry start damage.

Quality Assurance and Warranty

TC Remanufacturing provides this F52LS torque converter with a focus on durability and performance consistency. Each unit undergoes rigorous testing to meet OEM standards. Warranty coverage details should be confirmed with the distributor or installer, ensuring peace of mind for professional and DIY repairs.
