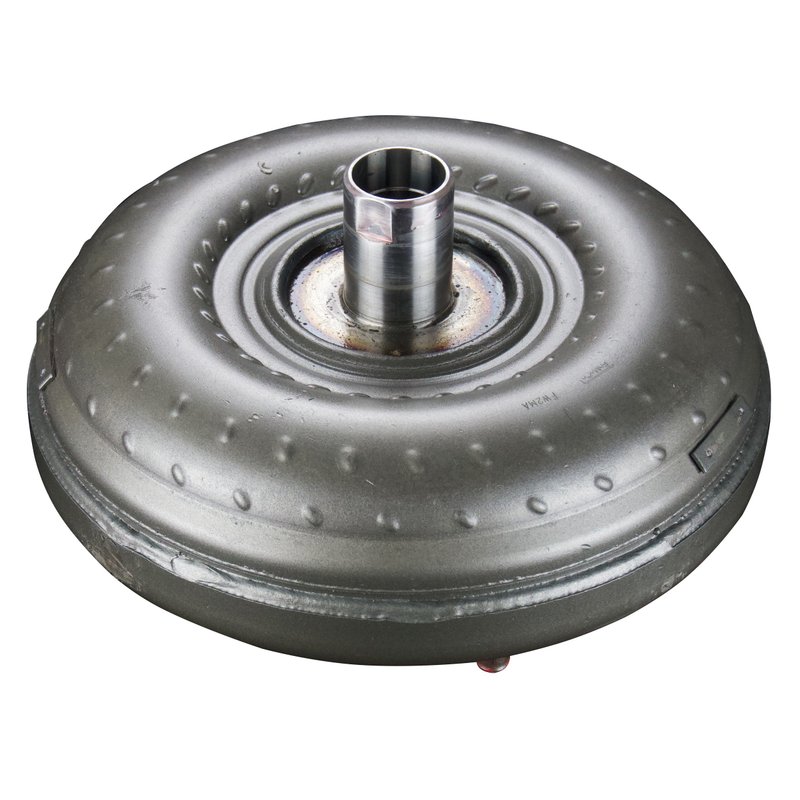

TC Remanufacturing FM14406 Automatic Transmission Torque Converter
OE Quality 60-Day Returns
TC Remanufacturing

TC Remanufacturing FM14406 Automatic Transmission Torque Converter

Brand TC Remanufacturing FM14406
Bolt Circle 8.875
Converter Codes 08816, f, fd, 7902, fw2ma (some), dg9z-f
Converter Diameter 10.9
Fitment Note 10.90" converter diameter, f converter code
Grade Type Standard replacement
Hub Type Flats/step/flange
Lock Up Type Yes
Mounting Thread Size 10mm x 1.0
Mounting Type 4 studs oval pads
Pilot Diameter 0.824
Pilot Length 0.596
Spline Count 24
Stall Low
Visible Markers White paint on pump, pink dot on cover
Fits Ford and Lincoln · 22 vehicles

Standard replacement. A direct-fit torque converter for straightforward service.

Lock-up type. Helps maintain efficient power transfer through the drivetrain.

24-spline design. Built with a 4-stud oval pad mounting pattern.

$481.55Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $481.55
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Automatic Transmission Torque Converter options

Automatic Transmission Torque Converter for Ford and Lincoln

The TC Remanufacturing FM14406 is a standard replacement automatic transmission torque converter built for select Ford and Lincoln applications. It features a 10.9-inch converter diameter, low stall characteristics, and lock-up operation for the specified F converter code applications.

  • Part number: FM14406
  • Standard replacement automatic transmission torque converter
  • 10.9" converter diameter with 8.875 bolt circle
  • Lock-up type: Yes
  • Low stall design
  • Hub type: Flats/Step/Flange
  • Mounting type: 4 studs oval pads
  • Mounting thread size: 10mm x 1.0
  • Pilot diameter: 0.824
  • Pilot length: 0.596
  • Spline count: 24
  • Visible markers: white paint on pump, pink dot on cover

Fitment Details

Compatible with 2013-2020 Ford Fusion, 2013-2019 Ford Escape, 2015-2019 Lincoln MKC, 2013 Lincoln MKT, and 2013 Lincoln MKZ when the transmission uses the 10.90" converter diameter and F converter code. This FM14406 torque converter is identified by converter codes 08816, F, FD, 7902, FW2MA (some), and DG9Z-F.

For Ford Fusion and Ford Escape owners, the FM14406 helps match the correct lock-up torque converter specification for the listed applications. It is also a direct-fit service part for select Lincoln MKC, MKT, and MKZ vehicles with the same converter code and diameter requirements.

What This Part Is Used For

  • Restoring proper torque converter operation after transmission service
  • Replacing a worn or damaged lock-up converter
  • Addressing shudder, slip, or engagement concerns tied to converter wear
  • Correcting fitment issues caused by mismatched converter diameter or code
  • Supporting smooth power transfer in the automatic transmission

Installation Notes and Tips

Verify the transmission tag, converter code, and physical dimensions before installation. Confirm the 10.90" converter diameter, F converter code, 24-spline count, and mounting style match the original unit. Check the visible markers on the pump and cover during parts verification, and inspect the transmission, flexplate, and related components for wear before assembly. This part cross-references Ford OE-style applications using codes such as DG9Z-F and 7902 for the same application.

Quality Assurance

TC Remanufacturing supplies remanufactured drivetrain components for service replacement use. This torque converter is built to the listed specifications for the stated Ford and Lincoln applications.

Related reading

This part fits 22 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2020FordFusion1.5LL4N/AFitment Note:10.90" Converter Diameter, F Converter Code
2019FordEscape2.0LL4N/AFitment Note:10.90" Converter Diameter, F Converter Code
2019FordFusion1.5LL4N/AFitment Note:10.90" Converter Diameter, F Converter Code
2019LincolnMKC2.0LL4N/AFitment Note:10.90" Converter Diameter, F Converter Code
2018FordEscape2.0LL4N/AFitment Note:10.90" Converter Diameter, F Converter Code
2018FordFusion1.5LL4N/AFitment Note:10.90" Converter Diameter, F Converter Code
2018LincolnMKC2.0LL4N/AFitment Note:10.90" Converter Diameter, F Converter Code
2017FordEscape2.0LL4N/AFitment Note:10.90" Converter Diameter, F Converter Code
2017FordFusion1.5LL4N/AFitment Note:10.90" Converter Diameter, F Converter Code
2017LincolnMKC2.0LL4N/AFitment Note:10.90" Converter Diameter, F Converter Code
2016FordEscape2.0LL4N/AFitment Note:10.90" Converter Diameter, F Converter Code
2016FordFusion1.5LL4N/AFitment Note:10.90" Converter Diameter, F Converter Code
2016LincolnMKC2.0LL4N/AFitment Note:10.90" Converter Diameter, F Converter Code
2015FordEscape2.0LL4N/AFitment Note:10.90" Converter Diameter, F Converter Code
2015FordFusion1.5LL4N/AFitment Note:10.90" Converter Diameter, F Converter Code
2015LincolnMKC2.0LL4N/AFitment Note:10.90" Converter Diameter, F Converter Code
2014FordEscape2.0LL4N/AFitment Note:10.90" Converter Diameter, F Converter Code
2014FordFusion1.5LL4N/AFitment Note:10.90" Converter Diameter, F Converter Code
2013FordEscape2.0LL4N/AFitment Note:10.90" Converter Diameter, F Converter Code
2013FordFusion1.6LL4N/AFitment Note:10.90" Converter Diameter, F Converter Code
2013LincolnMKT2.0LL4N/AFitment Note:10.90" Converter Diameter, F Converter Code
2013LincolnMKZ2.0LL4N/AFitment Note:10.90" Converter Diameter, F Converter Code
