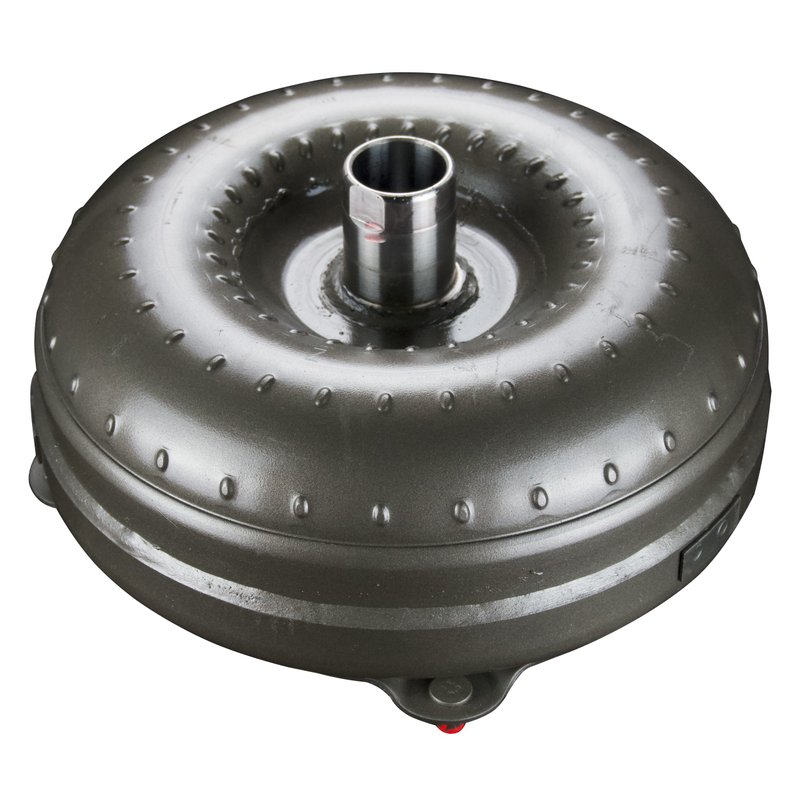

TC Remanufacturing FM9532 Automatic Transmission Torque Converter

Ford F-150 Torque Converter Replacement

TC Remanufacturing FM9532 is a standard replacement automatic transmission torque converter built for specific Ford truck applications. It features a 11.95-inch converter diameter, medium stall, lock-up operation, and a 32-spline hub configuration for the listed fitments.

Key Features

• Part number: FM9532
• Standard replacement automatic transmission torque converter
• 11.95-inch converter diameter with 11.5-inch bolt circle
• Lock-up type: Yes
• Medium stall for balanced drivability
• Hub type: Flats/Stepped
• Mounting type: Drive plate 4 studs
• Mounting thread size: 10mm x 1.0
• Pilot diameter: 1.375 inches
• Pilot length: 0.848 inches
• 32-spline count
• Converter codes: 2915, BR3P BF

Detailed Description

FM9532 is a TC Remanufacturing automatic transmission torque converter for 2011-2017 Ford F-150 and 2014 Lincoln Navigator applications that use converter codes 2915 or BR3P BF. The lock-up design supports direct coupling during cruising, while the medium stall specification helps maintain smooth launch characteristics for everyday driving and towing-oriented use. This part number, FM9532, is built around the listed diameter, pilot dimensions, spline count, and drive plate mounting pattern to match the specified transmission setup.

Compatible With 2011-2017 Ford F-150, N/A. Compatible With 2014 Lincoln Navigator, N/A. This part cross-references common torque converter application references for the same fitment, including 2915 and BR3P BF.

What It Is Used For

• Replacing a worn or failing torque converter in the listed Ford and Lincoln applications
• Restoring lock-up operation for smoother highway cruising
• Addressing shudder, slip, or delayed engagement related to converter wear
• Correcting drivability issues tied to improper converter code match
• Supporting transmission rebuilds that require the specified FM9532 fitment

Installation Notes and Tips

Verify the converter codes 2915 and BR3P BF before installation. Confirm the 11.5-inch bolt circle, 10mm x 1.0 mounting thread size, 32-spline count, and pilot dimensions against the original unit and transmission specifications. Always inspect the transmission, cooler, and fluid condition during replacement to help prevent repeat failure.

Quality Assurance

TC Remanufacturing supplies this torque converter as a standard replacement part for the listed applications. Match all fitment details and converter codes to ensure proper application selection.
