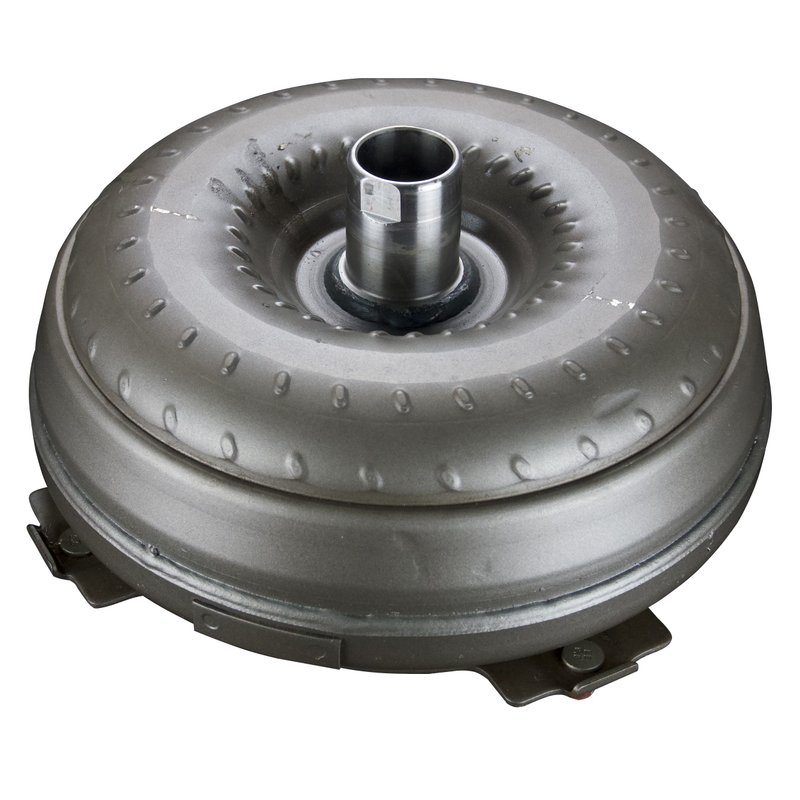

TC Remanufacturing FM9542 Automatic Transmission Torque Converter
OE Quality 60-Day Returns
TC Remanufacturing

TC Remanufacturing FM9542 Automatic Transmission Torque Converter

Brand TC Remanufacturing FM9542
Bolt Circle 11.5
Converter Codes 28015, fl3p ae p or m on top, af, bc, bd, be, dc, dd, de, eb, gp
Converter Diameter 11.75
Fitment Note Low stall, 11.5" bolt circle, drive plate
Grade Type Standard replacement
Hub Type Flats/stepped
Lock Up Type Yes
Mounting Thread Size 10mm x 1.0
Mounting Type Drive plate 4 studs
Pilot Diameter 1.375
Pilot Length 1.05
Spline Count 32
Stall Low
Fits Ford · 10 vehicles

Standard replacement. A direct-fit torque converter for straightforward service.

Low stall. Helps deliver smooth, controlled engagement.

Lock-up design. Improves efficiency during steady cruising.

$481.55Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $481.55
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Automatic Transmission Torque Converter options

Ford F-150 Torque Converter Replacement

Restore proper transmission performance with this TC Remanufacturing automatic transmission torque converter, part number FM9542. It is a standard replacement unit built for low-stall operation and direct compatibility with select 2011-2020 Ford F-150 applications.

  • Automatic transmission torque converter
  • Standard replacement grade
  • Low stall design
  • 11.75 in. converter diameter
  • 11.5 in. bolt circle
  • Lock-up type: yes
  • Drive plate mounting with 4 studs
  • Hub type: flats/stepped
  • 10mm x 1.0 mounting thread size
  • 32 spline count
  • Pilot diameter: 1.375 in.
  • Pilot length: 1.05 in.

Fitment Details

Compatible with 2011-2020 Ford F-150, N/A. Fitment is based on the listed low-stall, 11.5" bolt circle, drive plate configuration and converter codes 28015, FL3P AE P or M on top, AF, BC, BD, BE, DC, DD, DE, EB, GP.

This part number, FM9542, is a direct-fit torque converter option for Ford F-150 automatic transmission service where the original unit matches the specified mounting and code requirements. It is also referenced by part number FM9542 for application matching during transmission repair and rebuild work.

What It Helps Address

  • Shudder or slip related to a worn torque converter
  • Delayed or inconsistent engagement from converter wear
  • Lock-up clutch performance concerns
  • Transmission rebuilds requiring a replacement converter with the correct bolt circle and spline count
  • Fitment issues when the original converter uses the listed Ford code set

Installation Notes

Verify the converter codes, 11.5" bolt circle, 11.75" diameter, 32 spline count, and drive plate mounting style before installation. Confirm the transmission and engine combination against the vehicle’s original converter specifications, and inspect the flexplate/drive plate, seals, and related transmission components during service. Proper fluid fill and post-installation checks are important after torque converter replacement.

Quality Assurance

TC Remanufacturing supplies this torque converter as a standard replacement part for transmission service. FM9542 is built to match the listed application details for Ford F-150 fitment and converter-code verification.

Related reading

This part fits 10 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2020FordF-1503.5LV6N/AFitment Note:Low Stall, 11.5" Bolt Circle, Drive Plate
2019FordF-1503.5LV6N/AFitment Note:Low Stall, 11.5" Bolt Circle, Drive Plate
2018FordF-1503.5LV6N/AFitment Note:Low Stall, 11.5" Bolt Circle, Drive Plate
2017FordF-1502.7LV6N/AFitment Note:Low Stall, 11.5" Bolt Circle, Drive Plate
2016FordF-1503.5LV6N/AFitment Note:Low Stall, 11.5" Bolt Circle, Drive Plate
2015FordF-1503.5LV6N/AFitment Note:Low Stall, 11.5" Bolt Circle, Drive Plate
2014FordF-1503.5LV6N/AFitment Note:Low Stall, 11.5" Bolt Circle, Drive Plate
2013FordF-1503.5LV6N/AFitment Note:Low Stall, 11.5" Bolt Circle, Drive Plate
2012FordF-1503.5LV6N/AFitment Note:Low Stall, 11.5" Bolt Circle, Drive Plate
2011FordF-1503.5LV6N/AFitment Note:Low Stall, 11.5" Bolt Circle, Drive Plate
