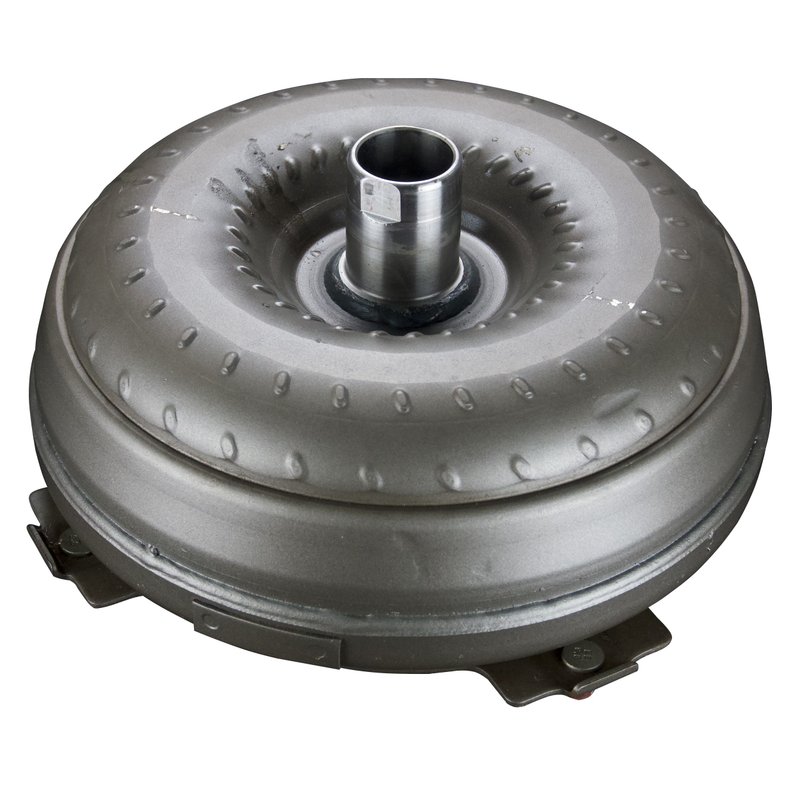

TC Remanufacturing FM9544 Automatic Transmission Torque Converter
OE Quality 60-Day Returns
TC Remanufacturing

TC Remanufacturing FM9544 Automatic Transmission Torque Converter

Brand TC Remanufacturing FM9544
Bolt Circle 9.5
Converter Codes 02815,fr3p-ae,n
Converter Diameter 11.790
Grade Type Standard replacement
Hub Type Flats/stepped
Lock Up Type Yes
Mounting Thread Size 10mm x 1.0
Mounting Type Drive plate 6 studs
Pilot Diameter 0.824
Pilot Length 1.137
Spline Count 32
Stall Low
Fits Ford · 3 vehicles

Standard replacement. Built as a direct-fit torque converter for straightforward service.

Lock-up design. Helps deliver efficient power transfer during cruising.

Flats/stepped hub. Provides a precise interface for dependable installation.

$382.34Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $382.34
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Automatic Transmission Torque Converter options

Ford Mustang Torque Converter FM9544

The TC Remanufacturing FM9544 is a standard replacement automatic transmission torque converter for select 2015-2017 Ford Mustang applications. It is built with a 11.790-inch converter diameter, low stall characteristics, and lock-up operation for the specified fitment.

Key Features

  • Fits 2015-2017 Ford Mustang, N/A
  • Part number: FM9544
  • Standard replacement torque converter
  • 11.790-inch converter diameter
  • Low stall design
  • Lock-up type: Yes
  • Hub type: Flats/Stepped
  • Mounting type: Drive plate 6 studs
  • 10mm x 1.0 mounting thread size
  • 32-spline count
  • 9.5-inch bolt circle
  • Pilot diameter: 0.824 inch; pilot length: 1.137 inch

Detailed Description

TC Remanufacturing FM9544 is an automatic transmission torque converter for the 2015-2017 Ford Mustang with the listed converter codes 02815, FR3P-AE, and N. The low stall setup supports smooth engagement characteristics, while the lock-up design helps maintain efficient drivability in the intended application. This FM9544 torque converter is specified with a 32-spline count, flats/stepped hub type, and a 6-stud drive plate mounting pattern for the correct transmission interface.

This part cross-references Ford OE-style applications using codes 02815 and FR3P-AE for the same application.

What It Is Used For

  • Replacing a worn or slipping torque converter in a 2015-2017 Ford Mustang
  • Addressing shudder or inconsistent lock-up operation
  • Restoring proper transmission coupling and launch feel
  • Correcting drivability concerns tied to converter wear or internal failure

Installation Notes and Tips

Verify converter codes 02815, FR3P-AE, and N before installation. Confirm the 9.5-inch bolt circle, 32-spline count, 10mm x 1.0 mounting thread size, and 0.824-inch pilot diameter match the transmission and flexplate setup. Always inspect the transmission fluid, cooler, and related hard parts before installing a replacement torque converter.

Quality Assurance

TC Remanufacturing supplies this FM9544 as a standard replacement torque converter for the listed Ford Mustang applications, with specifications matched to the identified fitment and converter codes.

Related reading

This part fits 3 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersNotes
2017FordMustang2.3LL4Converter Codes:02815,FR3P-AE,N
2016FordMustang2.3LL4Converter Codes:02815,FR3P-AE,N
2015FordMustang2.3LL4Converter Codes:02815,FR3P-AE,N
