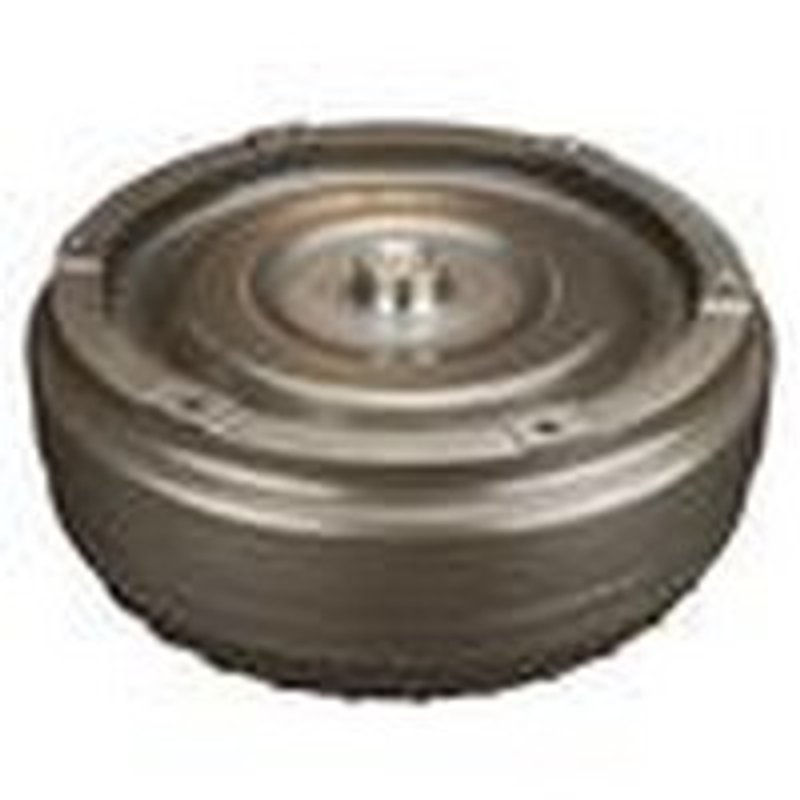

TC Remanufacturing HD1221 Automatic Transmission Torque Converter

Overview of TC Remanufacturing HD1221 Torque Converter

The TC Remanufacturing HD1221 automatic transmission torque converter is engineered for heavy-duty Chevrolet, GMC, and Hummer trucks. Designed to meet specific fitment requirements, this torque converter offers reliable performance for models like the Silverado 2500 HD and Sierra 3500 Classic.

• Billet cover construction for enhanced durability
• 13.50-inch converter diameter
• 11.50-inch bolt circle for secure mounting
• Milled flats hub type with 25 spline count
• Mounting thread size of 10mm x 1.5 with 6 threaded holes
• Stall speed range between 1700-1900 RPM
• Visible black sticker markers for easy identification
• Compatible with multiple converter codes including 221 and 29530317

Technical Details and Specifications

The HD1221 torque converter features a billet cover that improves structural integrity and heat dissipation, essential for heavy-duty applications. Its 13.50-inch diameter and 11.50-inch bolt circle ensure proper fitment and balance within the transmission system. The milled flats hub type with 25 splines provides a precise connection to the transmission input shaft, while the 10mm x 1.5 mounting thread size and six threaded holes secure the converter firmly in place. The pilot diameter measures 1.703 inches, aligning with factory specifications for Chevrolet, GMC, and Hummer models. The stall speed range of 1700-1900 RPM is optimized for towing and heavy load conditions, improving torque multiplication and vehicle responsiveness.

Compatible Vehicles and Applications

This torque converter is compatible with a range of Chevrolet, GMC, and Hummer heavy-duty trucks, including:

• Chevrolet Silverado 2500 HD and 3500 HD (including Classic models)
• GMC Sierra 2500 HD and 3500 HD (including Classic models)
• Hummer H1

It is designed to replace torque converters with converter codes such as 221, 29530317, and 29540484, ensuring a direct fit and reliable operation.

Common Issues Addressed by the HD1221 Torque Converter

• Transmission slipping under heavy load or towing conditions
• Delayed or harsh engagement during acceleration
• Overheating of the transmission due to inefficient torque transfer
• Vibration or shuddering at stall speed
• Failure of original torque converter components due to wear

Installation Notes and Tips

When installing the HD1221 torque converter, verify the converter codes to ensure compatibility with your vehicle’s transmission. Proper alignment of the milled flats hub and spline count is critical for smooth operation. Use the visible black sticker markers to confirm correct orientation during installation. Torque all mounting bolts to manufacturer specifications using the 10mm x 1.5 threaded holes. It is recommended to inspect the transmission fluid and replace it if contaminated during the installation process.

Quality Assurance and Warranty

TC Remanufacturing produces the HD1221 torque converter to meet OEM standards for durability and performance. Each unit undergoes rigorous testing to ensure proper stall speed and mechanical integrity. While specific warranty details are not provided, TC Remanufacturing products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or contact the manufacturer for exact warranty terms.
