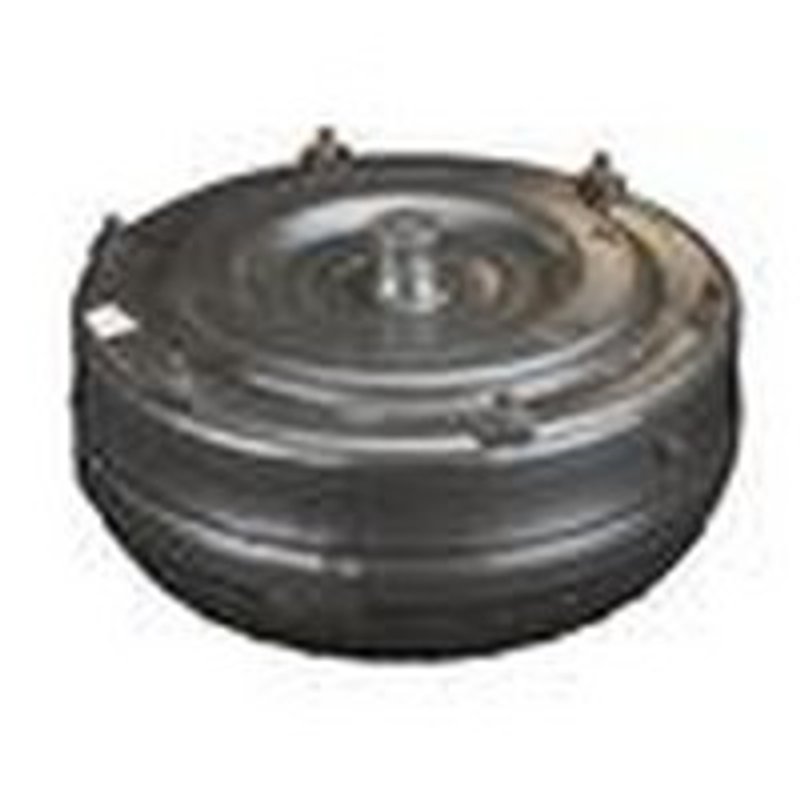

TC Remanufacturing HD3686-6-2 Automatic Transmission Torque Converter

Overview of TC Remanufacturing HD3686-6-2 Torque Converter

The TC Remanufacturing HD3686-6-2 is a durable automatic transmission torque converter designed for select Ford trucks and vans. Engineered to meet the demands of heavy-duty applications, this torque converter offers reliable performance for vehicles like the Ford F-250 Super Duty and E-350 Econoline.

• Compatible with Ford E-350 Club Wagon, Econoline, Super Duty, Excursion, F-150, F-250, and F-350 models
• Multi-disc lock-up converter type for improved efficiency
• 12.750 inch converter diameter with 11.375 inch bolt circle
• Multi clutch design for smooth torque transfer
• Stud mounting type with milled flats hub
• 31 spline count and 1.375 inch pilot diameter
• Stall speed range between 1500-1700 RPM
• Supports converter codes Ac, ad, af, ww, xx, zz

Technical Details and Specifications

The HD3686-6-2 torque converter features a 12.750 inch diameter and an 11.375 inch bolt circle, making it compatible with a range of Ford heavy-duty vehicles. Its multi-disc lock-up design enhances transmission efficiency by reducing slippage during lock-up, which helps improve fuel economy and drivability. The multi clutch system ensures smooth engagement and reliable torque transfer under load. The hub is designed with milled flats for secure fitment, and the mounting uses studs for stable installation. With a 31 spline count and a 1.375 inch pilot diameter, this torque converter matches the specifications required for Ford E-350 Econoline and F-Series trucks. The stall speed of 1500-1700 RPM is suitable for a variety of driving conditions, balancing performance and engine responsiveness.

Compatible Vehicles and Applications

This torque converter is compatible with the following Ford models:

• Ford E-350 Club Wagon and Econoline variants including Super Duty and Club Wagon
• Ford Excursion
• Ford F-150
• Ford F-250, F-250 HD, and F-250 Super Duty
• Ford F-350 and F-350 Super Duty

Common Issues Addressed by This Torque Converter

• Transmission slipping or delayed engagement
• Overheating due to inefficient torque transfer
• Reduced fuel efficiency from lock-up failure
• Shudder or vibration during acceleration
• Inconsistent stall speed affecting drivability

Installation Notes and Tips

Ensure the torque converter is properly seated on the transmission input shaft before installation. Verify that the milled flats on the hub align correctly with the transmission splines. Use the stud mounting points to secure the converter firmly to the flexplate. It is recommended to check the stall speed compatibility with your vehicle’s engine and transmission setup. Always inspect the transmission fluid and replace it if contaminated during installation.

Quality Assurance and Warranty

TC Remanufacturing provides remanufactured torque converters built to meet OEM specifications. Each unit undergoes rigorous testing to ensure performance and durability. The HD3686-6-2 comes with a limited warranty covering defects in materials and workmanship, providing confidence in its reliability for Ford E-350 and F-Series applications.
