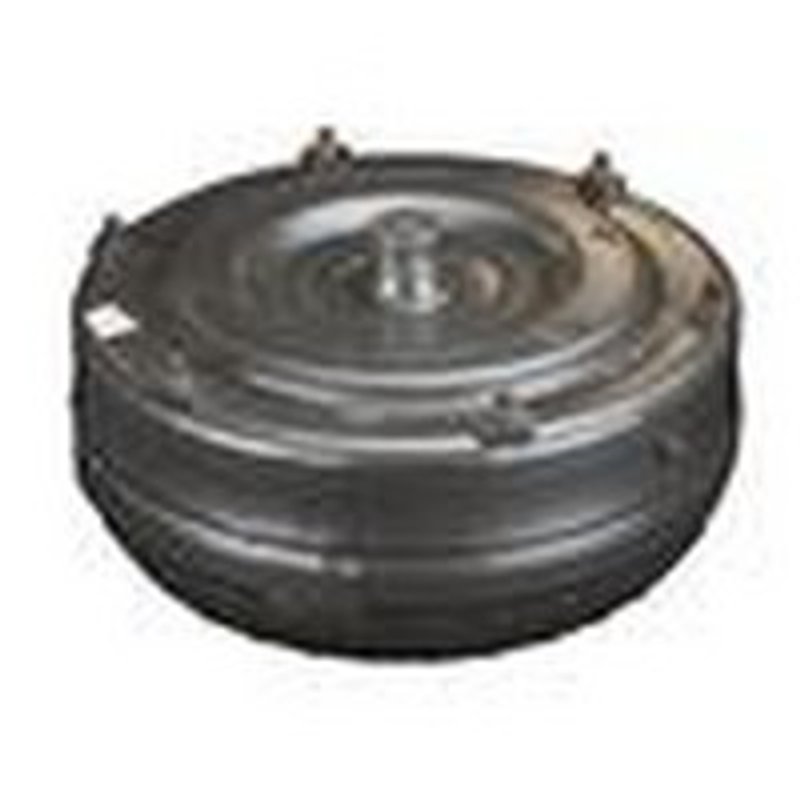

TC Remanufacturing HD3696-6-2 Automatic Transmission Torque Converter

Overview of TC Remanufacturing HD3696-6-2 Torque Converter

The TC Remanufacturing HD3696-6-2 is a heavy duty automatic transmission torque converter designed for select Ford trucks and vans. Engineered to meet the demands of vehicles like the Ford F-150 and E-350 Econoline, this torque converter offers reliable performance and durability for transmission hard part replacements.

• Bolt Circle Diameter: 11.375 inches
• Converter Diameter: 12.750 inches
• Multi disc lock-up converter type for improved efficiency
• Billet steel cover for enhanced strength
• Milled flats hub type with 31 spline count
• Stud mounting type with 1.375 inch pilot diameter
• Heavy duty construction suitable for demanding applications
• Stall speed range between 1500-1700 RPM
• Does not include ring gear

Technical Details and Features

This automatic transmission torque converter from TC Remanufacturing features a multi disc lock-up design that helps improve fuel efficiency and reduce heat generation during operation. The billet steel cover adds structural integrity, making it suitable for heavy duty use in Ford trucks such as the F-250 Super Duty and Excursion. The 31 spline milled flats hub ensures a secure fit and reliable power transfer, while the stud mounting type with an 11.375 inch bolt circle provides compatibility with specific transmission models. The stall speed of 1500-1700 RPM is optimized for smooth engagement and performance under load.

Compatible Ford Models and Applications

This torque converter is compatible with a range of Ford vehicles, including:

• Ford E-350 Club Wagon, Econoline, and Super Duty
• Ford Excursion
• Ford F-150, F-250, F-250 HD, F-250 Super Duty
• Ford F-350 and F-350 Super Duty

It is designed specifically for automatic transmissions requiring a 12.750 inch converter diameter and 11.375 inch bolt circle, making it a suitable replacement part for these models.

Common Issues Addressed by This Torque Converter

• Transmission slipping or shuddering during acceleration
• Overheating of the transmission due to inefficient torque transfer
• Lock-up clutch failure causing poor fuel economy
• Excessive stall speed affecting drivability
• Wear or damage to the torque converter hub or mounting points

Installation Notes and Tips

When installing the HD3696-6-2 torque converter, ensure the following:

• Verify compatibility with your Ford model and transmission specifications
• Inspect the transmission input shaft and seals for wear before installation
• Use proper torque specifications on the stud mounting bolts
• Check the pilot diameter fit (1.375 inches) for proper alignment
• Fill the transmission with the recommended fluid type and quantity after installation

Quality Assurance and Warranty

TC Remanufacturing produces this torque converter with heavy duty materials including a billet steel cover to ensure durability under demanding conditions. The part number HD3696-6-2 undergoes rigorous quality control to meet OEM standards. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary by application.
