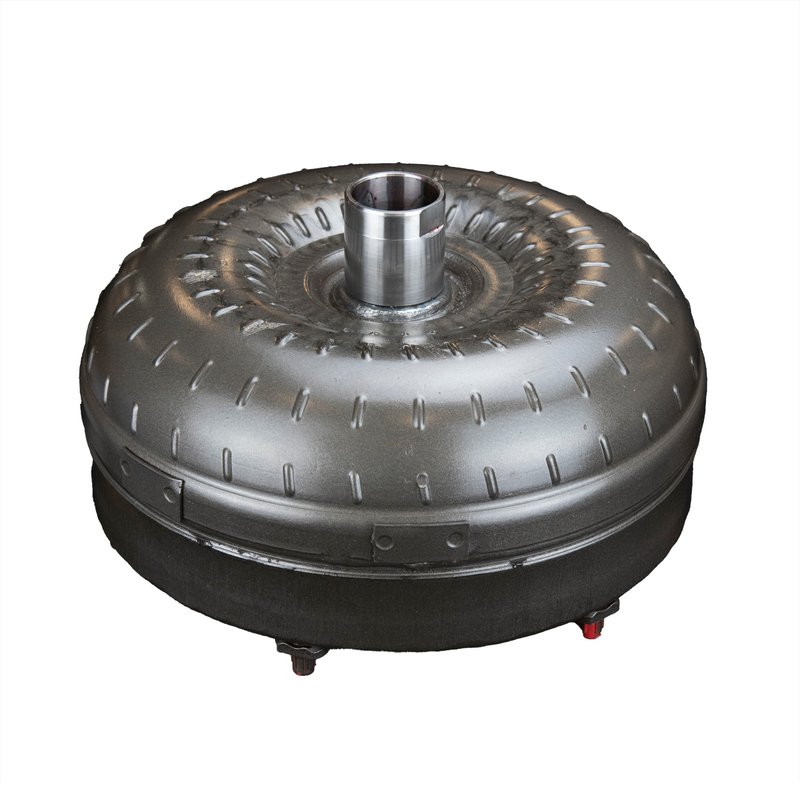

TC Remanufacturing HD3697-6-2 Automatic Transmission Torque Converter
OE Quality 60-Day Returns
TC Remanufacturing

TC Remanufacturing HD3697-6-2 Automatic Transmission Torque Converter

Brand TC Remanufacturing HD3697-6-2
Bolt Circle 11.375
Converter Codes 6mm,ww9
Converter Diameter 12.75
Converter Type Lock-up
Fitment Note Includes heavy duty billet cover
Grade Type Heavy duty
Hub Type Milled flats
Lock Up Type Yes
Mounting Stud Size 3/8 x 24
Mounting Type 6 studs
Pilot Diameter 1.375"
Spline Count 31
Stall 1300-1500
Fits Ford · 13 vehicles

Heavy-duty grade. Built for demanding use with a heavy-duty billet cover.

Lock-up design. Helps improve efficiency with a lock-up torque converter.

Milled flats. Hub design adds a precise, serviceable fit.

$633.67Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $633.67
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Automatic Transmission Torque Converter options

Heavy Duty Lock-Up Torque Converter

TC Remanufacturing HD3697-6-2 is a heavy duty automatic transmission torque converter built for Ford Super Duty diesel applications that need controlled low-speed engagement and lock-up operation. It features a 12.75-inch converter diameter, a 1300-1500 stall range, and a heavy duty billet cover for added strength in demanding use.

Compatible with 2003-2007 Ford F-250 Super Duty, 2003-2007 Ford F-350 Super Duty, and 2003-2005 Ford Excursion, this TC Remanufacturing torque converter is identified by part number HD3697-6-2 and converter codes 6MM, WW9.

  • Automatic transmission torque converter with lock-up design
  • Heavy duty grade construction with billet cover
  • 12.75-inch converter diameter
  • 1300-1500 stall speed range
  • 11.375 bolt circle with 6-stud mounting
  • 31-spline hub with milled flats
  • 1.375-inch pilot diameter
  • 3/8 x 24 mounting stud size

Fitment Details

  • Fits 2003-2007 Ford F-250 Super Duty, N/A. Fitment note: Includes Heavy Duty Billet Cover.
  • Fits 2003-2007 Ford F-350 Super Duty, N/A. Fitment note: Includes Heavy Duty Billet Cover.
  • Fits 2003-2005 Ford Excursion, N/A. Fitment note: Includes Heavy Duty Billet Cover.

What This Torque Converter Helps Address

  • Shudder or slip during lock-up operation
  • Delayed or inconsistent launch feel from the transmission
  • Excessive heat buildup from a worn converter
  • Vibration or drivability issues tied to converter wear
  • Loss of efficient power transfer in towing or heavy-duty use

Installation Notes and Tips

Verify converter codes 6MM and WW9, along with the 31-spline hub, 6-stud mounting pattern, 11.375 bolt circle, and 1.375-inch pilot diameter before installation. Confirm transmission and engine application details on the vehicle to ensure the HD3697-6-2 matches the existing setup on your Ford F-250 Super Duty, Ford F-350 Super Duty, or Ford Excursion.

Quality Assurance

TC Remanufacturing supplies this heavy duty torque converter with a billet cover and lock-up configuration for applications that require durable, precise torque transfer. Part number HD3697-6-2 is built for the listed Ford Super Duty and Excursion fitments.

Related reading

This part fits 13 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2007FordF-250 Super Duty6.0LV8N/AFitment Note:Includes Heavy Duty Billet Cover
2007FordF-350 Super Duty6.0LV8N/AFitment Note:Includes Heavy Duty Billet Cover
2006FordF-250 Super Duty6.0LV8N/AFitment Note:Includes Heavy Duty Billet Cover
2006FordF-350 Super Duty6.0LV8N/AFitment Note:Includes Heavy Duty Billet Cover
2005FordExcursion5.4LV8N/AFitment Note:Includes Heavy Duty Billet Cover
2005FordF-250 Super Duty6.0LV8N/AFitment Note:Includes Heavy Duty Billet Cover
2005FordF-350 Super Duty6.0LV8N/AFitment Note:Includes Heavy Duty Billet Cover
2004FordExcursion5.4LV8N/AFitment Note:Includes Heavy Duty Billet Cover
2004FordF-250 Super Duty6.0LV8N/AFitment Note:Includes Heavy Duty Billet Cover
2004FordF-350 Super Duty6.0LV8N/AFitment Note:Includes Heavy Duty Billet Cover
2003FordExcursion5.4LV8N/AFitment Note:Includes Heavy Duty Billet Cover
2003FordF-250 Super Duty6.0LV8N/AFitment Note:Includes Heavy Duty Billet Cover
2003FordF-350 Super Duty6.0LV8N/AFitment Note:Includes Heavy Duty Billet Cover
