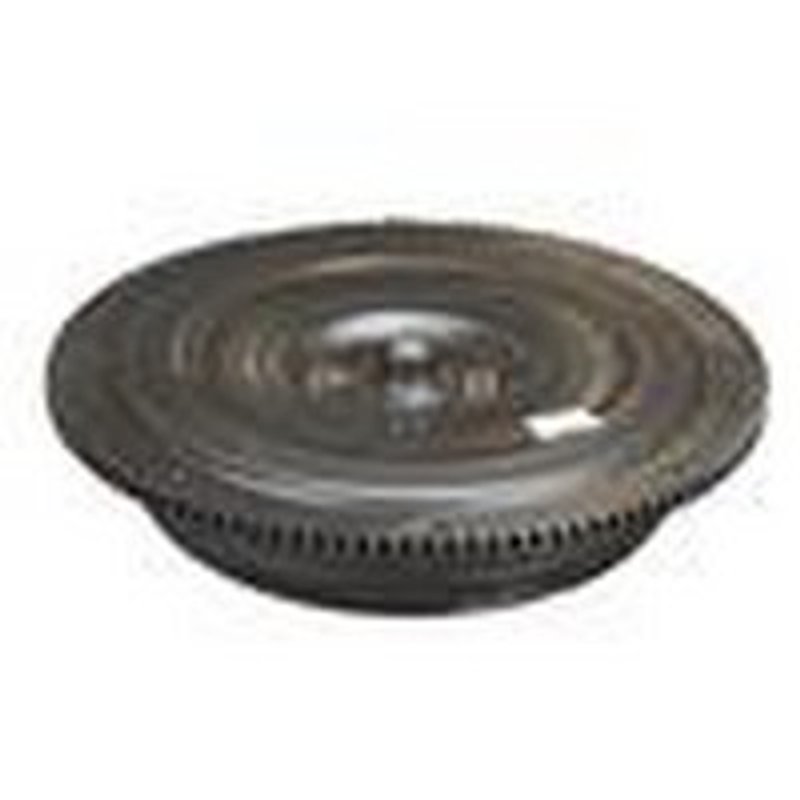

TC Remanufacturing HO24 Automatic Transmission Torque Converter

Automatic Torque Converter for Honda and Acura

TC Remanufacturing HO24 is a lock-up automatic transmission torque converter built for select Honda and Acura applications. It features a 10.000-inch converter diameter, a 10.750-inch bolt circle, and a medium stall setup for the specified fitments.

Use HO24 when you need a replacement torque converter for Honda CR-V, Honda Accord, Honda Crosstour, Acura TSX, Acura RSX, or Acura NSX applications listed below. The HO24 part number is also useful when matching converter codes and transmission interface details during a rebuild or replacement.

Key Features

• Lock-up automatic transmission torque converter
• 10.000-inch converter diameter with medium stall
• 10.750-inch bolt circle
• 38 spline pump drive hub type
• 22 spline count
• Ring gear included with 119 teeth
• 6mm x 1.00 mounting thread size
• Ring gear 8-hole mounting pattern
• Pilot diameter: 0.945 inch; pilot length: 0.650 inch
• Converter codes: 27 MS at Dimples, BAA, BCLA, BZKA, MCTA, MRMA, MZHA, MZKA, RA, RZY

Detailed Description

TC Remanufacturing HO24 is an automatic transmission torque converter engineered for specific Honda and Acura drivetrains that use the listed bolt circle, spline count, hub type, and ring gear configuration. The lock-up design supports direct drivetrain coupling in the applications shown, while the medium stall specification helps match the original transmission behavior for everyday driving and shifting characteristics. This part number is a practical reference when servicing Honda CR-V and Honda Accord models, along with Acura TSX, Acura RSX, Acura NSX, and the 2012 Honda Crosstour application noted with the 10.785-inch bolt circle and 22 spline count.

This part cross-references no additional part numbers in the provided data.

What It Helps Solve

• Transmission shudder or poor lock-up operation
• Converter slip related to worn internal clutch components
• Incorrect fitment from mismatched bolt circle or spline count
• Drivability issues after transmission service or rebuild
• Noise or vibration traced to a damaged torque converter

Installation Notes and Tips

• Verify the converter codes, bolt circle, spline count, and hub type before installation.
• Confirm the 10.750-inch bolt circle and 22 spline count against the original unit.
• Check pilot diameter and pilot length during transmission assembly.
• Inspect the flexplate, pump drive, and ring gear engagement before final installation.
• For the 2012 Honda Crosstour listing, confirm the 10.785-inch bolt circle and 22 spline count noted in the fitment data.

Quality Assurance

TC Remanufacturing supplies remanufactured transmission hard parts for service and rebuild applications. HO24 is listed with detailed dimensional and code-based specifications to support accurate part matching for Honda and Acura automatic transmission service.

Compatible Vehicles

• Fits 2002-2014 Honda CR-V, N/A
• Fits 2003-2012 Honda Accord, N/A
• Fits 2012 Honda Crosstour, N/A. Fitment note: 10.785" bolt circle, 22 spline count
• Fits 2004-2010 Acura TSX, N/A
• Fits 2002-2006 Acura RSX, N/A
• Fits 1999 Acura NSX, N/A
