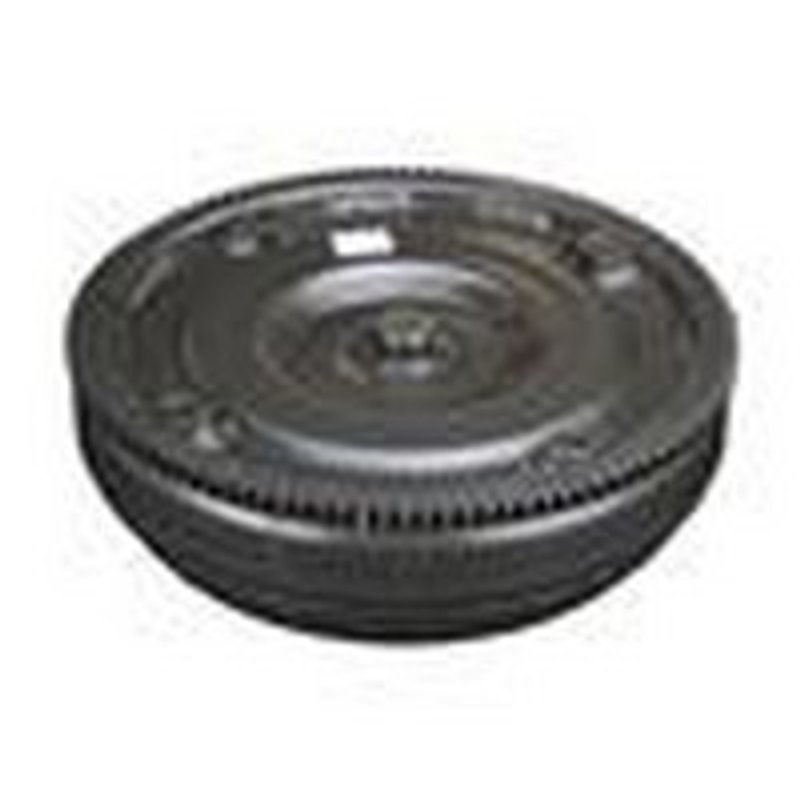

TC Remanufacturing KM10218 Automatic Transmission Torque Converter

Automatic transmission torque converter

The TC Remanufacturing KM10218 is an automatic transmission torque converter built for specific Hyundai and Kia applications. It is a lock-up design with a low stall characteristic, making it a fitment-specific replacement for vehicles that require this converter configuration.

Key features

• Lock-up torque converter design for controlled coupling in the transmission.
• Low stall specification for drivability matched to the listed applications.
• 10.250-inch converter diameter with an 8.750-inch bolt circle.
• Slotted/flanged hub type with a 1.061-inch pilot diameter and 0.420-inch pilot length.
• Includes a ring gear with 110 teeth and a 20-spline configuration.
• Four-pad mounting layout with 10mm x 1.25 mounting threads.

Fitment details

Compatible with Hyundai Tucson, Hyundai Sonata, Hyundai Santa Fe, Hyundai Azera, Kia Sorento, and Kia Sedona applications listed below. Fits 2021 Hyundai Tucson, N/A. Fits 2018-2019 Hyundai Tucson, N/A. Fits 2011-2013 Hyundai Tucson, N/A. Fits 2020 Kia Sorento, N/A. Fits 2011-2019 Kia Sorento, N/A. Fits 2014-2018 Kia Sedona, N/A. Fits 2012 Kia Sedona, N/A. Fits 2011-2017 Hyundai Azera, N/A. Fits 2017 Hyundai Sonata, N/A. Fits 2011-2014 Hyundai Sonata, N/A. Fits 2011-2012 Hyundai Santa Fe, N/A. This part number is KM10218.

What this part is used for

• Restoring torque transfer between the engine and automatic transmission.
• Addressing shudder, slip, or poor engagement tied to converter wear.
• Replacing a damaged lock-up converter in the listed Hyundai and Kia vehicles.
• Correcting drivability issues related to stall characteristics or internal converter damage.

Installation notes and tips

Verify converter codes, spline count, pilot dimensions, and mounting pad layout before installation. Confirm the transmission application matches the listed fitment and compare the removed unit to KM10218 for diameter, bolt circle, and hub style. This part number, KM10218, should be matched carefully to the transmission build and vehicle application.

Quality assurance

TC Remanufacturing supplies transmission hard parts for application-specific replacement needs. The KM10218 is built around the listed converter specifications to support proper fitment in the confirmed Hyundai and Kia applications.
