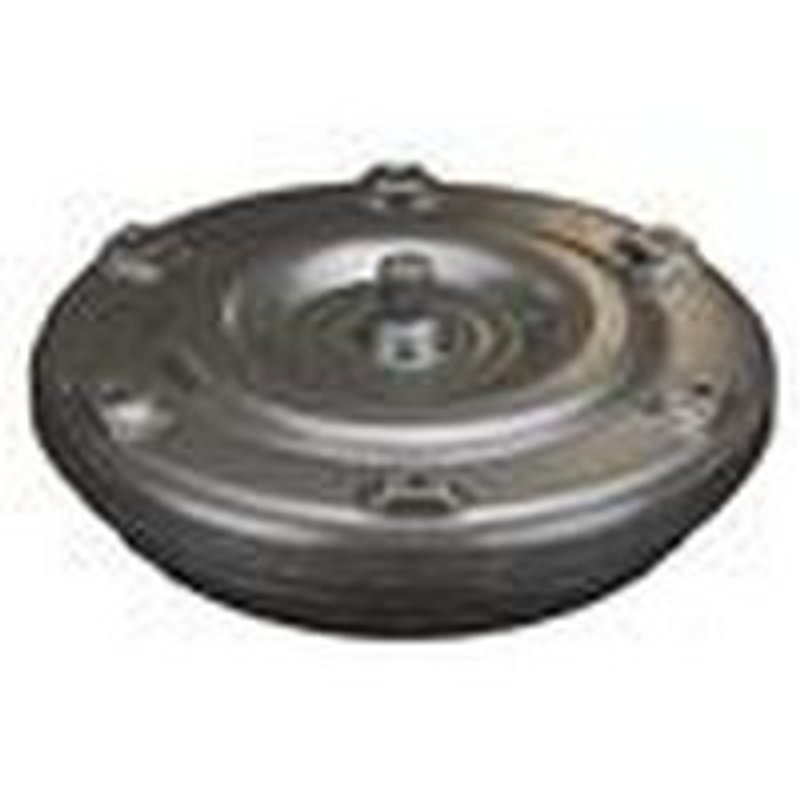

TC Remanufacturing TO32 Automatic Transmission Torque Converter

Automatic Transmission Torque Converter for Mitsubishi and Dodge

TC Remanufacturing TO32 is an automatic transmission torque converter built for specific Mitsubishi and Dodge applications. It features an 11.375-inch converter diameter, lock-up design, high stall characteristics, and a slotted hub for the listed fitments.

Key Features

• Part number: TO32
• Automatic transmission torque converter
• Lock-up converter type
• 11.375-inch converter diameter
• High stall setup
• 6-pad mounting design with 10mm x 1.25 mounting thread size
• 8.500 bolt circle
• 26-spline count
• 0.750 pilot diameter
• No ring gear
• Converter codes: 8B, 8U, 9B, Blue Circle With Blue Dot, KC18D, TGO3D

Detailed Description

TC Remanufacturing TO32 is an automatic transmission torque converter for 2000-2003 Mitsubishi Montero, 2000-2003 Mitsubishi Montero Sport, 1987-1990 Mitsubishi Van, and 1989 Dodge Raider. The lock-up design helps maintain efficient drivetrain operation in the listed vehicles, while the high stall specification supports the transmission calibration associated with these applications. If you are searching for a Mitsubishi Montero torque converter, Mitsubishi Montero Sport torque converter, or a Dodge Raider transmission torque converter, TO32 matches the listed converter codes and mounting specifications.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Uses

• Restoring proper torque converter operation in a slipping or failing automatic transmission
• Replacing a worn converter with the correct lock-up unit for the listed Mitsubishi and Dodge vehicles
• Addressing shudder, poor engagement, or inconsistent drivetrain transfer related to converter wear
• Matching the required converter code and mounting pattern during transmission service
• Supporting drivability concerns tied to incorrect stall behavior in the original unit

Installation Notes and Tips

Verify the converter code, spline count, pilot diameter, bolt circle, and 6-pad mounting pattern before installation. Confirm the transmission application against the vehicle year and model, especially for 2000-2003 Mitsubishi Montero, 2000-2003 Mitsubishi Montero Sport, 1987-1990 Mitsubishi Van, and 1989 Dodge Raider. Always inspect the transmission, cooler, and related components before installing TO32 to help prevent repeat failure.

Quality Assurance

TC Remanufacturing supplies remanufactured drivetrain components for service replacement applications. TO32 is identified by specific converter codes and dimensional specifications to support accurate part selection for the listed vehicles.
