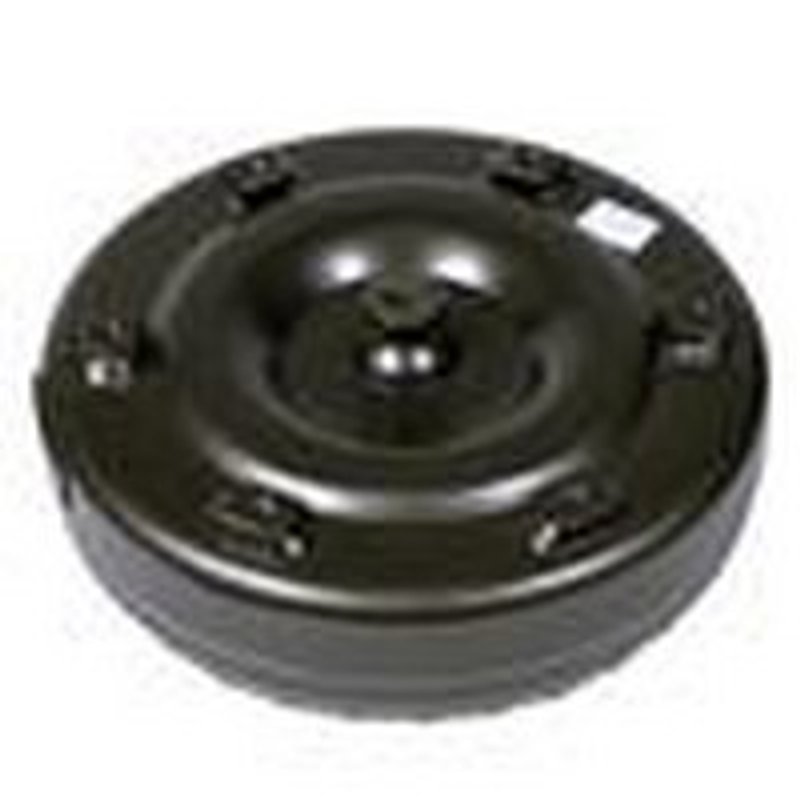

TC Remanufacturing TO39 Automatic Transmission Torque Converter

Overview of TC Remanufacturing TO39 Torque Converter

The TC Remanufacturing TO39 automatic transmission torque converter is engineered for reliable performance in select Geo, Pontiac, and Toyota vehicles. Designed with precise specifications, this lock-up torque converter supports smooth power transfer and efficient transmission operation.

• Compatible with Geo, Pontiac, and Toyota models including Corolla, Matrix, MR2, Prizm, Spectrum, Tercel, and Vibe
• Lock-up converter type for improved fuel efficiency and reduced slippage
• High stall speed for enhanced torque delivery
• 9.875-inch converter diameter with a 7.875-inch bolt circle
• Slotted hub type with 26 spline count for secure fitment
• Mounting thread size of 8mmx1.25 and 6-pad mounting type
• Pilot diameter of 1.100 inches and pilot length of 1.000 inch

Technical Specifications and Features

The TO39 torque converter features a lock-up design that helps reduce heat and improve fuel economy by locking the converter at higher speeds. Its 9.875-inch diameter and 7.875-inch bolt circle ensure compatibility with specific transmission models used in Geo, Pontiac, and Toyota vehicles. The slotted hub with 26 splines provides a secure connection to the transmission input shaft, while the 6-pad mounting type and 8mmx1.25 mounting threads offer stable installation. The high stall speed characteristic supports better torque multiplication during acceleration, making it suitable for vehicles requiring enhanced performance.

Compatible Vehicles and Applications

This torque converter is compatible with a range of Geo, Pontiac, and Toyota models, including the Corolla, Matrix, MR2, Prizm, Spectrum, Tercel, and Vibe. It is designed to meet the specific transmission requirements of these vehicles, ensuring proper fit and function when replacing the original torque converter.

• Replaces worn or damaged torque converters in automatic transmissions
• Addresses issues such as transmission slipping or overheating
• Helps resolve poor acceleration or delayed engagement
• Improves fuel efficiency by reducing converter slippage
• Restores smooth shifting and power transfer

Installation Notes and Tips

When installing the TC Remanufacturing TO39 torque converter, ensure the transmission input shaft and converter hub splines are clean and free of debris. Verify the pilot diameter and length match the transmission specifications to avoid misalignment. Properly torque the 6-pad mounting bolts to the manufacturer’s recommended specifications using the 8mmx1.25 thread size. It is advisable to replace transmission fluid and filter during installation to maintain optimal transmission performance.

Quality Assurance and Warranty

TC Remanufacturing provides this torque converter with quality standards that meet OEM specifications. Each unit undergoes thorough inspection to ensure dimensional accuracy and functional reliability. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary by region or application.
